Butterfly valve threaded/welding ends (REF. 2942E) with double acting stainless steel cylindrical pneumatic actuator. Threaded/welding ends according to DIN 11851. Body in stainless steel AISI 304. Elastomer: EPDM. Manual operation, 3 positions. Reduced weight and dimensions. Easy cleaning and assembly. Easy automation. Sanitary polishing (Ra ≤ 0.8 μm). Low torque. Maximum working pressure: 10 bar. Maximum working temperature: 120ºC.
| REFERENCE | DN | WEIGHT |
|---|---|---|
| 5942E 06 49 | 25 | 3.93 kg |
| 5942E 07 49 | 32 | 3.90 kg |
| 5942E 08 49 | 40 | 4.13 kg |
| 5942E 09 49 | 50 | 4.73 kg |
| 5942E 10 49 | 65 | 5.35 kg |
| 5942E 11 49 | 80 | 5.80 kg |
| 5942E 12 49 | 100 | 6.90 kg |

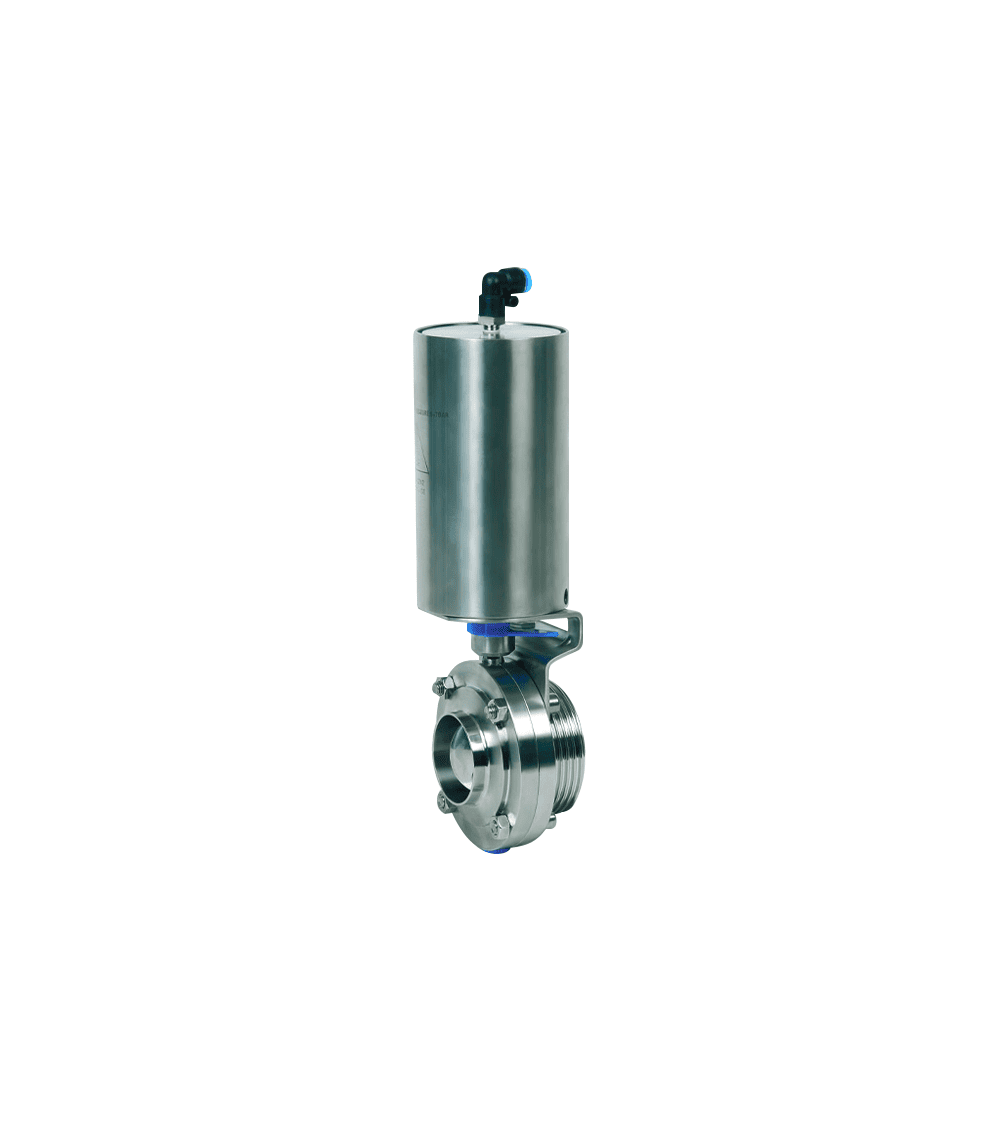

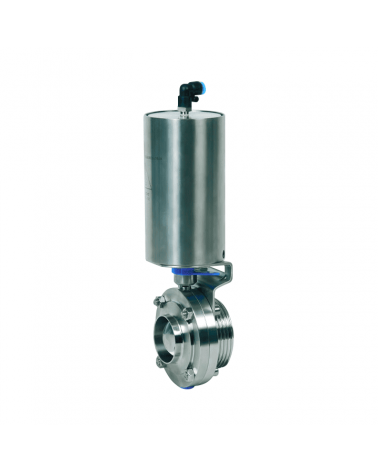

Butterfly valve threaded/welded ends with double-acting pneumatic actuator
Butterfly valve threaded/welding ends (REF. 2942E) with double acting stainless steel cylindrical pneumatic actuator. Threaded/welding ends according to DIN 11851. Body in stainless steel AISI 304. Elastomer: EPDM. Manual operation, 3 positions. Reduced weight and dimensions. Easy cleaning and assembly. Easy automation. Sanitary polishing (Ra ≤ 0.8 μm). Low torque. Maximum working pressure: 10 bar. Maximum working temperature: 120ºC.
| REFERENCE | DN | WEIGHT |
|---|---|---|
| 5942E 06 49 | 25 | 3.93 kg |
| 5942E 07 49 | 32 | 3.90 kg |
| 5942E 08 49 | 40 | 4.13 kg |
| 5942E 09 49 | 50 | 4.73 kg |
| 5942E 10 49 | 65 | 5.35 kg |
| 5942E 11 49 | 80 | 5.80 kg |
| 5942E 12 49 | 100 | 6.90 kg |
€554.16
Tax excluded
