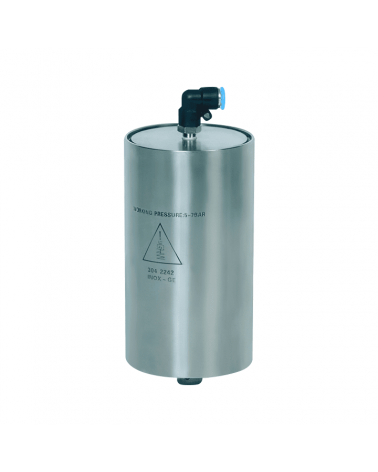

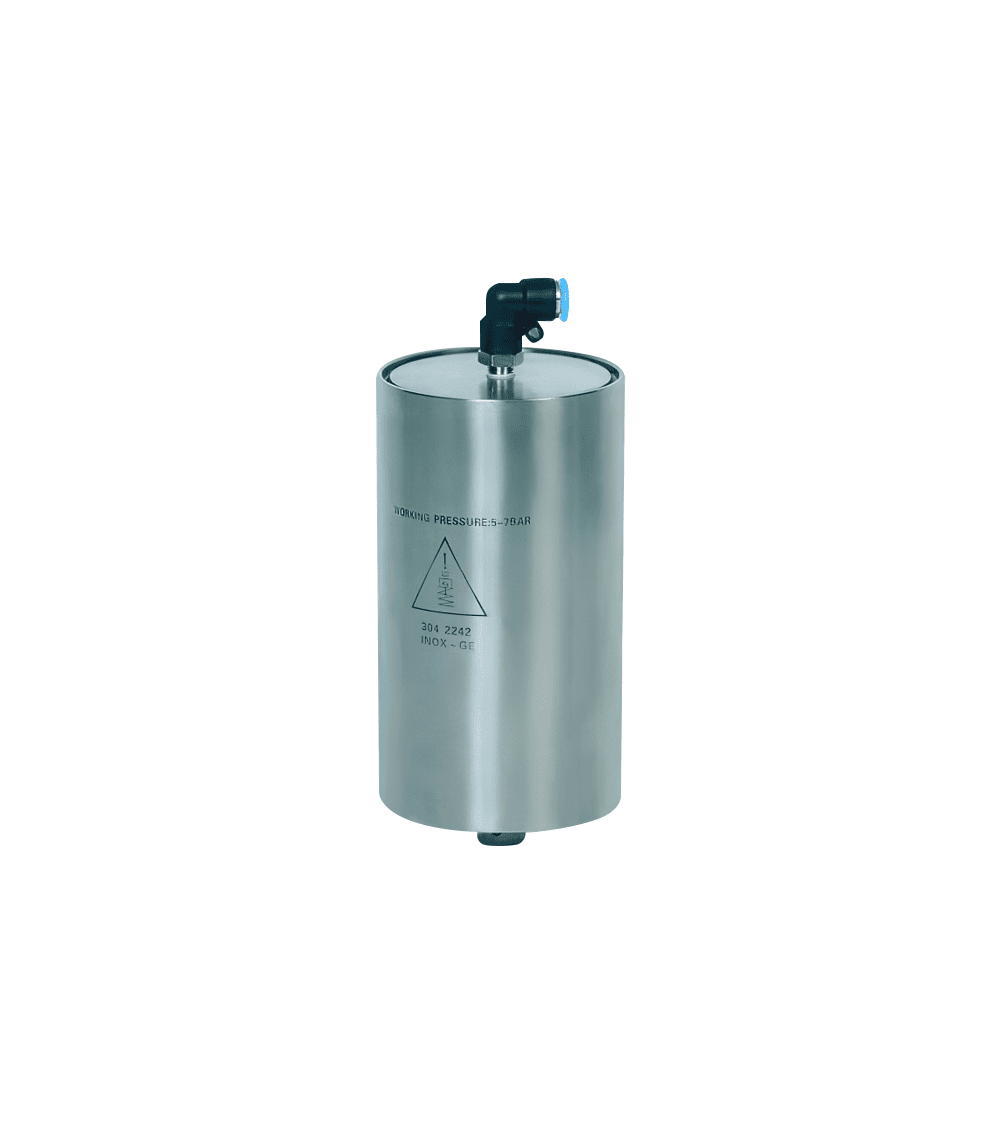

Double acting pneumatic actuator for butterfly valves of the sanitary line. Body material in AISI 304 stainless steel. Working pressure: 5 / 7 bar. Double acting action. Turn angle 90º. Sanitary polish.
| REFERENCE | SIZE | AIR CONSUMPTION | WEIGHT |
|---|---|---|---|
| 2949 | 1" - 4" | 532 ml / cycle | 2.54 kg |
Double acting pneumatic actuator for butterfly valves
Double acting pneumatic actuator for butterfly valves of the sanitary line. Body material in AISI 304 stainless steel. Working pressure: 5 / 7 bar. Double acting action. Turn angle 90º. Sanitary polish.
| REFERENCE | SIZE | AIR CONSUMPTION | WEIGHT |
|---|---|---|---|
| 2949 | 1" - 4" | 532 ml / cycle | 2.54 kg |
€437.46
Tax excluded
