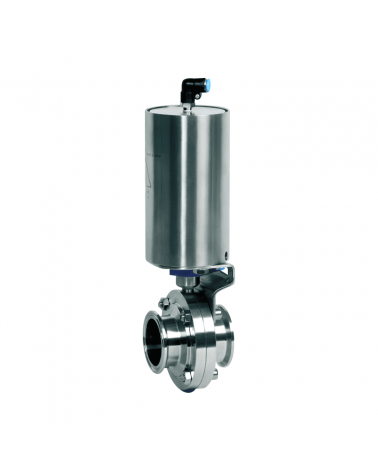

Butterfly valve Clamp ends (REF. 2940) with double acting stainless steel cylindrical pneumatic actuator. Clamp ends in inches (BS 4825-3). AISI 316L stainless steel body. EPDM elastomer. Manual operation, three positions. Reduced weight and dimensions. Easy cleaning and assembly. Easy automation. Sanitary polishing (Ra ≤ 0.8 μm). Low torque. Maximum working pressure: 10 bar. Maximum working temperature: 120ºC.
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 5940 06 49 | 1" | 4 kg |
| 5940 08 49 | 1 1/2" | 4 kg |
| 5940 09 49 | 2" | 4.50 kg |
| 5940 10 49 | 2 1/2" | 5.44 kg |
| 5940 11 49 | 3" | 5.25 kg |
| 5940 12 49 | 4" | 6.25 kg |

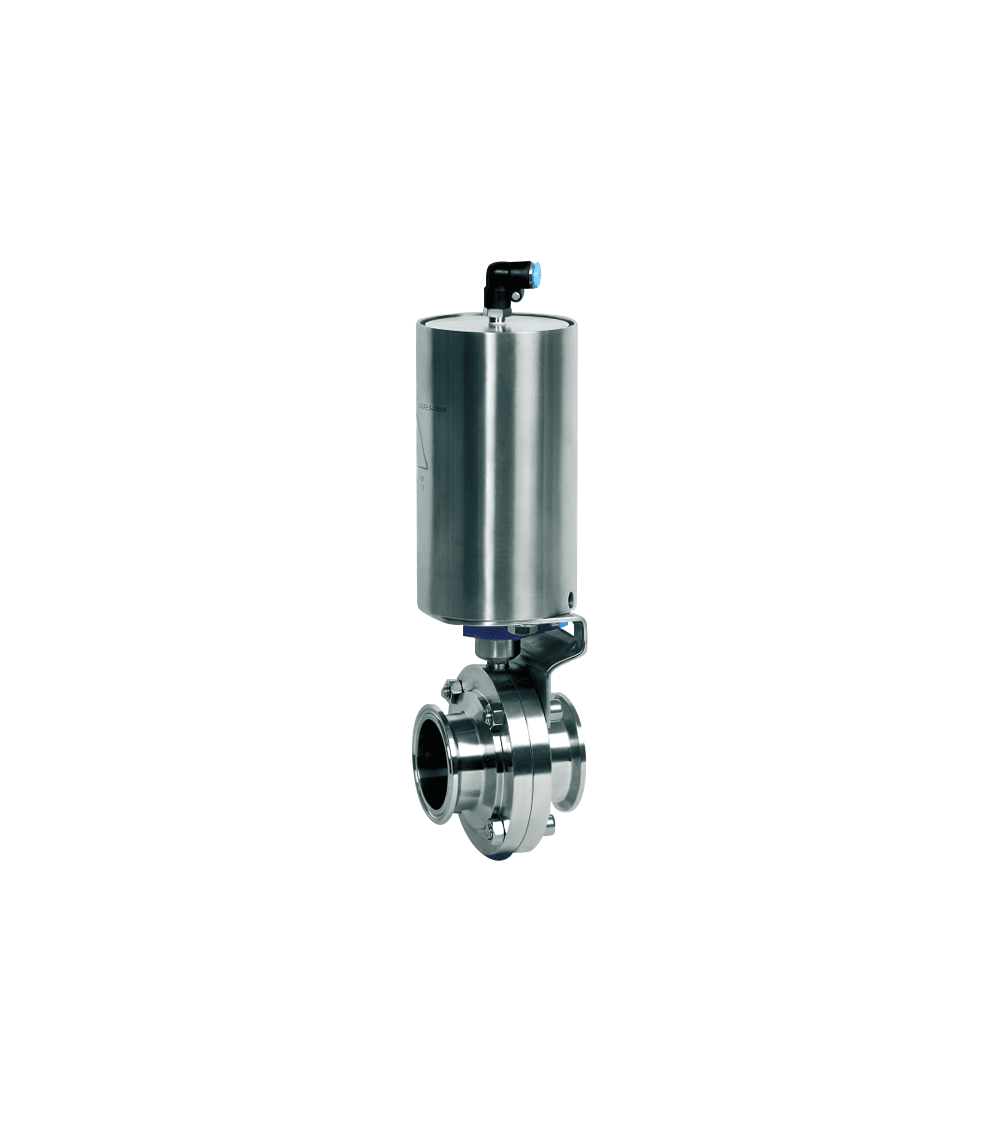

Butterfly valve Clamp ends with double-acting pneumatic actuator
Butterfly valve Clamp ends (REF. 2940) with double acting stainless steel cylindrical pneumatic actuator. Clamp ends in inches (BS 4825-3). AISI 316L stainless steel body. EPDM elastomer. Manual operation, three positions. Reduced weight and dimensions. Easy cleaning and assembly. Easy automation. Sanitary polishing (Ra ≤ 0.8 μm). Low torque. Maximum working pressure: 10 bar. Maximum working temperature: 120ºC.
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 5940 06 49 | 1" | 4 kg |
| 5940 08 49 | 1 1/2" | 4 kg |
| 5940 09 49 | 2" | 4.50 kg |
| 5940 10 49 | 2 1/2" | 5.44 kg |
| 5940 11 49 | 3" | 5.25 kg |
| 5940 12 49 | 4" | 6.25 kg |
€591.27
Tax excluded
