Needle valve made of stainless steel: dimensions less than or equal to 1" according to ASTM A479-04 (grade 316); dimensions equal or larger than 1 1/4" according to ASTM A182 F316. Female threaded ends according to ISO 228/1. Stem packing PTFE + graphite. Maximum working pressure: 3,000 psi. Pressure/temperature range: 1/4" to 1/2" = 3,000 psi/260ºC; 3/4" to 1 1/4" = 3,000 psi/240ºC; 1 1/2" to 2" = 3,000 psi/200ºC.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2223 02 | 1/4" | 3.000 psi | 0.32 kg |
| 2223 03 | 3/8" | 3.000 psi | 0.42 kg |
| 2223 04 | 1/2" | 3.000 psi | 0.57 kg |
| 2223 05 | 3/4" | 3.000 psi | 0.83 kg |
| 2223 06 | 1" | 3.000 psi | 1.03 kg |
| 2223 07 | 1 1/4" | 3.000 psi | 1.92 kg |
| 2223 08 | 1 1/2" | 3.000 psi | 2.79 kg |
| 2223 09 | 2" | 3.000 psi | 4.75 kg |

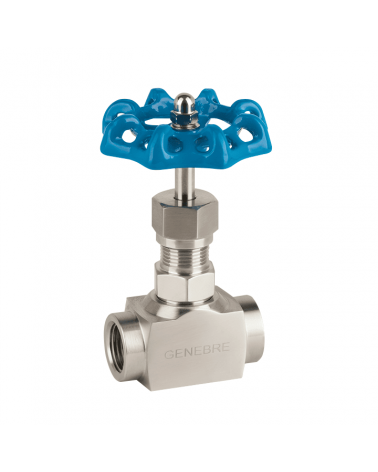

Needle valve (3,000 lbs) made of stainless steel
Needle valve made of stainless steel: dimensions less than or equal to 1" according to ASTM A479-04 (grade 316); dimensions equal or larger than 1 1/4" according to ASTM A182 F316. Female threaded ends according to ISO 228/1. Stem packing PTFE + graphite. Maximum working pressure: 3,000 psi. Pressure/temperature range: 1/4" to 1/2" = 3,000 psi/260ºC; 3/4" to 1 1/4" = 3,000 psi/240ºC; 1 1/2" to 2" = 3,000 psi/200ºC.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2223 02 | 1/4" | 3.000 psi | 0.32 kg |
| 2223 03 | 3/8" | 3.000 psi | 0.42 kg |
| 2223 04 | 1/2" | 3.000 psi | 0.57 kg |
| 2223 05 | 3/4" | 3.000 psi | 0.83 kg |
| 2223 06 | 1" | 3.000 psi | 1.03 kg |
| 2223 07 | 1 1/4" | 3.000 psi | 1.92 kg |
| 2223 08 | 1 1/2" | 3.000 psi | 2.79 kg |
| 2223 09 | 2" | 3.000 psi | 4.75 kg |
€50.81
Tax excluded
