Needle valve made of carbon steel ASTM A105. Female threaded ends according to ISO 228/1. Stem packing PTFE + graphite. Maximum working pressure: 3,000 psi. Pressure/temperature range: 1/4" to 1/2" = 3,000 psi/260ºC; 3/4" to 1" = 3,000 psi/240ºC.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2221 02 | 1/4" | 3,000 psi | 0.32 kg |
| 2221 03 | 3/8" | 3,000 psi | 0.41 kg |
| 2221 04 | 1/2" | 3,000 psi | 0.56 kg |
| 2221 05 | 3/4" | 3,000 psi | 0.81 kg |
| 2221 06 | 1" | 3,000 psi | 1.02 kg |

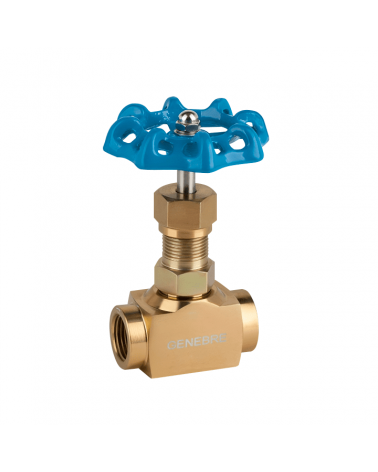

Needle valve (3,000 lbs) made of carbon steel
Needle valve made of carbon steel ASTM A105. Female threaded ends according to ISO 228/1. Stem packing PTFE + graphite. Maximum working pressure: 3,000 psi. Pressure/temperature range: 1/4" to 1/2" = 3,000 psi/260ºC; 3/4" to 1" = 3,000 psi/240ºC.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2221 02 | 1/4" | 3,000 psi | 0.32 kg |
| 2221 03 | 3/8" | 3,000 psi | 0.41 kg |
| 2221 04 | 1/2" | 3,000 psi | 0.56 kg |
| 2221 05 | 3/4" | 3,000 psi | 0.81 kg |
| 2221 06 | 1" | 3,000 psi | 1.02 kg |
€27.98
Tax excluded
