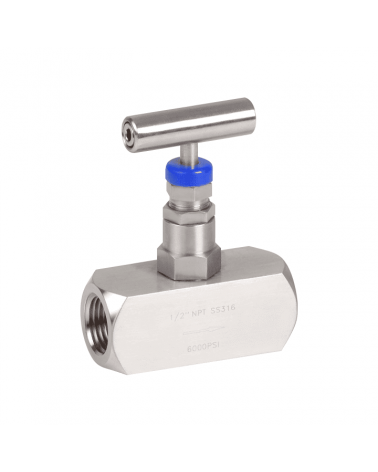

Needle valve made of stainless steel ASTM A479 (grade 316). Female threaded ends according to ISO 228/1. Maximum working pressure: 6,000 psi at 38ºC. Working temperature: -54 +232ºC. Safety bonnet lock prevents accidental loosening. Plug design with back sealing to protect the stoppage when the valve is fully open.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2225 02 | 1/4" | 6.000 psi | 0.38 kg |
| 2225 03 | 3/8" | 6.000 psi | 0.36 kg |
| 2225 04 | 1/2" | 6.000 psi | 0.44 kg |
| 2225 05 | 3/4" | 6.000 psi | 0.80 kg |
| 2225 06 | 1" | 6.000 psi | 1.12 kg |

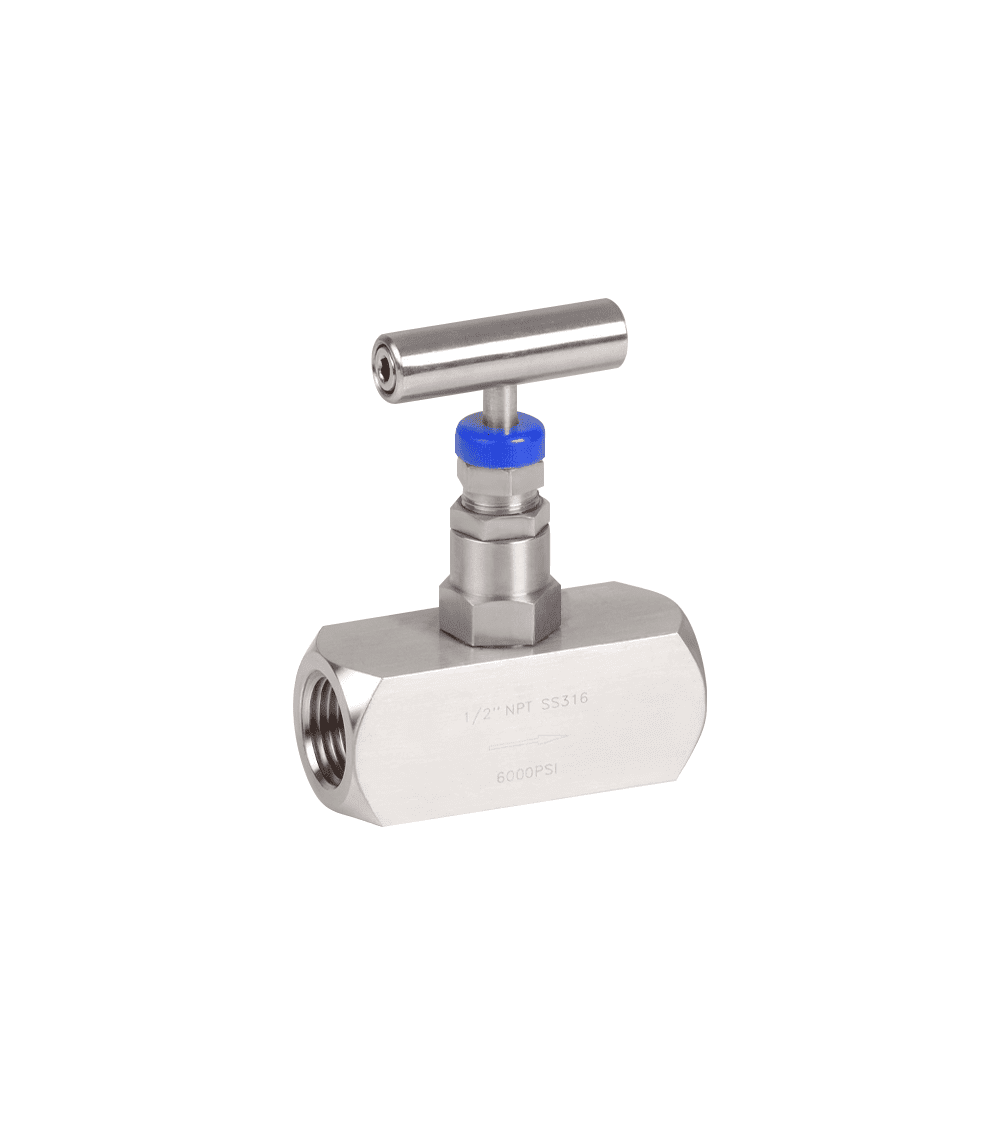

Needle valve (6,000 lbs) made of stainless steel
Needle valve made of stainless steel ASTM A479 (grade 316). Female threaded ends according to ISO 228/1. Maximum working pressure: 6,000 psi at 38ºC. Working temperature: -54 +232ºC. Safety bonnet lock prevents accidental loosening. Plug design with back sealing to protect the stoppage when the valve is fully open.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2225 02 | 1/4" | 6.000 psi | 0.38 kg |
| 2225 03 | 3/8" | 6.000 psi | 0.36 kg |
| 2225 04 | 1/2" | 6.000 psi | 0.44 kg |
| 2225 05 | 3/4" | 6.000 psi | 0.80 kg |
| 2225 06 | 1" | 6.000 psi | 1.12 kg |
€63.06
Tax excluded
