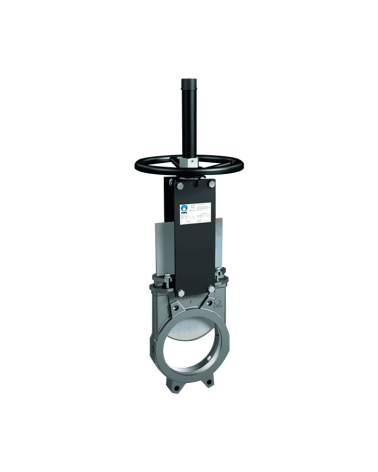

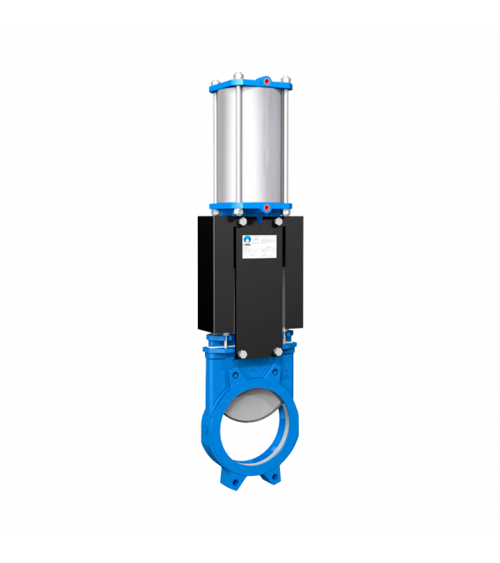

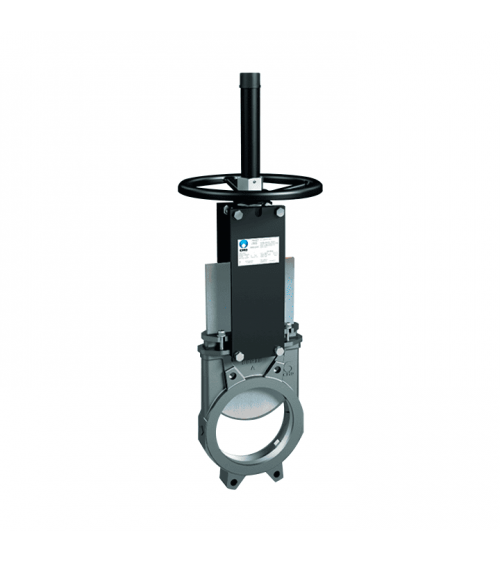

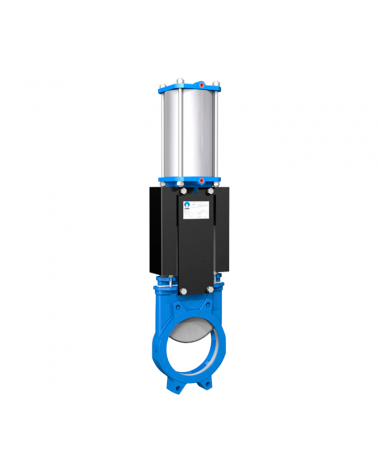

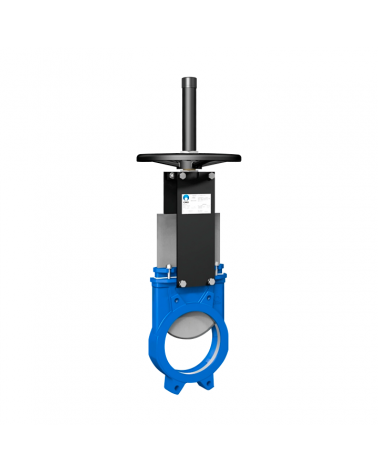

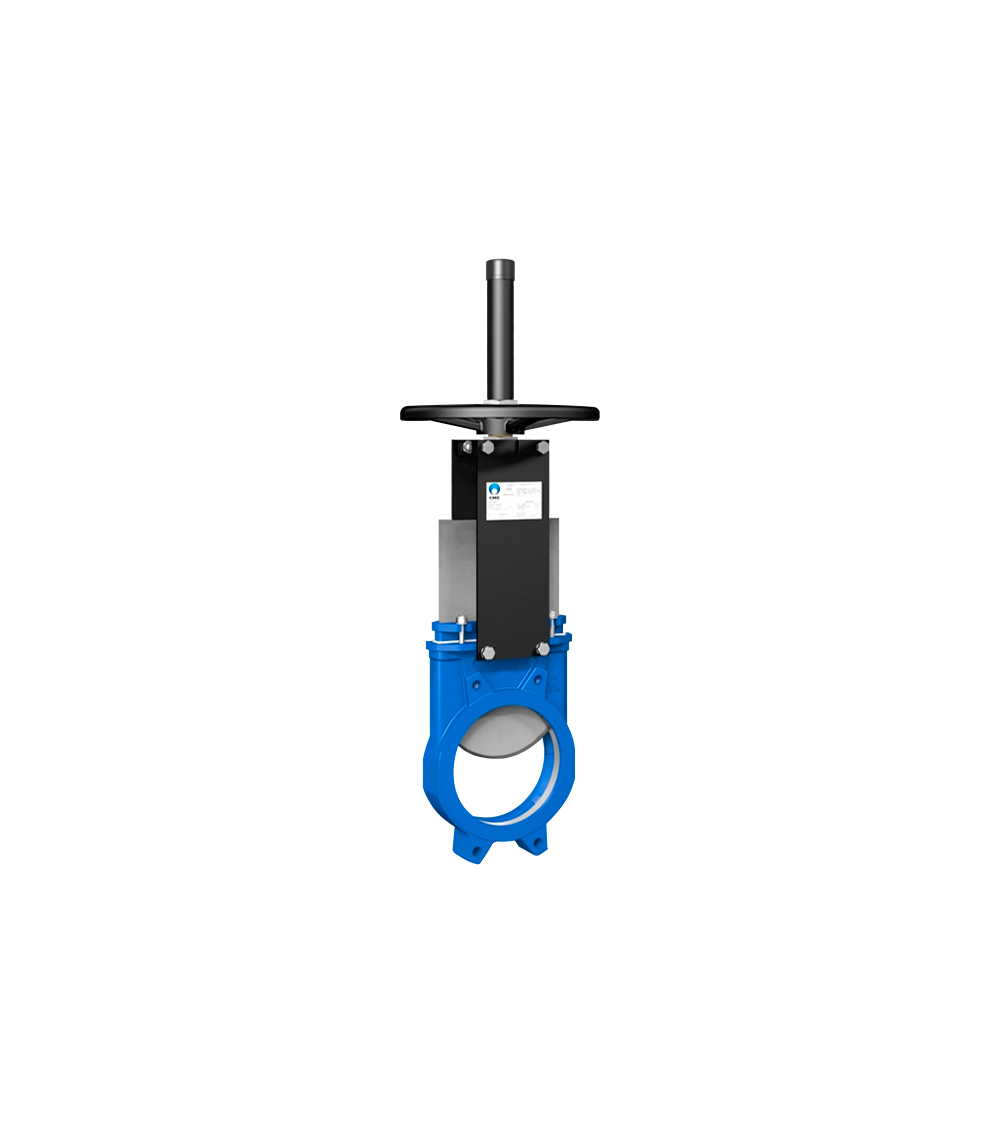

One-way valve with one-piece cast iron body with slides to support the chopper and closing wedges. The inside of the body is conical in shape, which provides more space. This allows the solids stored inside the valve to be easily released when the valve is closed. Designed with full bore to provide high flow rates with minimal pressure drop. The internal body design prevents solids storage in the closure area. Stainless steel cutter. High flow rates with low pressure drop. Multiple materials of construction, seals and gaskets available. Incorporates an arrow on the body indicating the direction of pressure. Manual (handwheel, lever, handwheel reducer) and actuated (pneumatic, hydraulic and electric actuators) according to the requirements of the application. Flange drilling EN 1092 PN10, others (ASME B16.5 (class 150), PN6, PN16, PN25, BS "D" and "E", JIS10J) on request.
| REFERENCE | SIZE | PRESSURE |
|---|---|---|
| 0900605.50 | DN 50 | 10 bar |
| 0900605.65 | DN 65 | 10 bar |
| 0900605.80 | DN 80 | 10 bar |
| 0900605.100 | DN 100 | 10 bar |
| 0900605.125 | DN 125 | 10 bar |
| 0900605.150 | DN 150 | 10 bar |
| 0900605.200 | DN 200 | 10 bar |
| 0900605.250 | DN 250 | 10 bar |
| 0900605.300 | DN 300 | 6 bar |
| 0900605.350 | DN 350 | 6 bar |
| 0900605.400 | DN 400 | 6 bar |
| 0900605.450 | DN 450 | 5 bar |
| 0900605.500 | DN 500 | 4 bar |
| 0900605.600 | DN 600 | 4 bar |
One-way Wafer knife gate valve
One-way valve with one-piece cast iron body with slides to support the chopper and closing wedges. The inside of the body is conical in shape, which provides more space. This allows the solids stored inside the valve to be easily released when the valve is closed. Designed with full bore to provide high flow rates with minimal pressure drop. The internal body design prevents solids storage in the closure area. Stainless steel cutter. High flow rates with low pressure drop. Multiple materials of construction, seals and gaskets available. Incorporates an arrow on the body indicating the direction of pressure. Manual (handwheel, lever, handwheel reducer) and actuated (pneumatic, hydraulic and electric actuators) according to the requirements of the application. Flange drilling EN 1092 PN10, others (ASME B16.5 (class 150), PN6, PN16, PN25, BS "D" and "E", JIS10J) on request.
| REFERENCE | SIZE | PRESSURE |
|---|---|---|
| 0900605.50 | DN 50 | 10 bar |
| 0900605.65 | DN 65 | 10 bar |
| 0900605.80 | DN 80 | 10 bar |
| 0900605.100 | DN 100 | 10 bar |
| 0900605.125 | DN 125 | 10 bar |
| 0900605.150 | DN 150 | 10 bar |
| 0900605.200 | DN 200 | 10 bar |
| 0900605.250 | DN 250 | 10 bar |
| 0900605.300 | DN 300 | 6 bar |
| 0900605.350 | DN 350 | 6 bar |
| 0900605.400 | DN 400 | 6 bar |
| 0900605.450 | DN 450 | 5 bar |
| 0900605.500 | DN 500 | 4 bar |
| 0900605.600 | DN 600 | 4 bar |
