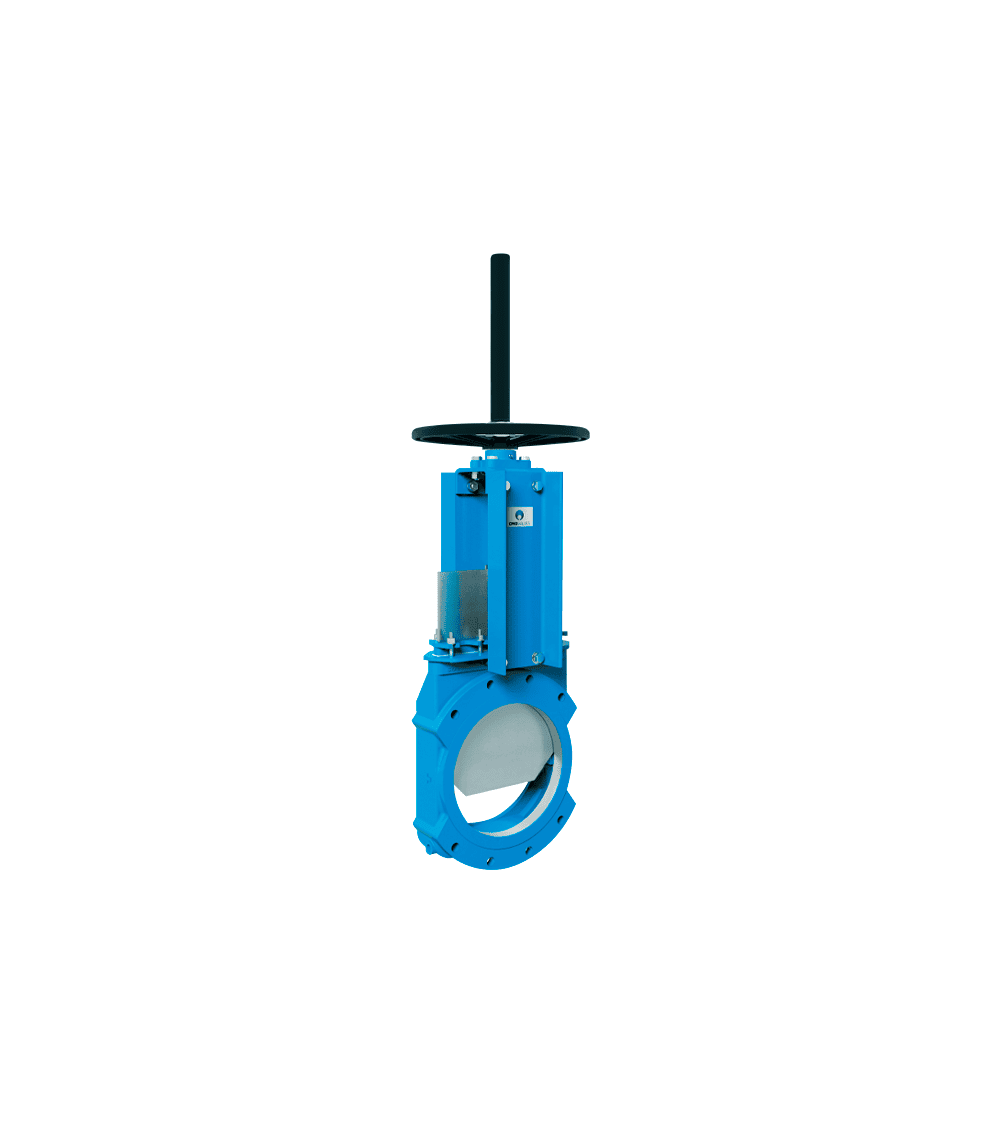

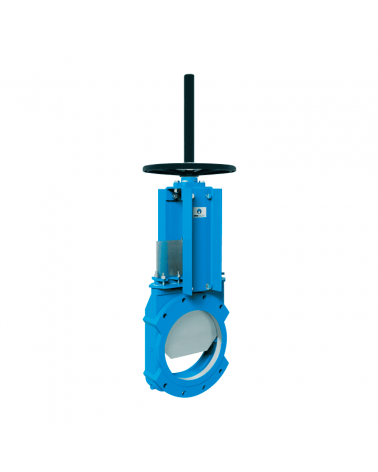

Unidirectional Wafer knife gate valve

One-piece extra wide cast iron body with slides to support the chopper and closing wedges. Provides high flow rates with low pressure drop. Multiple materials of construction, seals and gaskets available. Stainless steel gate. Incorporates an arrow on the body indicating the direction of pressure. Body insuflations. Flange drilling EN 1092 PN10 or ANSI B 16.5 (class 150).

REFERENCESIZEPRESSURE
900F0050 DN 50 10 bar
900F0065 DN 65 10 bar
900F0080 DN 80 10 bar
900F0100 DN 100 10 bar
900F0125 DN 125 10 bar
900F0150 DN 150 10 bar
900F0200 DN 200 10 bar
900F0250 DN 250 10 bar
900F0300 DN 300 6 bar
900F0350 DN 350 6 bar
900F0400 DN 400 6 bar
900F0450 DN 450 5 bar
900F0500 DN 500 4 bar
900F0600 DN 600 4 bar
900F0700 DN 700 3 bar
900F0800 DN 800 3 bar
900F0900 DN 900 3 bar
900F1000 DN 1000 3 bar
900F1200 DN 1200 3 bar

TECHNICAL DATA

Quantity

You might also like

Quick view
One-way Wafer knife gate valve

One-way valve with one-piece cast iron body with slides to support the chopper and closing wedges. The inside of the body is conical in shape,...
Quick view

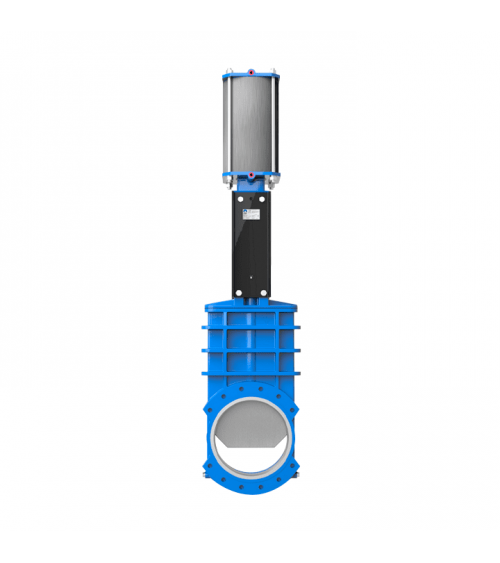

Unidirectional Wafer knife gate valve
