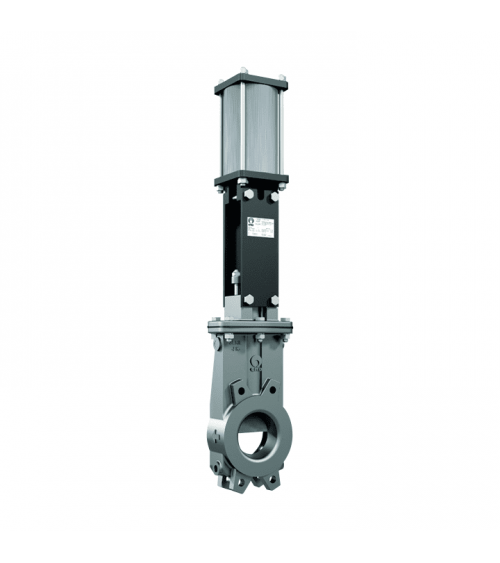

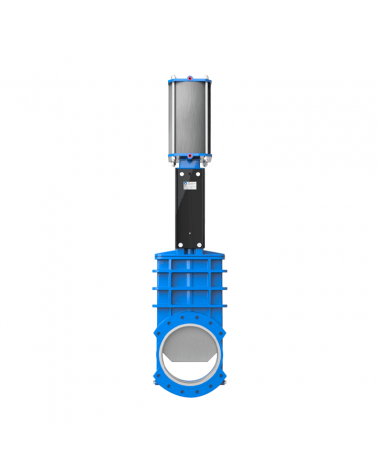

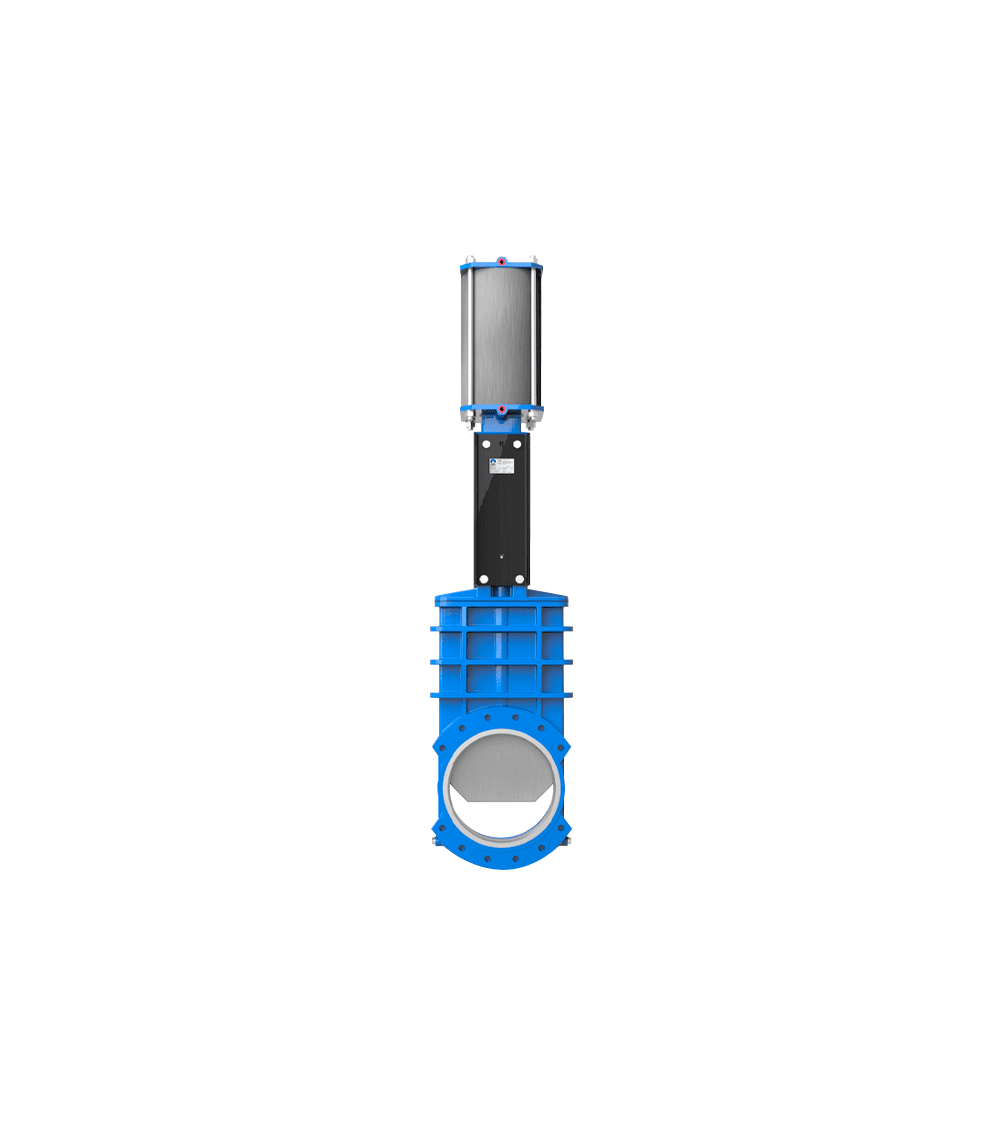

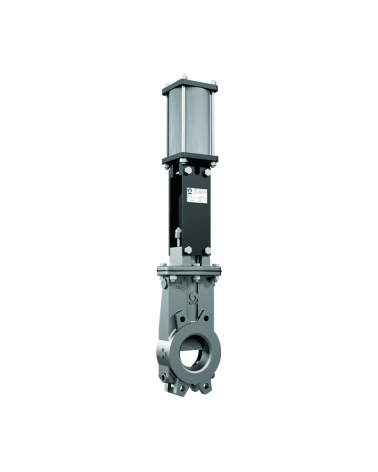

One-way knife gate valve in Wafer design. Extra wide, one-piece cast iron body with internal slides for optimum sliding of the chopper during operation and locking wedges. Multiple materials of construction, seals and gaskets available. Stainless steel chopper. Incorporates an arrow on the body indicating the direction of pressure. Body insuflations. Flange drilling EN 1092 PN10 or ANSI B 16.5 (class 150).
| REFERENCE | SIZE | PRESSURE |
|---|---|---|
| 900FK0050 | DN 50 | 10 bar |
| 900FK0065 | DN 65 | 10 bar |
| 900FK0080 | DN 80 | 10 bar |
| 900FK0100 | DN 100 | 10 bar |
| 900FK0125 | DN 125 | 10 bar |
| 900FK0150 | DN 150 | 10 bar |
| 900FK0200 | DN 200 | 10 bar |
| 900FK0250 | DN 250 | 10 bar |
| 900FK0300 | DN 300 | 6 bar |
| 900FK0350 | DN 350 | 6 bar |
| 900FK0400 | DN 400 | 6 bar |
| 900FK0450 | DN 450 | 5 bar |
| 900FK0500 | DN 500 | 4 bar |
| 900FK0600 | DN 600 | 4 bar |
| 900FK0700 | DN 700 | 3 bar |
| 900FK0800 | DN 800 | 3 bar |
| 900FK0900 | DN 900 | 3 bar |
| 900FK1000 | DN 1000 | 3 bar |
| 900FK1200 | DN 1200 | 3 bar |
Unidirectional Wafer knife gate valve
One-way knife gate valve in Wafer design. Extra wide, one-piece cast iron body with internal slides for optimum sliding of the chopper during operation and locking wedges. Multiple materials of construction, seals and gaskets available. Stainless steel chopper. Incorporates an arrow on the body indicating the direction of pressure. Body insuflations. Flange drilling EN 1092 PN10 or ANSI B 16.5 (class 150).
| REFERENCE | SIZE | PRESSURE |
|---|---|---|
| 900FK0050 | DN 50 | 10 bar |
| 900FK0065 | DN 65 | 10 bar |
| 900FK0080 | DN 80 | 10 bar |
| 900FK0100 | DN 100 | 10 bar |
| 900FK0125 | DN 125 | 10 bar |
| 900FK0150 | DN 150 | 10 bar |
| 900FK0200 | DN 200 | 10 bar |
| 900FK0250 | DN 250 | 10 bar |
| 900FK0300 | DN 300 | 6 bar |
| 900FK0350 | DN 350 | 6 bar |
| 900FK0400 | DN 400 | 6 bar |
| 900FK0450 | DN 450 | 5 bar |
| 900FK0500 | DN 500 | 4 bar |
| 900FK0600 | DN 600 | 4 bar |
| 900FK0700 | DN 700 | 3 bar |
| 900FK0800 | DN 800 | 3 bar |
| 900FK0900 | DN 900 | 3 bar |
| 900FK1000 | DN 1000 | 3 bar |
| 900FK1200 | DN 1200 | 3 bar |
