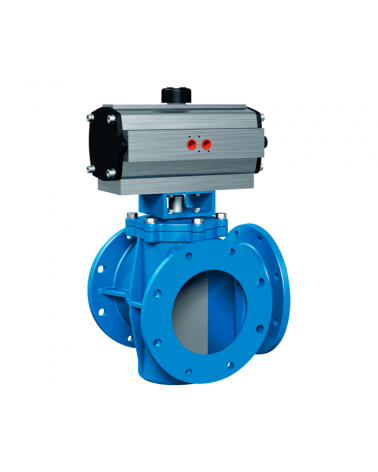

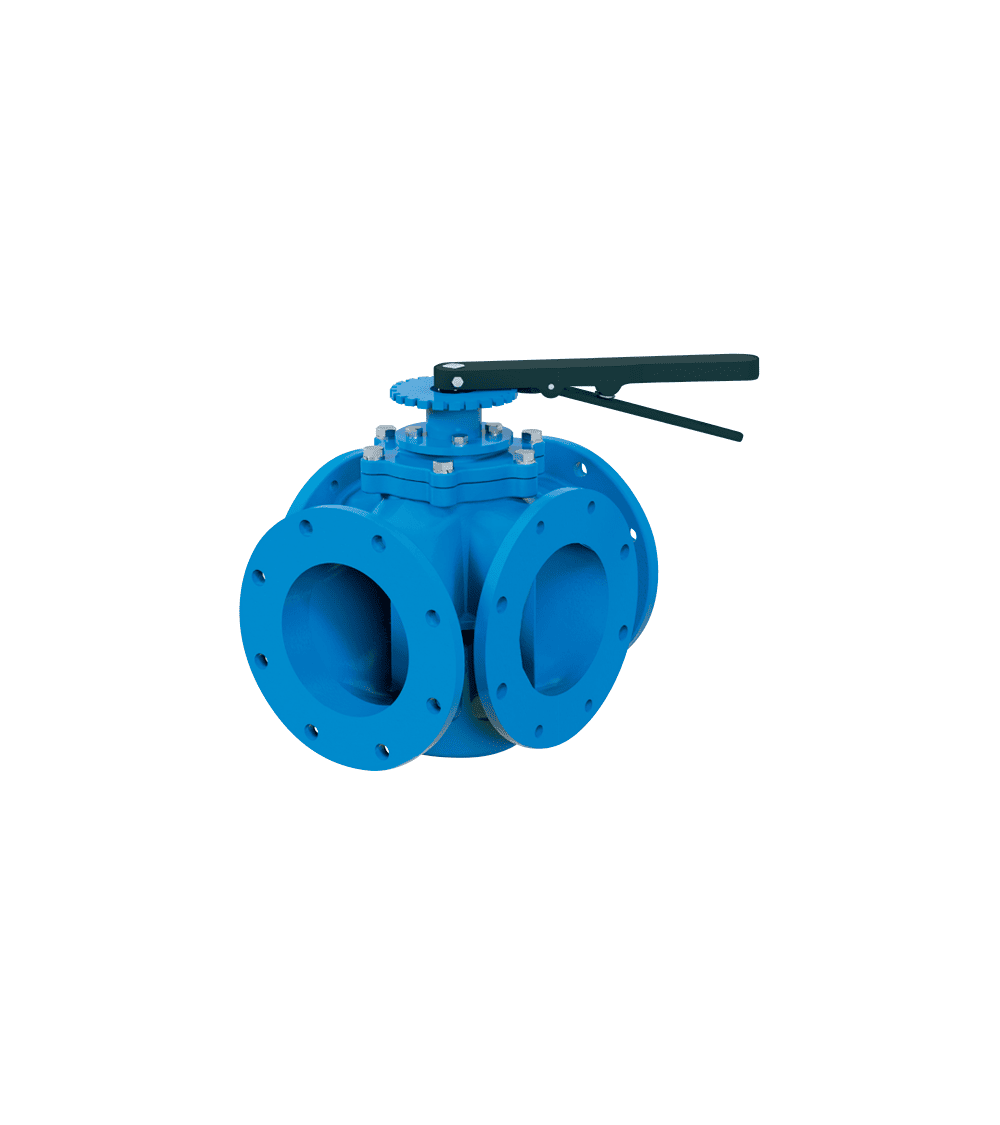

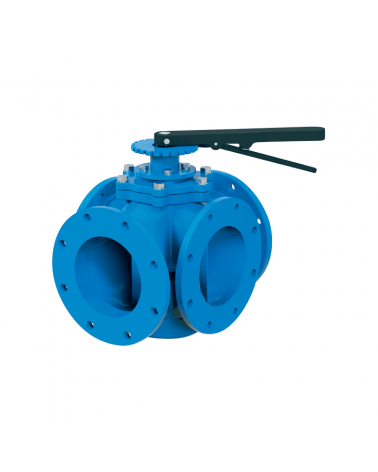

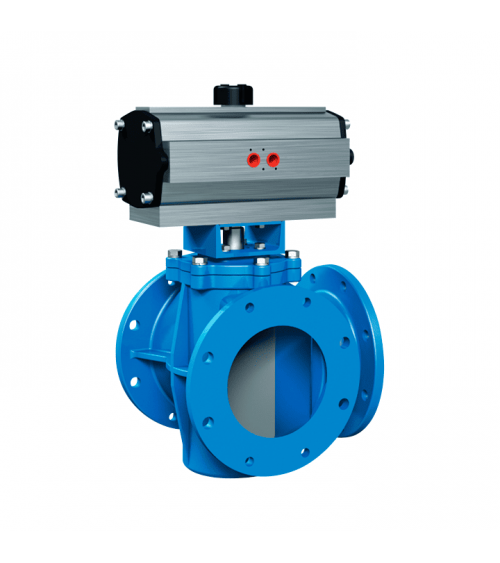

Flanged multiport valve — 3 or 4-way diverter valve, 90° flanged. Heavy-duty body in integral cast iron, with screwed cover. Stainless steel manifold. Multiple materials of construction. Possibility of straight, L-shaped and T-shaped passageways. Actuators: manual gearbox with handwheel, lever, double acting pneumatic, single acting pneumatic, electric. Flange drilling: EN 1092 PN10 or ASME B16.5 (class 150).

REFERENCE SIZE PRESSURE
900V0080 DN 80 10 bar
900V0100 DN 100 10 bar
900V0125 DN 125 10 bar
900V0150 DN 150 10 bar
900V0200 DN 200 8 bar
900V0250 DN 250 6 bar
900V0300 DN 300 6 bar
900V0350 DN 350 5 bar
900V0400 DN 400 5 bar

TECHNICAL DATA — 3 or 4-way diverter valve, 90° flanged. Heavy-duty body in integral cast iron, with screwed cover. Stainless steel manifold. Multiple materials of construction. Possibility of straight, L-shaped and T-shaped passageways. Actuators: manual gearbox with handwheel, lever, double acting pneumatic, single acting pneumatic, electric. Flange drilling: EN 1092 PN10 or ASME B16.5 (class 150).

REFERENCE SIZE PRESSURE
900V0080 DN 80 10 bar
900V0100 DN 100 10 bar
900V0125 DN 125 10 bar
900V0150 DN 150 10 bar
900V0200 DN 200 8 bar
900V0250 DN 250 6 bar
900V0300 DN 300 6 bar
900V0350 DN 350 5 bar
900V0400 DN 400 5 bar

Flanged multiport valve

3 or 4-way diverter valve, 90° flanged. Heavy-duty body in integral cast iron, with screwed cover. Stainless steel manifold. Multiple materials of construction. Possibility of straight, L-shaped and T-shaped passageways. Actuators: manual gearbox with handwheel, lever, double acting pneumatic, single acting pneumatic, electric. Flange drilling: EN 1092 PN10 or ASME B16.5 (class 150).

REFERENCE	SIZE	PRESSURE
900V0080	DN 80	10 bar
900V0100	DN 100	10 bar
900V0125	DN 125	10 bar
900V0150	DN 150	10 bar
900V0200	DN 200	8 bar
900V0250	DN 250	6 bar
900V0300	DN 300	6 bar
900V0350	DN 350	5 bar
900V0400	DN 400	5 bar
