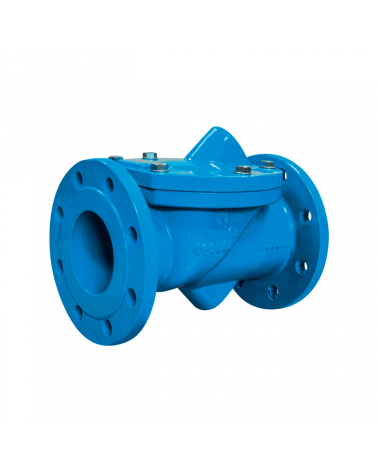

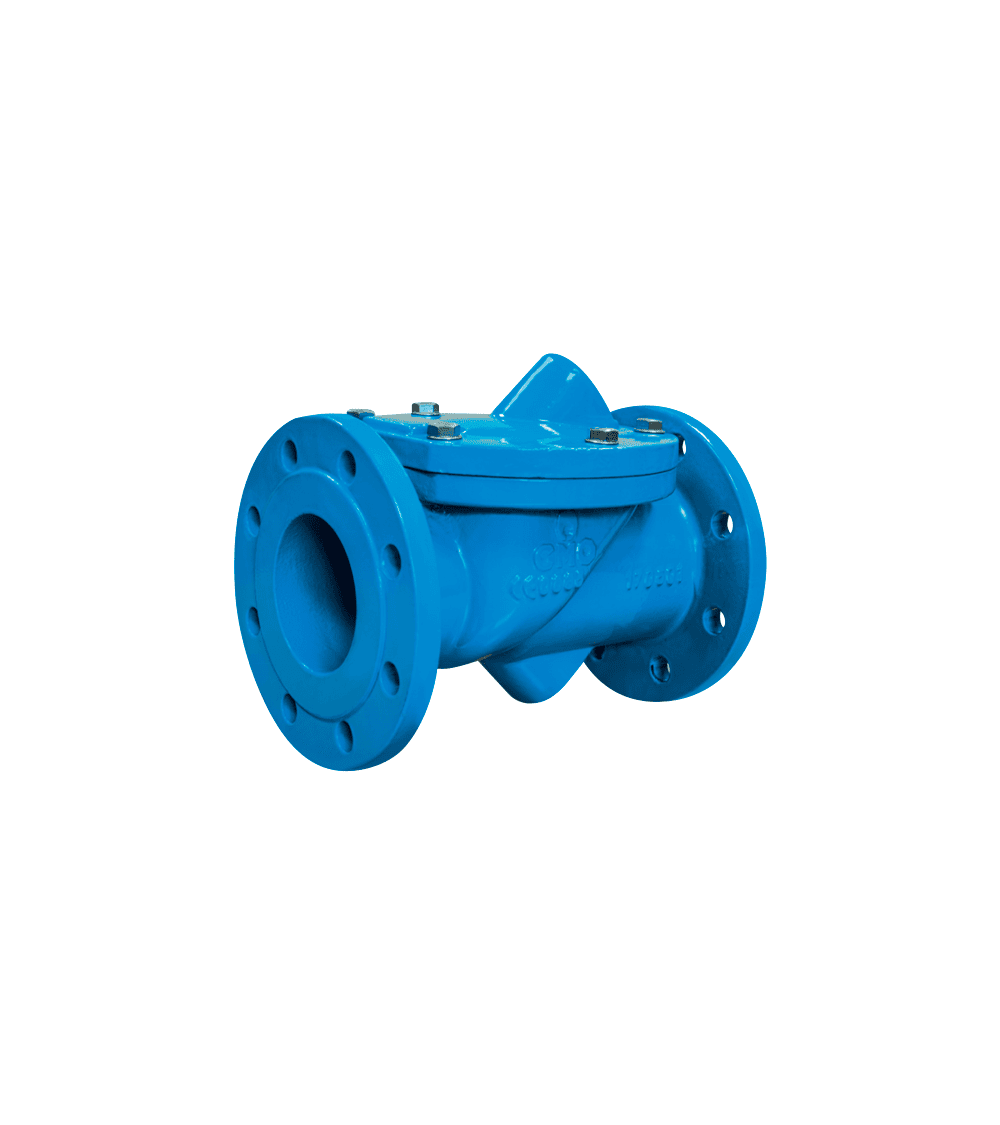

Flap check valve

Rubberised flap check valve to prevent the return of fluid in the event of lack of pressure, designed to work with both clean and dirty water. It has low pressure loss and is 100% watertight. Stainless steel screws. Stainless steel drain plug. WRAS certification for contact with drinking water. Maximum working pressure according to design pressure PN10/PN16. Working temperature between -10°C and 90°C. EPDM seat.

REFERENCESIZEWEIGHT
32A.050.11 DN 50 11 kg
32A.065.11 DN 65 13 kg
32A.080.11 DN 80 17 kg
32A.100.11 DN 100 28 kg
32A.125.11 DN 125 38 kg
32A.150.11 DN 150 50 kg
32A.200.11 DN 200 80 kg
32A.250.11 DN 250 115 kg
32A.300.11 DN 300 160 kg
32A.350.11 DN 350 230 kg
32A.400.11 DN 400 315 kg
32A.450.11 DN 450 410 kg
32A.500.11 DN 500 560 kg
32A.600.11 DN 600 780 kg

Size: DN50
Pressure: 10 bar
Quantity
