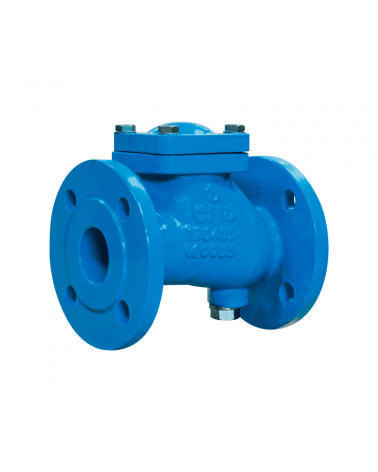

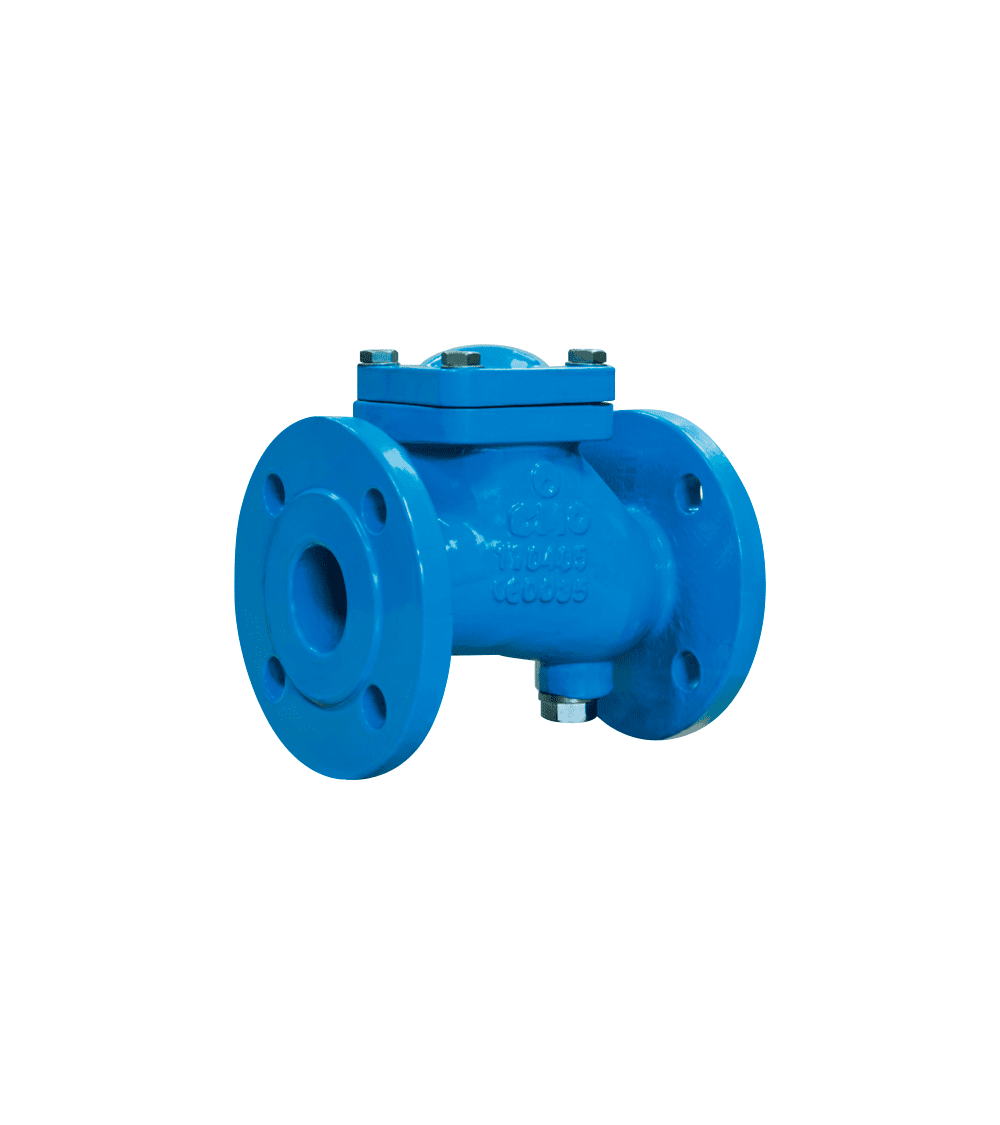

Ball check valve

Ball check valve to prevent fluid return in case of lack of pressure, specially designed to work with waste water, viscous or loaded fluids. 100% watertight. Stainless steel screws. Stainless steel drain plug. Suitable for horizontal and vertical installation. WRAS certified for contact with drinking water. Maximum working pressure according to design pressure PN10/PN16. Working temperature between -10°C and 90°C.

Flanged model:

REFERENCESIZEWEIGHT
31A.050.1211 DN 50 9 kg
31A.065.1211 DN 65 12 kg
31A.080.1211 DN 80 15 kg
31A.100.1211 DN 100 20 kg
31A.125.1211 DN 125 31 kg
31A.150.1211 DN 150 40 kg
31A.200.1211 DN 200 75 kg
31A.250.1211 DN 250 115 kg
31A.300.1211 DN 300 160 kg
31A.400.1211 DN 400 280 kg
31A.500.1211 DN 500 450 kg

Threaded model:

REFERENCESIZEWEIGHT
31A.032.1222 DN 32 2 kg
31A.040.1222 DN 40 2,5 kg
31A.050.1222 DN 50 3,5 kg
31A.065.1222 DN 65 6 kg
31A.080.1222 DN 80 8 kg

Size: DN50
Model: Flanged
Pressure: 10 bar
Quantity

You might also like

Quick view
Ball check valve - flanges DIN PN 16

Price €143.87
Ball check valve with nodular cast iron construction EN-GJS-400 (GGG-40). Flanged ends according to DIN 2501 PN 16. Dimensions between faces...
Quick view
Swing check valve - flanges DIN PN 16

Price €113.74
Swing check valve with flanged ends according to EN 1092 PN 16. Length between faces according to EN 558 series 48 (DIN 3202 F6). Nodular cast...
Quick view
Flap check valve

Rubberised flap check valve to prevent the return of fluid in the event of lack of pressure, designed to work with both clean and dirty water. It...
Quick view

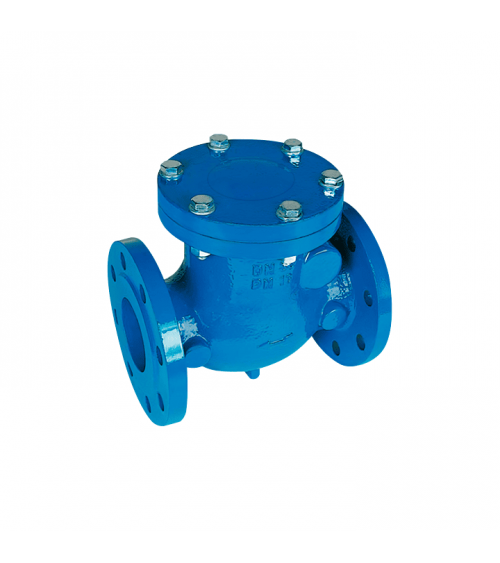

Metal flap check valve
