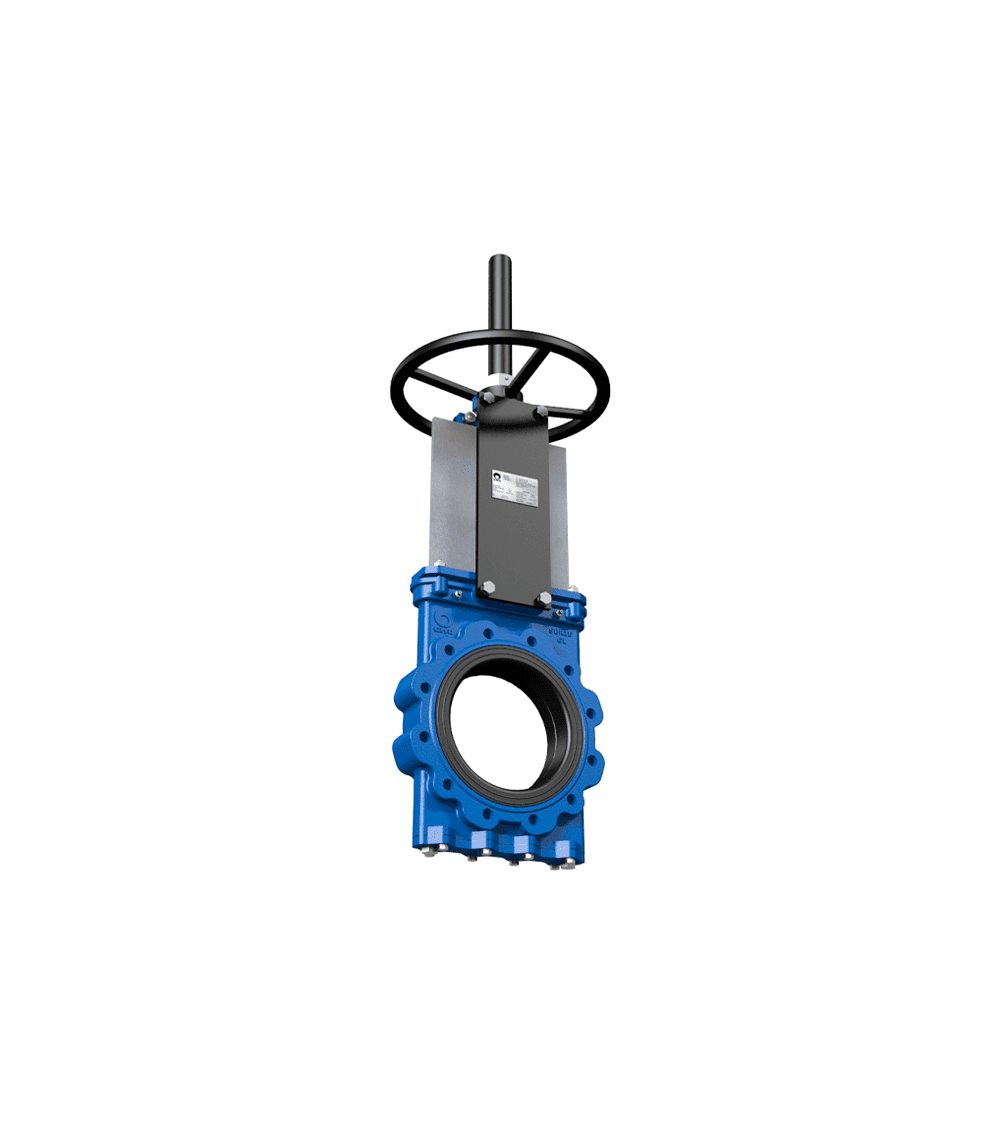

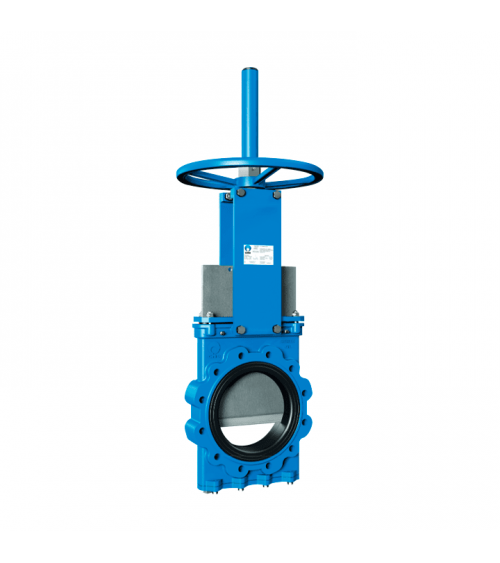

Bidirectional semi-Lug knife gate valve

One-piece monoblock cast iron body. Stainless steel cutter. Two rubber hoses. Provides high flow rates without pressure drop. Multiple seal materials available. Flange drilling: EN 1092 PN10 or ASME B16.5 (class 150).

REFERENCESIZEPRESSURE
900GL0050 DN 50 16 bar
900GL0065 DN 65 16 bar
900GL0080 DN 80 16 bar
900GL0100 DN 100 16 bar
900GL0125 DN 125 16 bar
900GL0150 DN 150 16 bar
900GL0200 DN 200 10 bar
900GL0250 DN 250 10 bar
900GL0300 DN 300 10 bar
900GL0350 DN 350 10 bar
900GL0400 DN 400 10 bar
900GL0450 DN 450 10 bar
900GL0500 DN 500 10 bar
900GL0600 DN 600 10 bar
900GL0700 DN 700 8 bar
900GL0800 DN 800 8 bar
900GL0900 DN 900 8 bar
900GL1000 DN 1000 6 bar
900GL1200 DN 1200 6 bar

TECHNICAL DATA
