Knife gate valve suitable for use with high pressure. One-piece monoblock cast iron body. Stainless steel cutter. Two screwed rubber sleeves. Provides high flow rates without pressure drop. Multiple seal materials available. Flange drilling: PN25, PN40 or ANSI B16.5 (300 lb). Working pressure: ASA150 21 bar; PN25 25 bar; ASA300/PN40 40 bar.
| REFERENCE | SIZE |
|---|---|
| 900GH0080 | DN 80 |
| 900GH0100 | DN 100 |
| 900GH0125 | DN 125 |
| 900GH0150 | DN 150 |
| 900GH0200 | DN 200 |
| 900GH0250 | DN 250 |
| 900GH0300 | DN 300 |
| 900GH0350 | DN 350 |
| 900GH0400 | DN 400 |
| 900GH0450 | DN 450 |
| 900GH0500 | DN 500 |
| 900GH0600 | DN 600 |

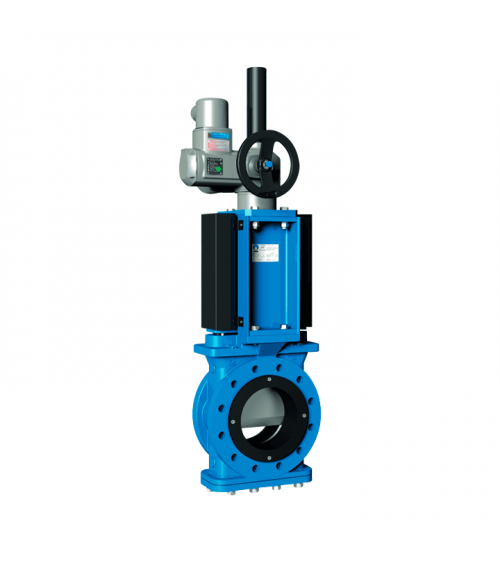

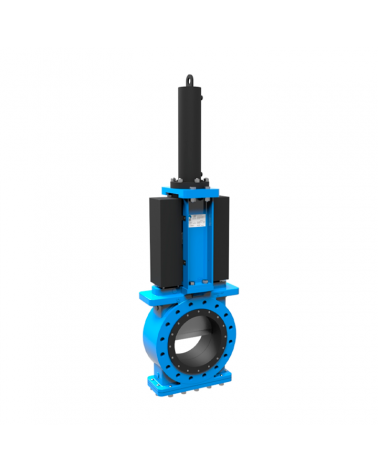

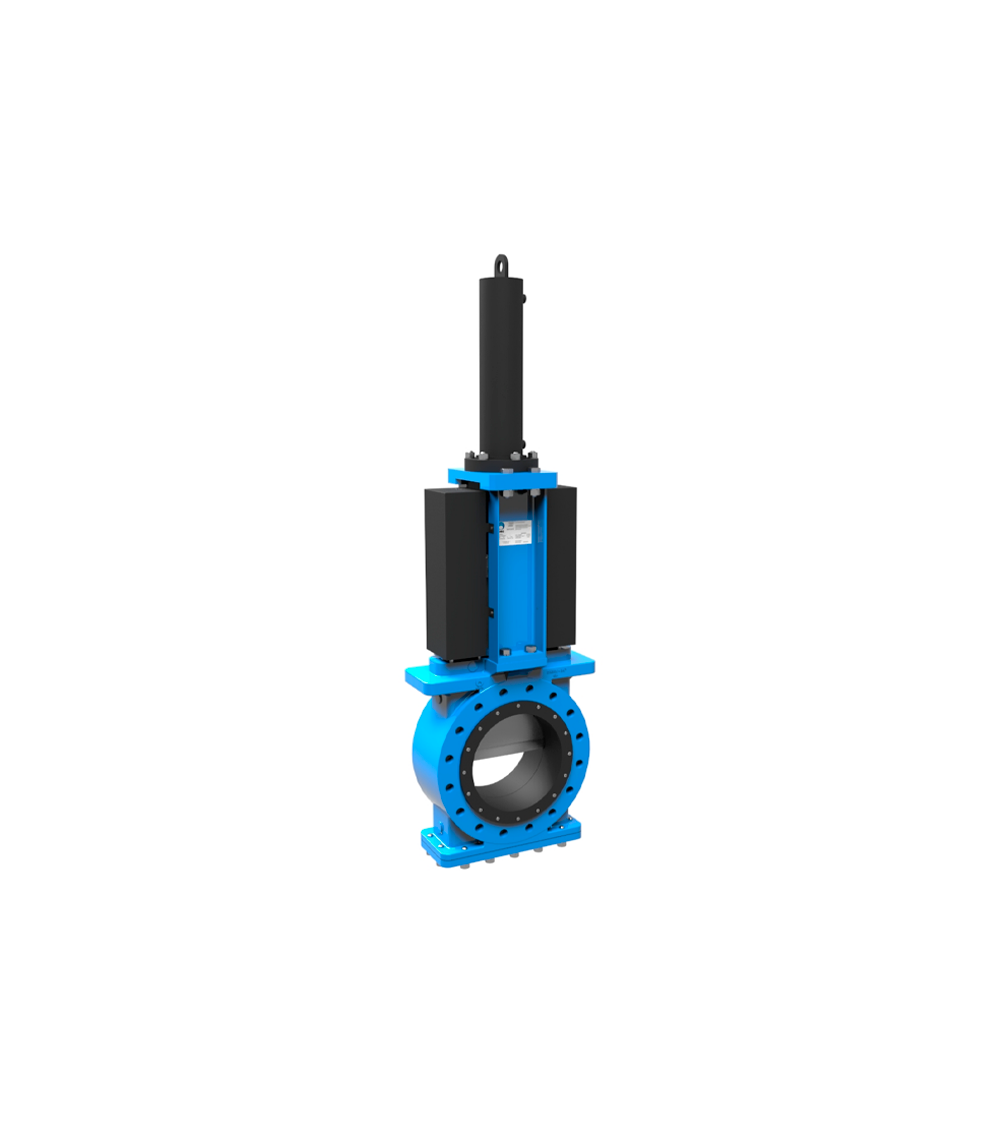

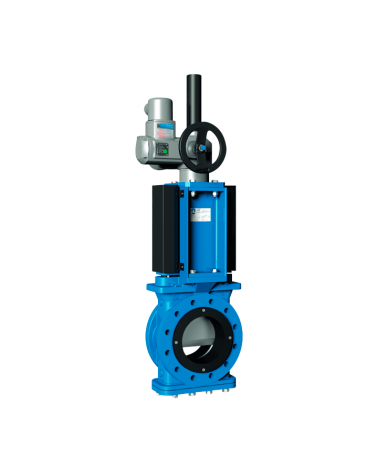

Bidirectional flanged knife gate valve
Knife gate valve suitable for use with high pressure. One-piece monoblock cast iron body. Stainless steel cutter. Two screwed rubber sleeves. Provides high flow rates without pressure drop. Multiple seal materials available. Flange drilling: PN25, PN40 or ANSI B16.5 (300 lb). Working pressure: ASA150 21 bar; PN25 25 bar; ASA300/PN40 40 bar.
| REFERENCE | SIZE |
|---|---|
| 900GH0080 | DN 80 |
| 900GH0100 | DN 100 |
| 900GH0125 | DN 125 |
| 900GH0150 | DN 150 |
| 900GH0200 | DN 200 |
| 900GH0250 | DN 250 |
| 900GH0300 | DN 300 |
| 900GH0350 | DN 350 |
| 900GH0400 | DN 400 |
| 900GH0450 | DN 450 |
| 900GH0500 | DN 500 |
| 900GH0600 | DN 600 |
