TECHNICAL DATA — Butterfly valve threaded/welding ends (REF. 2942E) with single-phase electric actuator. Threaded/welding ends according to DIN 11851. AISI 304 stainless steel body. EPDM elastomer. Manual operation: 3 positions. Reduced weight and dimensions. Easy cleaning and assembly. Easy automation. Sanitary polishing (Ra ≤ 0.8 μm). Low torque. Maximum working pressure: 10 bar. Maximum working temperature: 120ºC. Required tension supply must be specified.

**REFERENCE** DN **ACTUATOR** **WEIGHT**
5652E 06 51 25 GE-0 2.78 kg
5652E 07 51 32 GE-0 2.75 kg
5652E 08 51 40 GE-0 2.98 kg
5652E 09 51 50 GE-0 3.58 kg
5652E 10 51 65 GE-0 4.20 kg
5652E 11 47 80 GE-05 4.95 kg
5652E 12 47 100 GE-05 6.05 kg

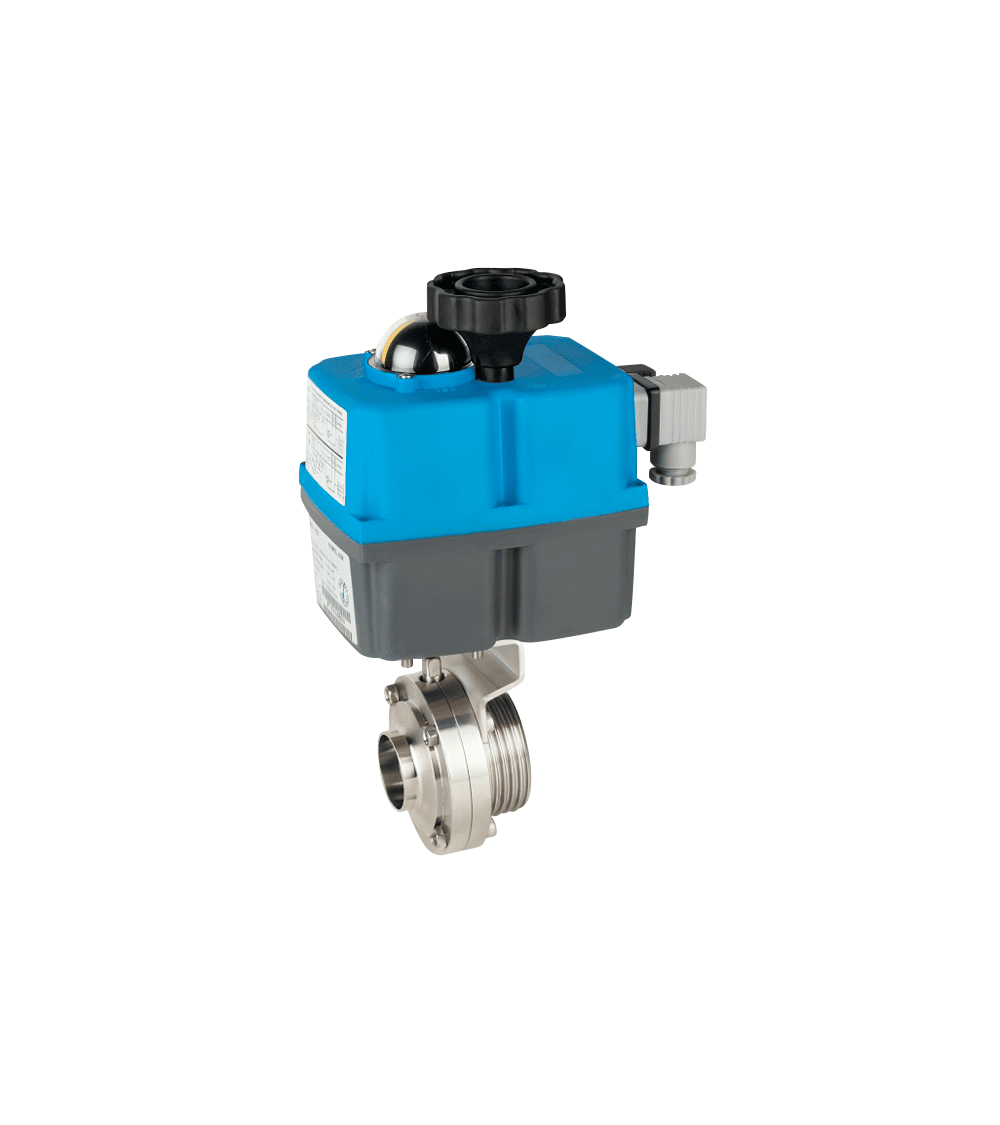

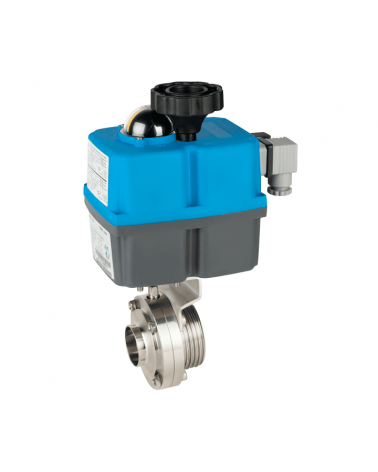

Butterfly valve threaded/welded ends with single-phase electric actuator

Butterfly valve threaded/welding ends (REF. 2942E) with single-phase electric actuator. Threaded/welding ends according to DIN 11851. AISI 304 stainless steel body. EPDM elastomer. Manual operation: 3 positions. Reduced weight and dimensions. Easy cleaning and assembly. Easy automation. Sanitary polishing (Ra ≤ 0.8 μm). Low torque. Maximum working pressure: 10 bar. Maximum working temperature: 120ºC. Required tension supply must be specified.

REFERENCE	DN	ACTUATOR	WEIGHT
5652E 06 51	25	GE-0	2.78 kg
5652E 07 51	32	GE-0	2.75 kg
5652E 08 51	40	GE-0	2.98 kg
5652E 09 51	50	GE-0	3.58 kg
5652E 10 51	65	GE-0	4.20 kg
5652E 11 47	80	GE-05	4.95 kg
5652E 12 47	100	GE-05	6.05 kg
