Butterfly valve (REF. 2941E) with single-phase electric actuator. Threaded ends according to DIN 11851. AISI 304 stainless steel body. EPDM elastomer. Manual operation: 3 positions. Reduced weight and dimensions. Easy cleaning and assembly. Easy automation. Sanitary polishing (Ra ≤ 0,8 μm). Low torque. Maximum working pressure: 10 bar. Maximum working temperature: 120ºC. Required tension must be specified.
| REFERENCE | DN | ACTUATOR | WEIGHT |
|---|---|---|---|
| 5651E 06 51 | 25 | GE-0 | 2.85 kg |
| 5651E 07 51 | 32 | GE-0 | 3 kg |
| 5651E 08 51 | 40 | GE-0 | 3.40 kg |
| 5651E 09 51 | 50 | GE-0 | 4 kg |
| 5651E 10 51 | 65 | GE-0 | 6 kg |
| 5651E 11 47 | 80 | GE-05 | 5.65 kg |
| 5651E 12 47 | 100 | GE-05 | 7 kg |

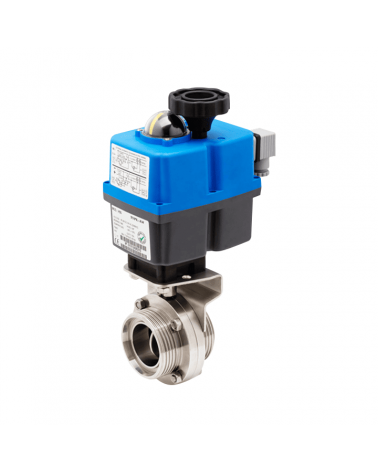

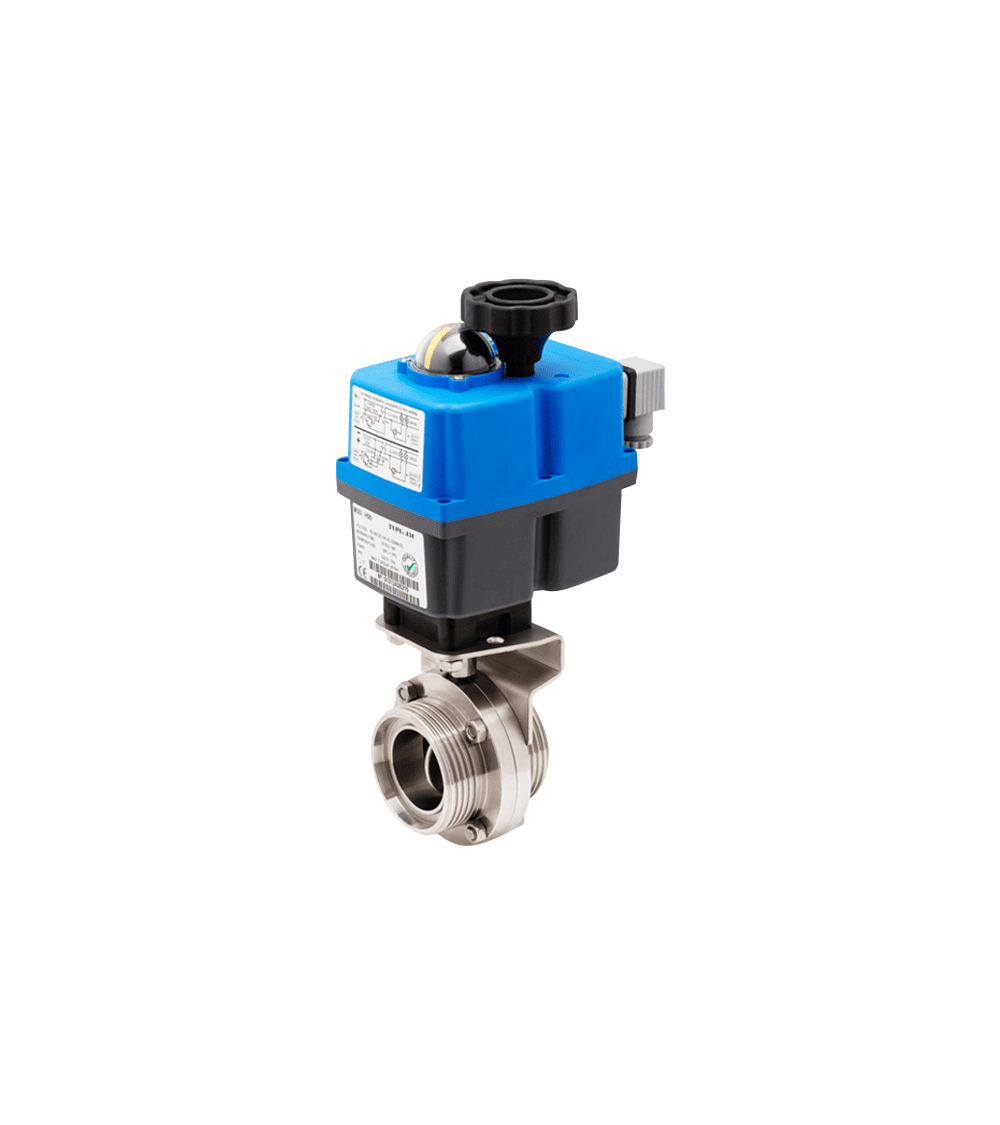

Butterfly valve threaded ends with single-phase electric actuator
Butterfly valve (REF. 2941E) with single-phase electric actuator. Threaded ends according to DIN 11851. AISI 304 stainless steel body. EPDM elastomer. Manual operation: 3 positions. Reduced weight and dimensions. Easy cleaning and assembly. Easy automation. Sanitary polishing (Ra ≤ 0,8 μm). Low torque. Maximum working pressure: 10 bar. Maximum working temperature: 120ºC. Required tension must be specified.
| REFERENCE | DN | ACTUATOR | WEIGHT |
|---|---|---|---|
| 5651E 06 51 | 25 | GE-0 | 2.85 kg |
| 5651E 07 51 | 32 | GE-0 | 3 kg |
| 5651E 08 51 | 40 | GE-0 | 3.40 kg |
| 5651E 09 51 | 50 | GE-0 | 4 kg |
| 5651E 10 51 | 65 | GE-0 | 6 kg |
| 5651E 11 47 | 80 | GE-05 | 5.65 kg |
| 5651E 12 47 | 100 | GE-05 | 7 kg |
€488.85
Tax excluded
