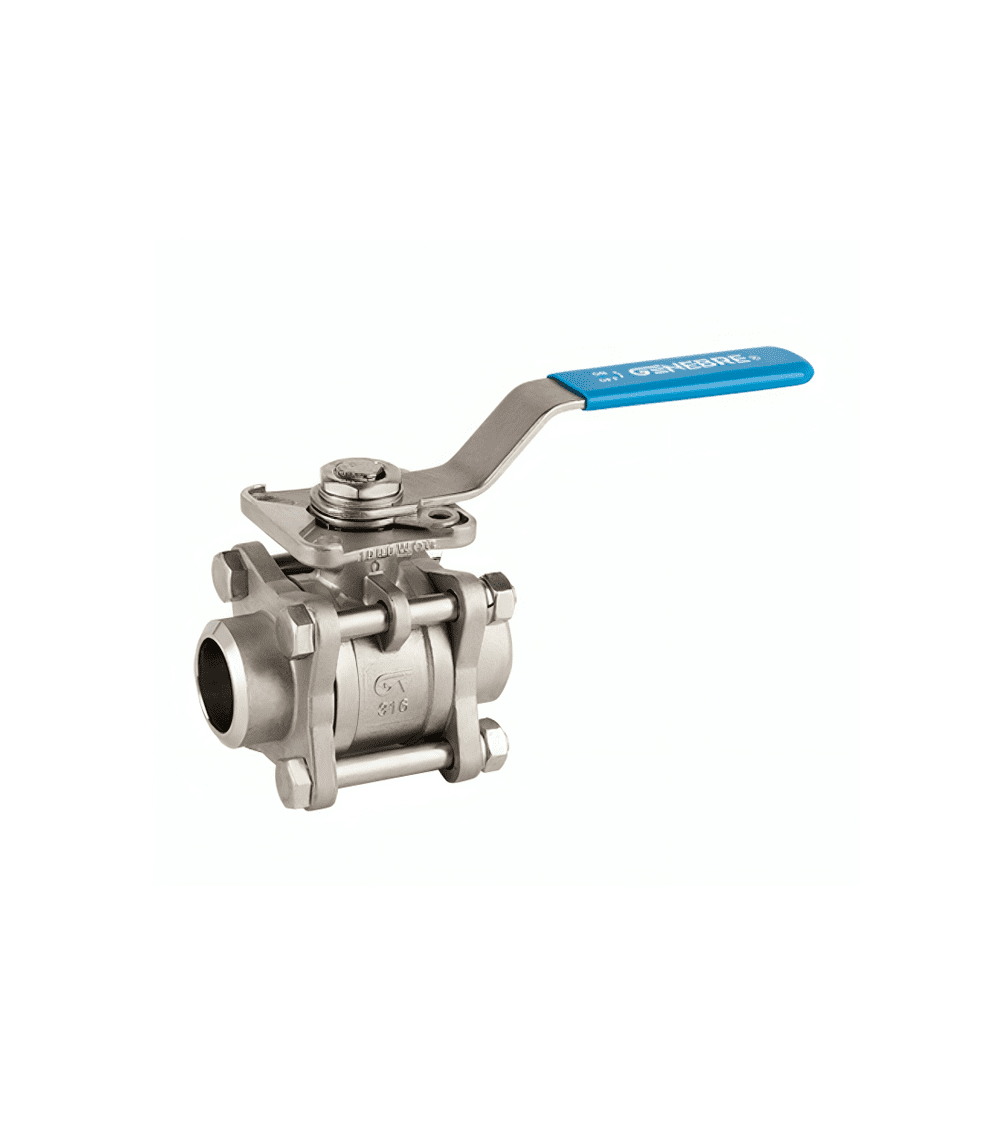

Full bore ball valve 3 piece Butt Weld ends ANSI B 16.25. Stainless steel construction 1.4408 (CF8M). Seats PTFE + 15% fiberglass (other material to be consulted). FKM (Viton) shaft O-ring. PTFE steam gasket + 15% graphite. Locking system. Direct mounting actuator according to ISO 5211. Blow-out proof stem. Maximum working pressure: 63 bar. Working temperature: -25ºC +180ºC.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2026 02 | 1/4" | 63 | 0.37 kg |
| 2026 03 | 3/8" | 63 | 0.37 kg |
| 2026 04 | 1/2" | 63 | 0.42 kg |
| 2026 05 | 3/4" | 63 | 0.79 kg |
| 2026 06 | 1" | 63 | 1.01 kg |
| 2026 07 | 1 1/4" | 63 | 1.87 kg |
| 2026 08 | 1 1/2" | 63 | 2.44 kg |
| 2026 09 | 2" | 63 | 3.48 kg |
| 2026 10 | 2 1/2" | 63 | 8.64 kg |
| 2026 11 | 3" | 63 | 12.50 kg |
| 2026 12 | 4" | 63 | 19.31 kg |

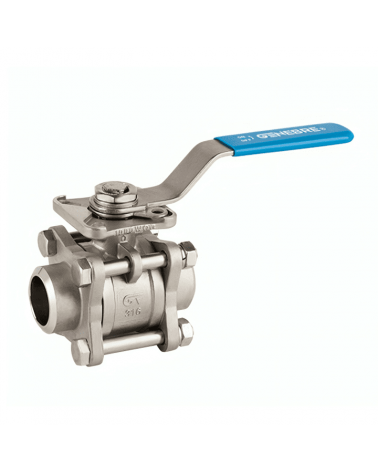

Full bore ball valve 3 pieces Butt Weld
Full bore ball valve 3 piece Butt Weld ends ANSI B 16.25. Stainless steel construction 1.4408 (CF8M). Seats PTFE + 15% fiberglass (other material to be consulted). FKM (Viton) shaft O-ring. PTFE steam gasket + 15% graphite. Locking system. Direct mounting actuator according to ISO 5211. Blow-out proof stem. Maximum working pressure: 63 bar. Working temperature: -25ºC +180ºC.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2026 02 | 1/4" | 63 | 0.37 kg |
| 2026 03 | 3/8" | 63 | 0.37 kg |
| 2026 04 | 1/2" | 63 | 0.42 kg |
| 2026 05 | 3/4" | 63 | 0.79 kg |
| 2026 06 | 1" | 63 | 1.01 kg |
| 2026 07 | 1 1/4" | 63 | 1.87 kg |
| 2026 08 | 1 1/2" | 63 | 2.44 kg |
| 2026 09 | 2" | 63 | 3.48 kg |
| 2026 10 | 2 1/2" | 63 | 8.64 kg |
| 2026 11 | 3" | 63 | 12.50 kg |
| 2026 12 | 4" | 63 | 19.31 kg |
€23.33
Tax excluded
Delivery 4-5 days except sale
