3 piece full bore ball valve with tank bottom / threaded ends ISO 7-1 (EN 10226-1). Stainless steel construction 1.4408 (CF8M) and 316 L. Seats PTFE + 15% fiberglass (other material to be consulted). FPM o'ring stem. PTFE stem gasket + 15% graphite. Locking system. Direct mounting actuator ISO 5211. Blow-out proof stem. Maximum working pressure: 63 bar. Working temperature: -25ºC +180ºC.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2052 04 | 1/2" | 63 | 0.44 kg |
| 2052 05 | 3/4" | 63 | 0.82 kg |
| 2052 06 | 1" | 63 | 1.02 kg |
| 2052 07 | 1 1/4" | 63 | 1.79 kg |
| 2052 08 | 1 1/2" | 63 | 4.14 kg |
| 2052 09 | 2" | 63 | 5.32 kg |
| 2052 10 | 2 1/2" | 63 | 8.50 kg |
| 2052 11 | 3" | 63 | 12.40 kg |
| 2052 12 | 4" | 63 | 19.65 kg |

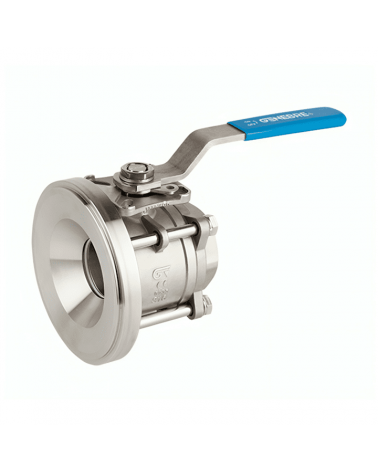

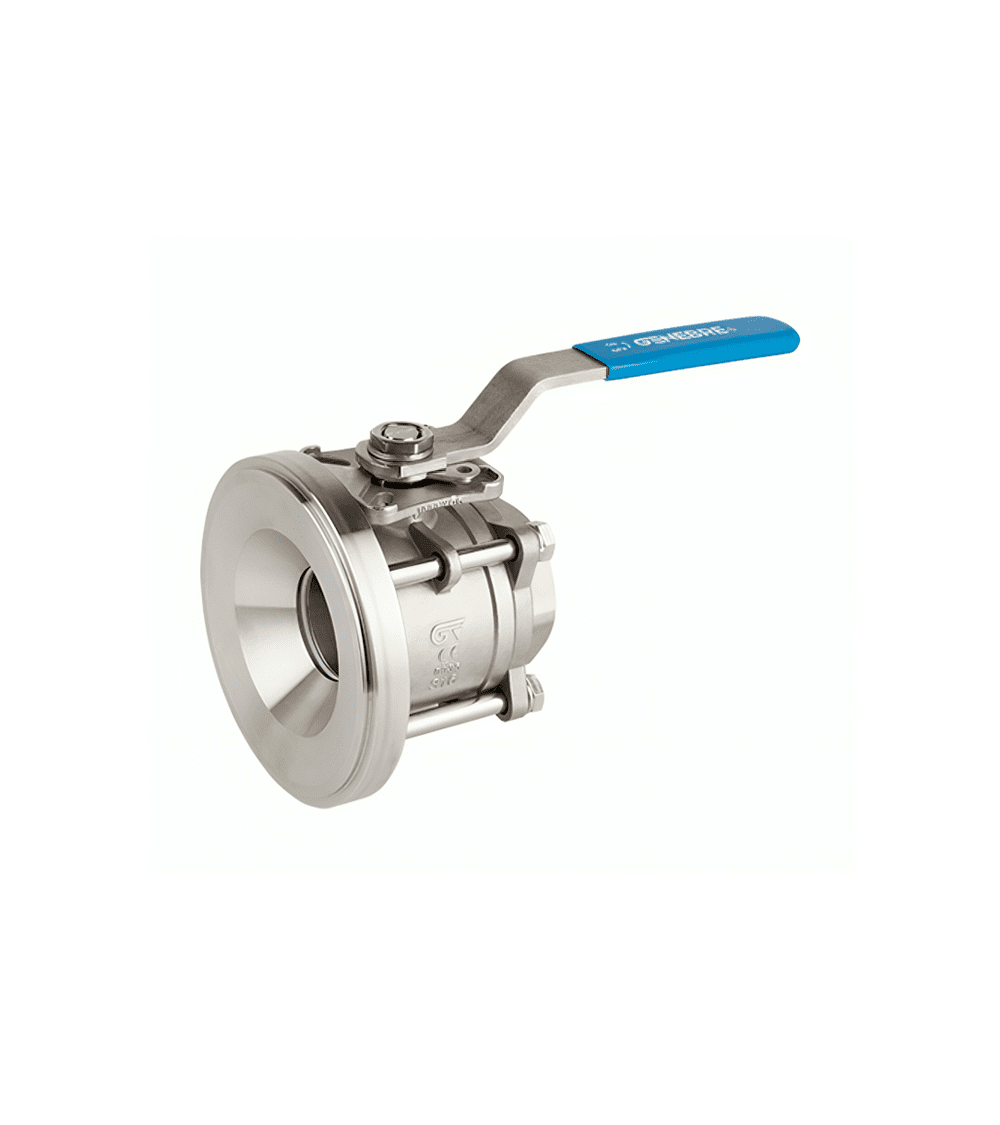

Tank bottom full port ball valve
3 piece full bore ball valve with tank bottom / threaded ends ISO 7-1 (EN 10226-1). Stainless steel construction 1.4408 (CF8M) and 316 L. Seats PTFE + 15% fiberglass (other material to be consulted). FPM o'ring stem. PTFE stem gasket + 15% graphite. Locking system. Direct mounting actuator ISO 5211. Blow-out proof stem. Maximum working pressure: 63 bar. Working temperature: -25ºC +180ºC.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2052 04 | 1/2" | 63 | 0.44 kg |
| 2052 05 | 3/4" | 63 | 0.82 kg |
| 2052 06 | 1" | 63 | 1.02 kg |
| 2052 07 | 1 1/4" | 63 | 1.79 kg |
| 2052 08 | 1 1/2" | 63 | 4.14 kg |
| 2052 09 | 2" | 63 | 5.32 kg |
| 2052 10 | 2 1/2" | 63 | 8.50 kg |
| 2052 11 | 3" | 63 | 12.40 kg |
| 2052 12 | 4" | 63 | 19.65 kg |
€222.52
Tax excluded
Delivery 4-5 days except sale
