Price
€182.36
Lug type butterfly valve (REF. 2108) with manual gearbox. Body made of nodular cast iron EN-GJS-400 (GGG-40) for mounting between flanges EN 1092...

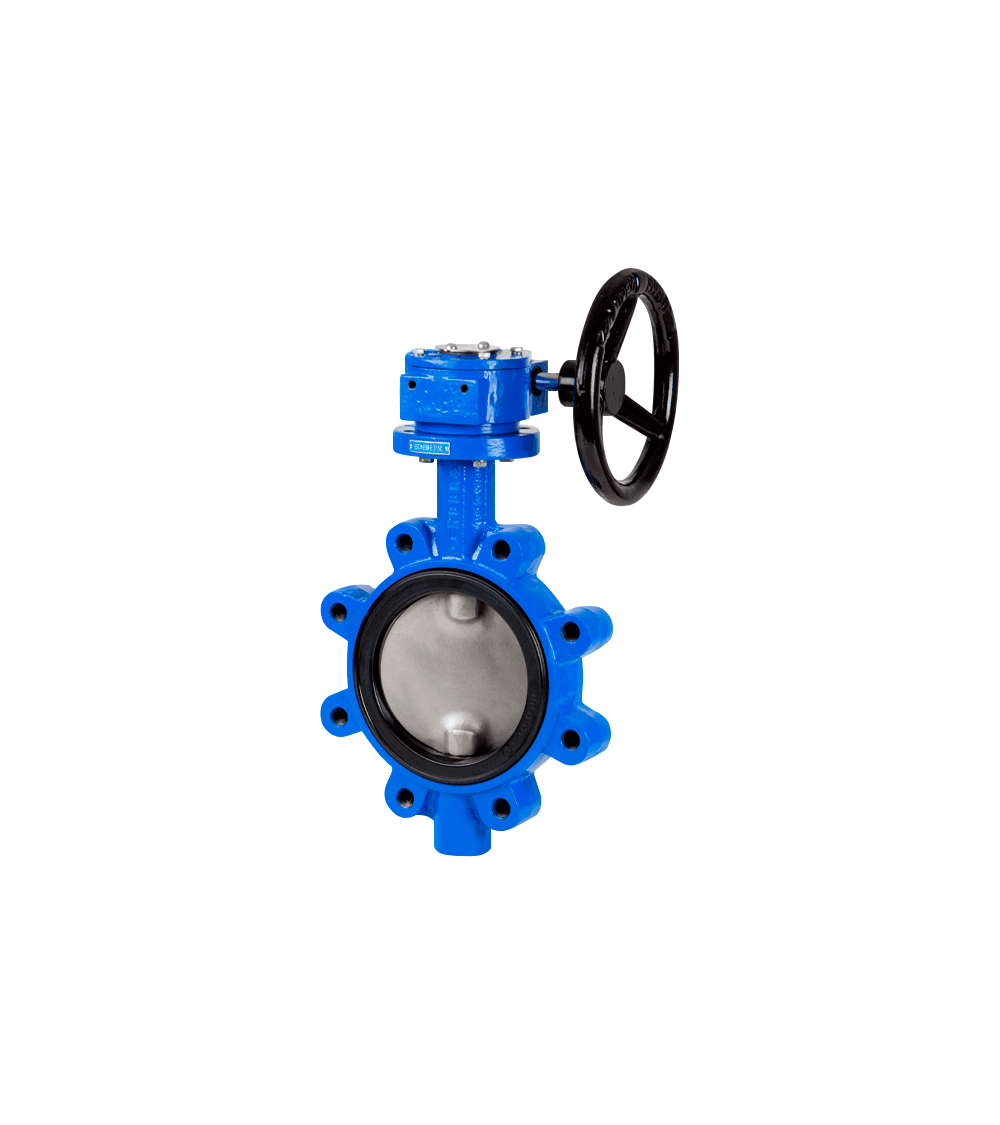

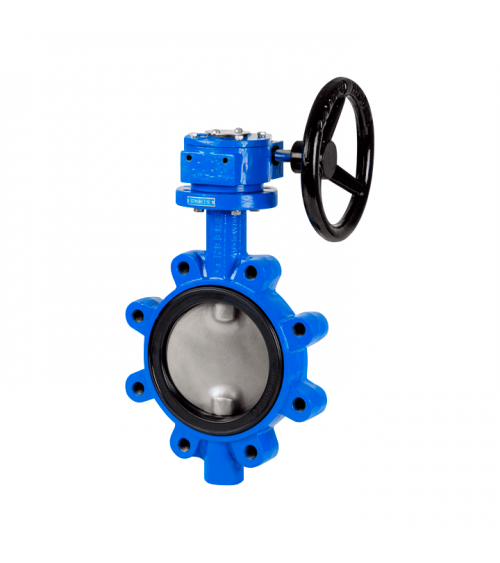

Lug type butterfly valve (REF. 2108A) with manual gearbox. Body made of nodular cast iron EN-GJS-400 (GGG-40) for mounting between ANSI 150 flanges. EPDM elastomer. Stainless steel disc 1.4408 (CF8M). Flange mounting actuators according to ISO 5211. Length between faces according to EN 558-1 Series 20 (DIN 3202 K1). Epoxy painted. Working temperature: -20ºC +120ºC.
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 5108A 09 | 2" | 8.71 kg |
| 5108A 10 | 2 1/2" | 9.11 kg |
| 5108A 11 | 3" | 9.49 kg |
| 5108A 12 | 4" | 12.29 kg |
| 5108A 13 | 5" | 13 kg |
| 5108A 14 | 6" | 16.73 kg |
| 5108A 16 | 8" | 26.90 kg |
| 5108A 18 | 10" | 37.20 kg |
Lug type ball valve with manual gearbox and ANSI flanged mounting − nodular cast iron body
Lug type butterfly valve (REF. 2108A) with manual gearbox. Body made of nodular cast iron EN-GJS-400 (GGG-40) for mounting between ANSI 150 flanges. EPDM elastomer. Stainless steel disc 1.4408 (CF8M). Flange mounting actuators according to ISO 5211. Length between faces according to EN 558-1 Series 20 (DIN 3202 K1). Epoxy painted. Working temperature: -20ºC +120ºC.
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 5108A 09 | 2" | 8.71 kg |
| 5108A 10 | 2 1/2" | 9.11 kg |
| 5108A 11 | 3" | 9.49 kg |
| 5108A 12 | 4" | 12.29 kg |
| 5108A 13 | 5" | 13 kg |
| 5108A 14 | 6" | 16.73 kg |
| 5108A 16 | 8" | 26.90 kg |
| 5108A 18 | 10" | 37.20 kg |
€182.36
Tax excluded
