Price
€182.36
Lug type butterfly valve (REF. 2108A) with manual gearbox. Body made of nodular cast iron EN-GJS-400 (GGG-40) for mounting between ANSI 150...

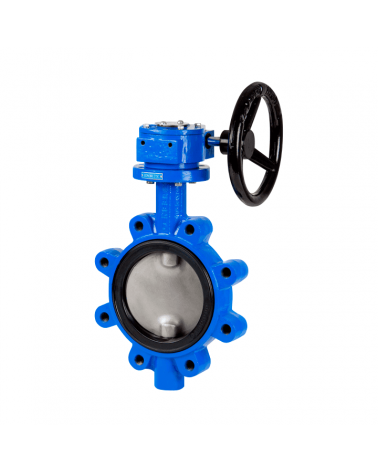

Lug type butterfly valve (REF. 2108B) with manual reducer. Body made of nodular cast iron EN-GJS-400 (GGG-40) for mounting EN 1092 flanges. NBR elastomer. Stainless steel disc 1.4408 (CF8M). Flange mounting actuators according to ISO 5211. Length between faces according to EN 558-1 Series 20 (DIN 3202 K1). Epoxy painted. Working temperature: -20ºC +120ºC.
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 5108B 09 | 2" | 8.50 kg |
| 5108B 10 | 2 1/2" | 8.84 kg |
| 5108B 11 | 3" | 8.41 kg |
| 5108B 12 | 4" | 11 kg |
| 5108B 13 | 5" | 13 kg |
| 5108B 14 | 6" | 12.50 kg |
| 5108B 16 | 8" | 26.60 kg |
| 5108B 18 | 10" | 24.20 kg |

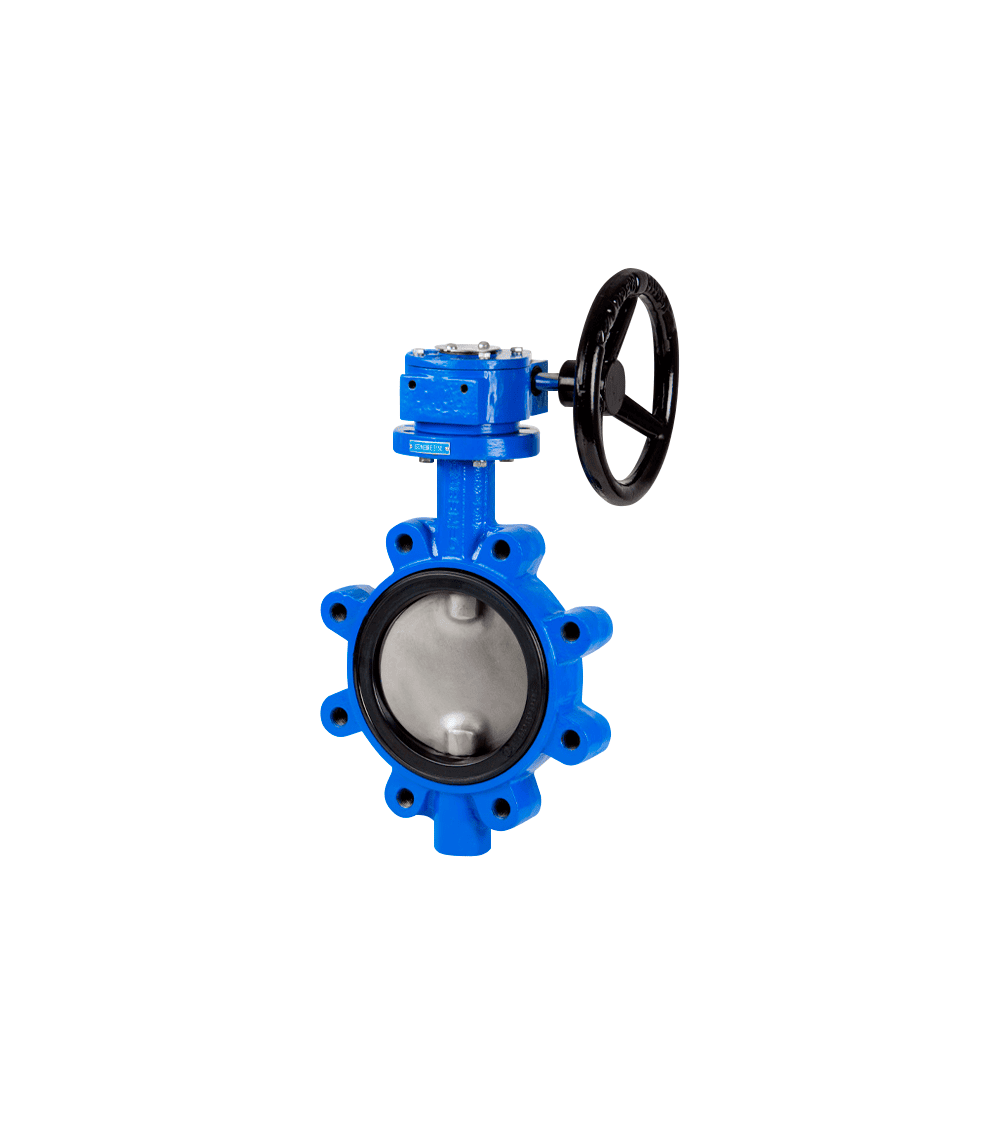

Lug type ball valve with manual gearbox and EN 1092 flanged mounting − nodular cast iron body
Lug type butterfly valve (REF. 2108B) with manual reducer. Body made of nodular cast iron EN-GJS-400 (GGG-40) for mounting EN 1092 flanges. NBR elastomer. Stainless steel disc 1.4408 (CF8M). Flange mounting actuators according to ISO 5211. Length between faces according to EN 558-1 Series 20 (DIN 3202 K1). Epoxy painted. Working temperature: -20ºC +120ºC.
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 5108B 09 | 2" | 8.50 kg |
| 5108B 10 | 2 1/2" | 8.84 kg |
| 5108B 11 | 3" | 8.41 kg |
| 5108B 12 | 4" | 11 kg |
| 5108B 13 | 5" | 13 kg |
| 5108B 14 | 6" | 12.50 kg |
| 5108B 16 | 8" | 26.60 kg |
| 5108B 18 | 10" | 24.20 kg |
€191.48
Tax excluded
