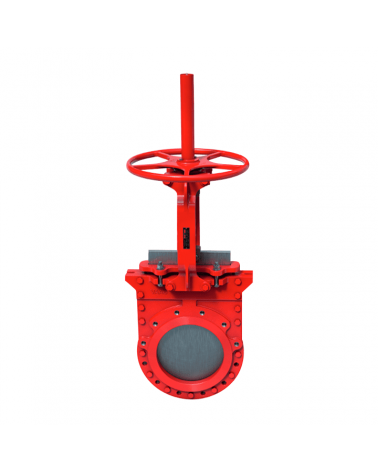

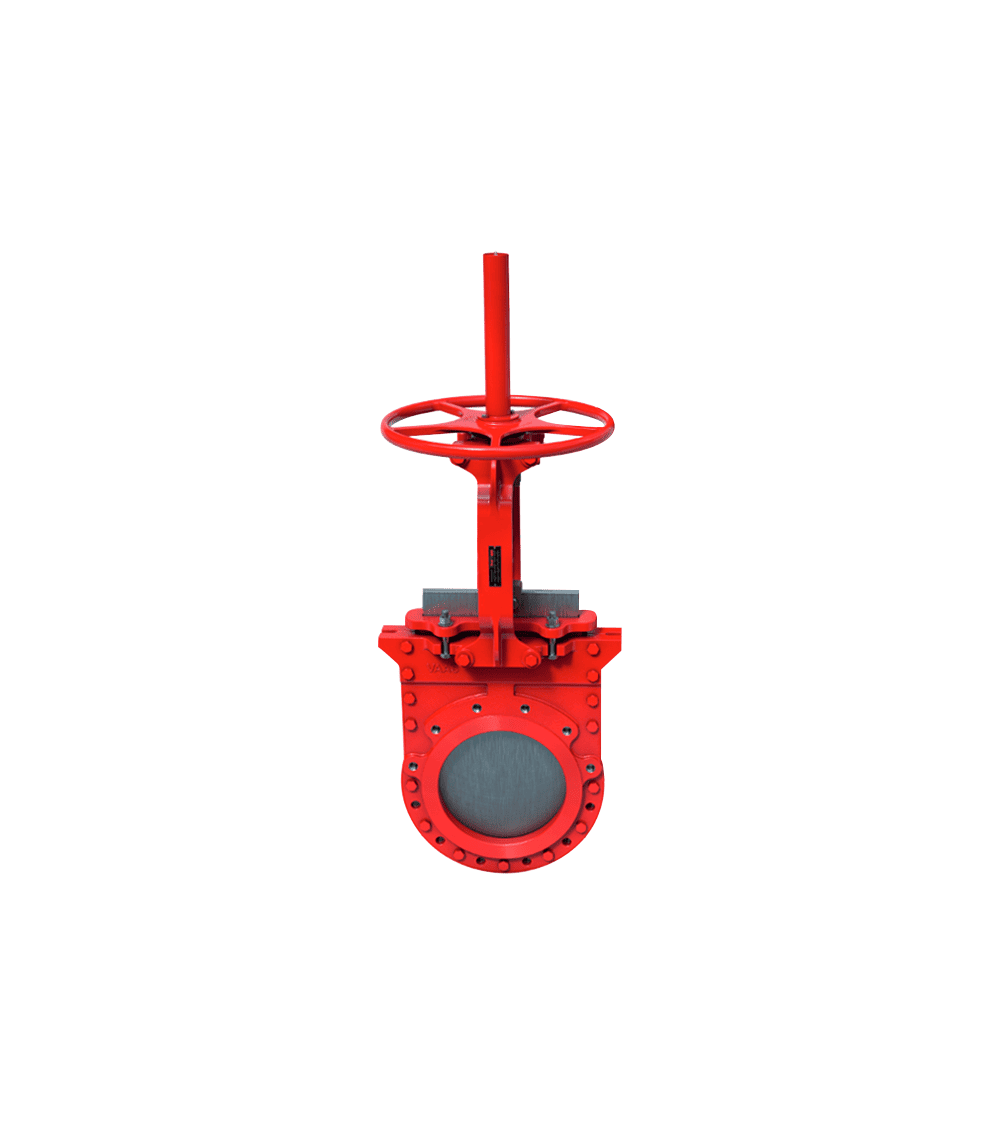

The Bray Series 752 Bidirectional Knife Gate Valve is an engineered solution designed for precise and reliable handling of slurries. Its innovative design, featuring a two-piece bolted body and a steel-reinforced molded perimeter seat, ensures bidirectional zero leakage shutoff even under demanding operational conditions. With a diverse range of actuator options including Direct Mounted Handwheel Standard (2"-10"), Bevel Gear Standard (12"-24"), Pneumatic, Hydraulic, and Electric, it addresses various operational requirements.
Primarily utilized in Chemical, Mining, and Power industries, the Series 752 demonstrates excellence in valve technology, delivering superior performance, durability, and adaptability.
Features:
- Pressure rating of 240 psi (16 bar), accommodating a wide spectrum of industrial applications.
- Compliant with ASME B16.5 CL150 drilling standards, ensuring seamless compatibility and integration within existing systems.
- Configured in a two-piece bolted wafer design, optimizing space utilization and offering installation flexibility.
- Packing Options: PTFE impregnated synthetic fiber, PTFE w/Buna-N Quad Seal, PTFE w/Viton® Quad Seal.

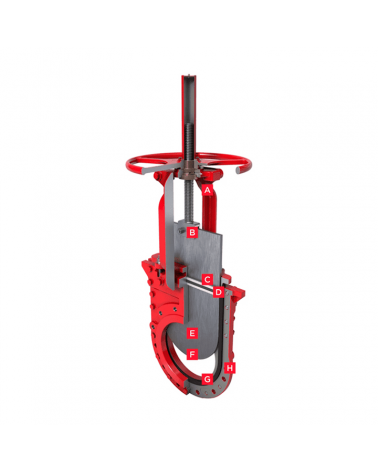

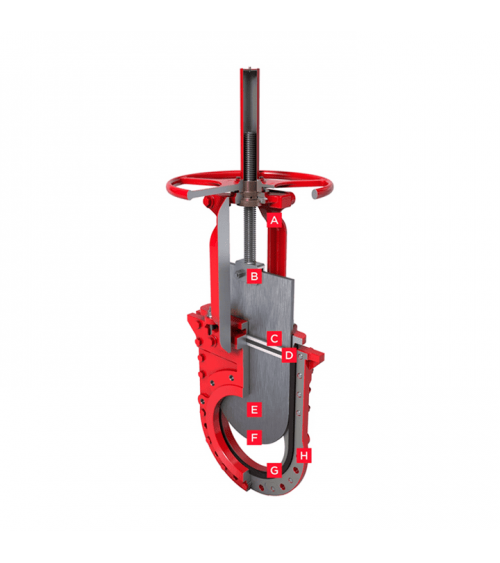

A. Topworks: designed for easy, quick conversion between manual and pneumatic actuation. Featuring a lubricant injection port for continuous, smooth operation with minimal maintenance.
B. Clevis: clevis design and horizontal bolting stabilizes gate ensuring proper alignment.
C. Packing (standard): standard multi-layer square packing provides exceptional gland sealing.
D. Packing (optional): optional energized quad seal packing for enhanced gland sealing.
E. Unrestricted flow path: unrestricted flow path with minimal pressure drop achieved through full port valve design.
F. Gate: deflection resistant gate design ensures consistent alignment for industry leading durability.
G. Seat: replaceable steel reinforced elastomer seat ensures bidirectional zero leakage shutoff.
H. Body: two piece bolted body for easy maintenance and seat replacement.
