One-piece cast iron body with slides to support the chopper and closing wedges. High flow rates with low pressure drop. Stainless steel gate. Multiple materials of construction, seals and gaskets available. Incorporates an arrow on the body indicating the direction of pressure. Flange drilling EN 1092 PN10 or ASME B16.5 (class 150).
| REFERENCE | SIZE | PRESSURE |
|---|---|---|
| 900AD0050 | DN 50 | 10 bar |
| 900AD0065 | DN 65 | 10 bar |
| 900AD0080 | DN 80 | 10 bar |
| 900AD0100 | DN 100 | 10 bar |
| 900AD0125 | DN 125 | 10 bar |
| 900AD0150 | DN 150 | 10 bar |
| 900AD0200 | DN 200 | 10 bar |
| 900AD0250 | DN 250 | 10 bar |
| 900AD0300 | DN 300 | 6 bar |
| 900AD0350 | DN 350 | 6 bar |
| 900AD0400 | DN 400 | 6 bar |
| 900AD0450 | DN 450 | 5 bar |
| 900AD0500 | DN 500 | 4 bar |
| 900AD0600 | DN 600 | 4 bar |
| 900AD0700 | DN 700 | 3 bar |
| 900AD0800 | DN 800 | 3 bar |
| 900AD0900 | DN 900 | 3 bar |
| 900AD1000 | DN 1000 | 3 bar |
| 900AD1200 | DN 1200 | 3 bar |

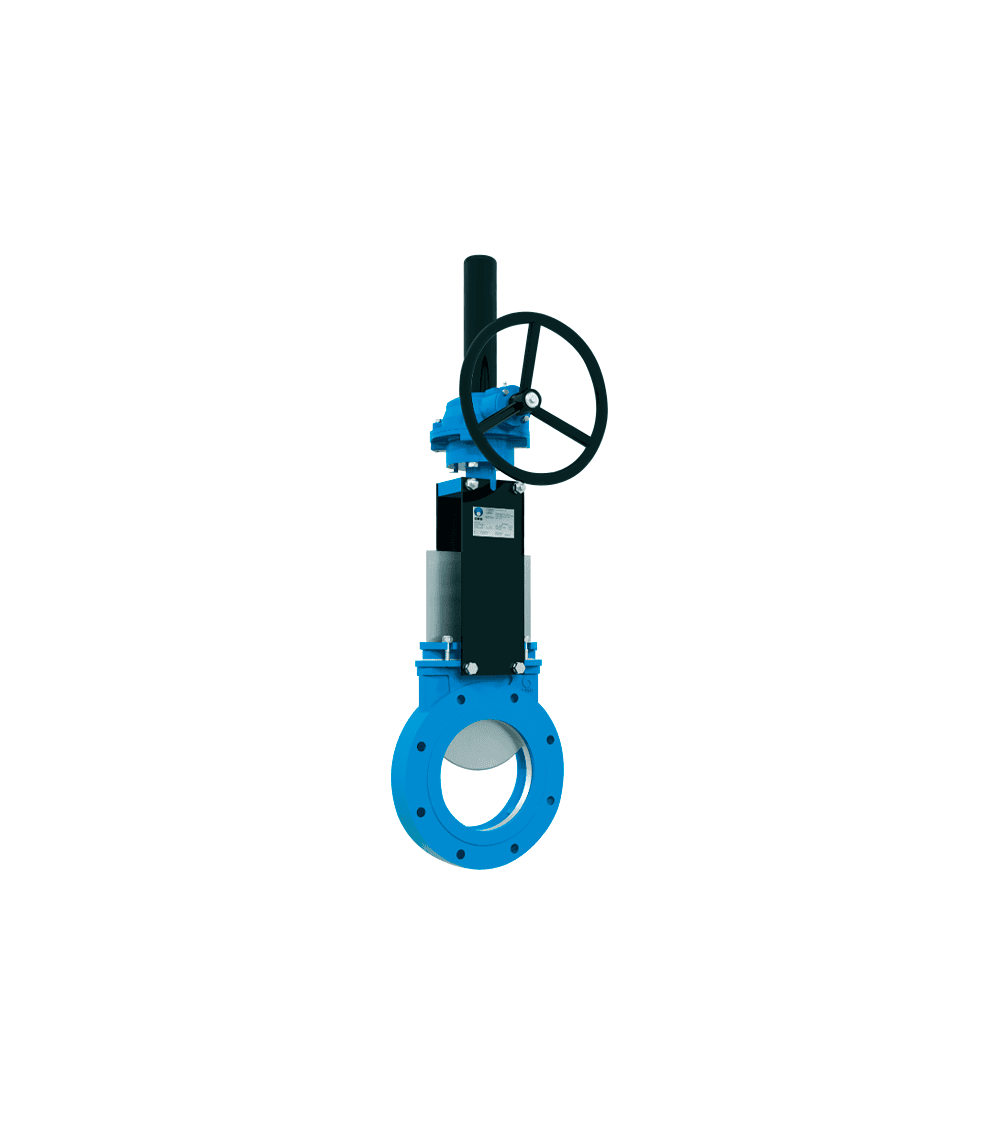

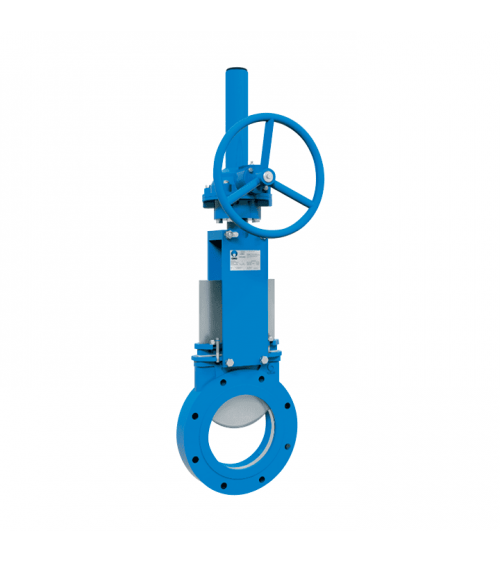

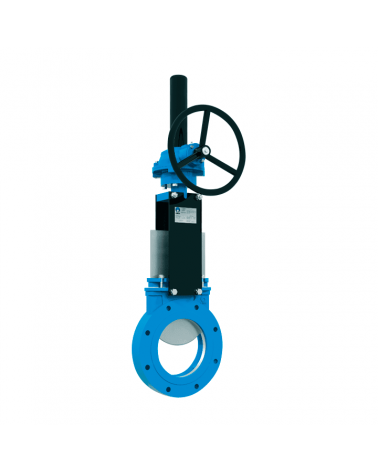

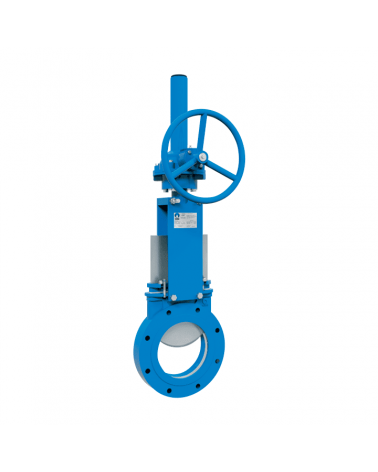

Unidirectional flanged knife gate valve
One-piece cast iron body with slides to support the chopper and closing wedges. High flow rates with low pressure drop. Stainless steel gate. Multiple materials of construction, seals and gaskets available. Incorporates an arrow on the body indicating the direction of pressure. Flange drilling EN 1092 PN10 or ASME B16.5 (class 150).
| REFERENCE | SIZE | PRESSURE |
|---|---|---|
| 900AD0050 | DN 50 | 10 bar |
| 900AD0065 | DN 65 | 10 bar |
| 900AD0080 | DN 80 | 10 bar |
| 900AD0100 | DN 100 | 10 bar |
| 900AD0125 | DN 125 | 10 bar |
| 900AD0150 | DN 150 | 10 bar |
| 900AD0200 | DN 200 | 10 bar |
| 900AD0250 | DN 250 | 10 bar |
| 900AD0300 | DN 300 | 6 bar |
| 900AD0350 | DN 350 | 6 bar |
| 900AD0400 | DN 400 | 6 bar |
| 900AD0450 | DN 450 | 5 bar |
| 900AD0500 | DN 500 | 4 bar |
| 900AD0600 | DN 600 | 4 bar |
| 900AD0700 | DN 700 | 3 bar |
| 900AD0800 | DN 800 | 3 bar |
| 900AD0900 | DN 900 | 3 bar |
| 900AD1000 | DN 1000 | 3 bar |
| 900AD1200 | DN 1200 | 3 bar |
