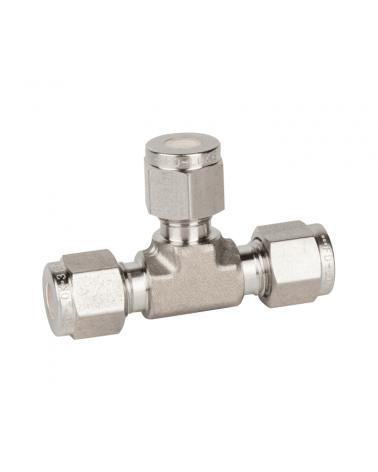

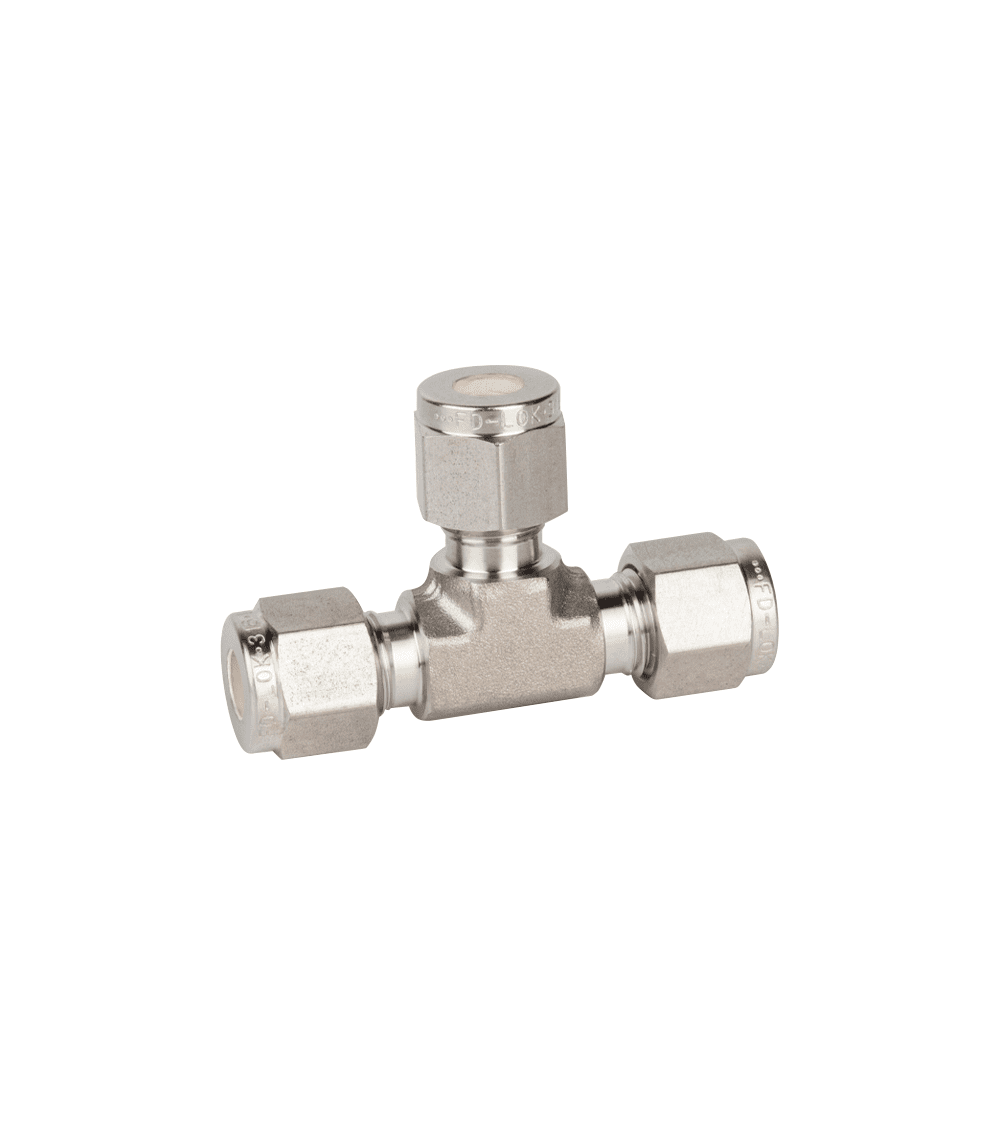

Tee tube-tube for rigid tubing in inches, manufactured in stainless steel ASTM A182 (316). Design with double cone, under tightening nut and axial transmission of the closing pressure avoiding torsion in the tube. Front cone heat treated by nitriding. Application in pneumatic and hydraulic systems (sealing even with light gases: H2, He...). Easy disassembly and re-tightening (silver coating on the nut thread to avoid seizure). Maximum working pressure: 315 bar. Working temperature: -54ºC to 426ºC.
| REFERENCE | SIZE |
|---|---|
| 8403 02 02 | 1/4" x 1/4" |
| 8403 03 03 | 3/8" x 3/8" |
| 8403 04 04 | 1/2" x 1/2" |
Tee tube-tube (inch)
Tee tube-tube for rigid tubing in inches, manufactured in stainless steel ASTM A182 (316). Design with double cone, under tightening nut and axial transmission of the closing pressure avoiding torsion in the tube. Front cone heat treated by nitriding. Application in pneumatic and hydraulic systems (sealing even with light gases: H2, He...). Easy disassembly and re-tightening (silver coating on the nut thread to avoid seizure). Maximum working pressure: 315 bar. Working temperature: -54ºC to 426ºC.
| REFERENCE | SIZE |
|---|---|
| 8403 02 02 | 1/4" x 1/4" |
| 8403 03 03 | 3/8" x 3/8" |
| 8403 04 04 | 1/2" x 1/2" |
€43.67
Tax excluded
