Elbow tube-tube for rigid tubing in inches, manufactured in stainless steel ASTM A182 (316). Design with double cone, under tightening nut and axial transmission of the closing pressure avoiding torsion in the tube. Front cone heat treated by nitriding. Application in pneumatic and hydraulic systems (sealing even with light gases: H2, He...). Easy disassembly and retightening (silver coating on the nut thread to avoid seizure). Maximum working pressure: 315 bar. Working temperature: -54ºC to 426ºC.
| REFERENCE | SIZE |
|---|---|
| 8402 02 02 | 1/4" x 1/4" |
| 8402 03 03 | 3/8" x 3/8" |
| 8402 04 04 | 1/2" x 1/2" |

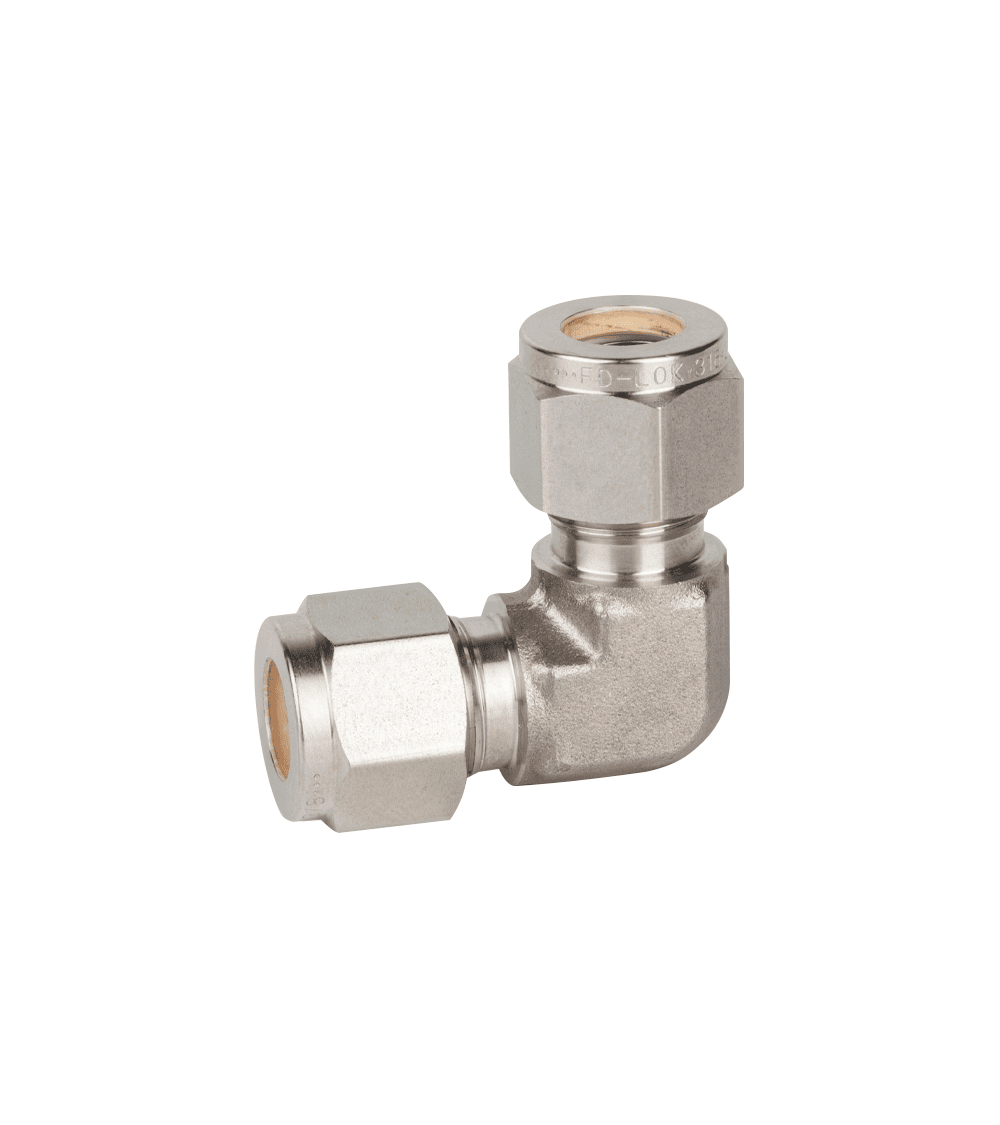

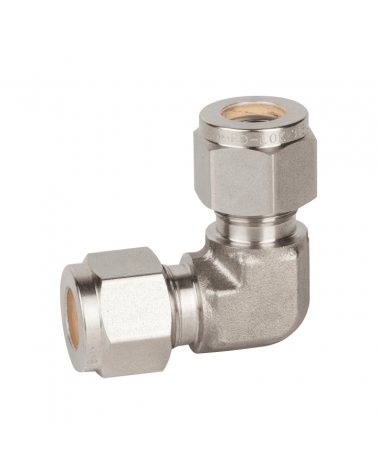

Elbow tube-tube (inch)
Elbow tube-tube for rigid tubing in inches, manufactured in stainless steel ASTM A182 (316). Design with double cone, under tightening nut and axial transmission of the closing pressure avoiding torsion in the tube. Front cone heat treated by nitriding. Application in pneumatic and hydraulic systems (sealing even with light gases: H2, He...). Easy disassembly and retightening (silver coating on the nut thread to avoid seizure). Maximum working pressure: 315 bar. Working temperature: -54ºC to 426ºC.
| REFERENCE | SIZE |
|---|---|
| 8402 02 02 | 1/4" x 1/4" |
| 8402 03 03 | 3/8" x 3/8" |
| 8402 04 04 | 1/2" x 1/2" |
€26.72
Tax excluded
