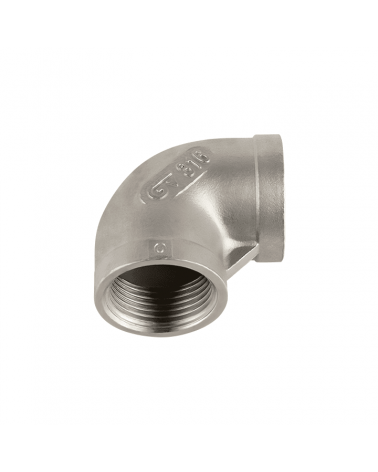

90º F-F elbow, manufactured in stainless steel 316 microfusion. BSP threads according to standard ISO 7-1 (EN 10226-1). Dimensions according to standard ISO 4144. Maximum working pressure: 20 bar (S-150). Working temperature: -20ºC +220ºC.
| REFERENCE | SIZE |
|---|---|
| 0090 02 | 1/4" |
| 0090 03 | 3/8" |
| 0090 04 | 1/2" |
| 0090 05 | 3/4" |
| 0090 06 | 1" |
| 0090 07 | 1 1/4" |
| 0090 08 | 1 1/2" |
| 0090 09 | 2" |
| 0090 10 | 2 1/2" |
| 0090 11 | 3" |
| 0090 12 | 4" |

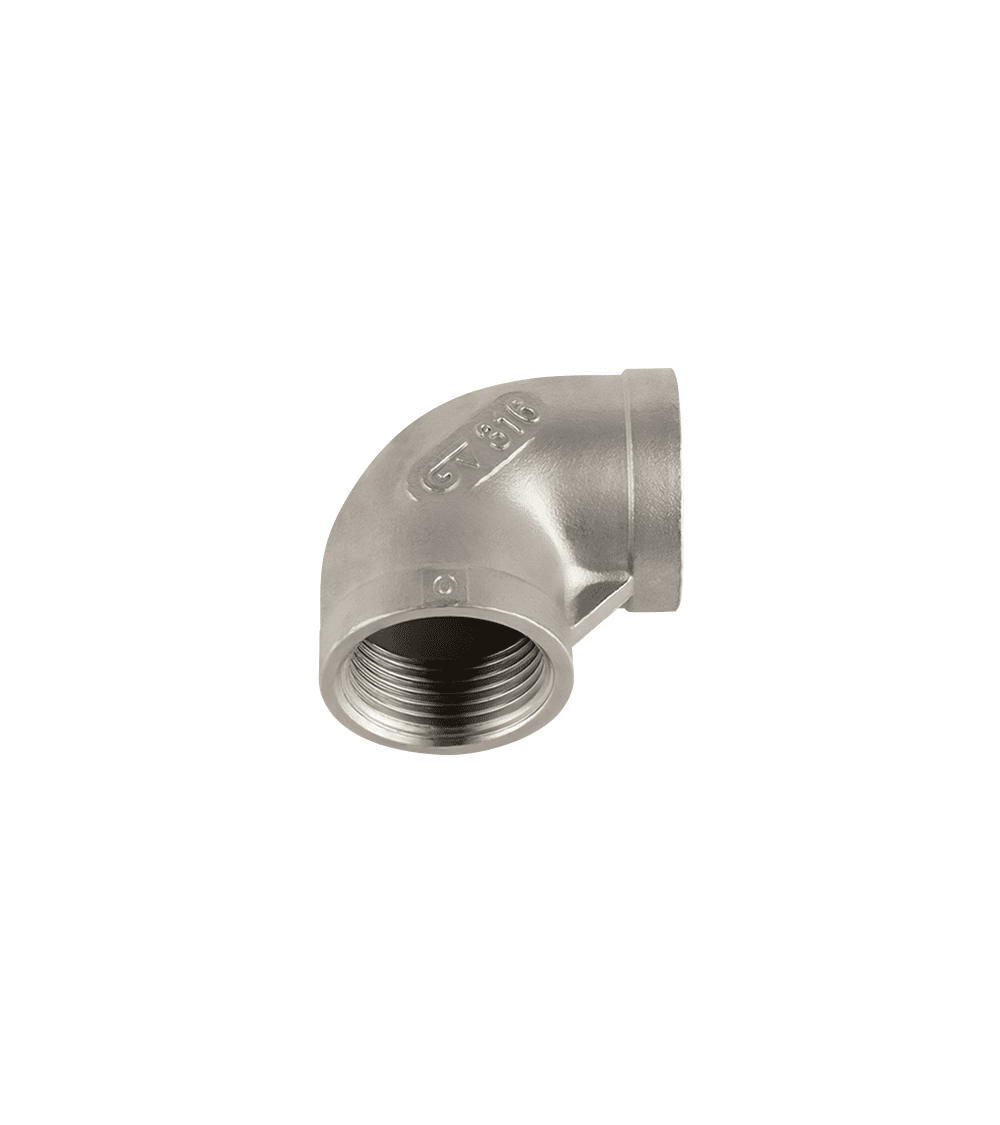

90° elbow F-F with BSP thread
90º F-F elbow, manufactured in stainless steel 316 microfusion. BSP threads according to standard ISO 7-1 (EN 10226-1). Dimensions according to standard ISO 4144. Maximum working pressure: 20 bar (S-150). Working temperature: -20ºC +220ºC.
| REFERENCE | SIZE |
|---|---|
| 0090 02 | 1/4" |
| 0090 03 | 3/8" |
| 0090 04 | 1/2" |
| 0090 05 | 3/4" |
| 0090 06 | 1" |
| 0090 07 | 1 1/4" |
| 0090 08 | 1 1/2" |
| 0090 09 | 2" |
| 0090 10 | 2 1/2" |
| 0090 11 | 3" |
| 0090 12 | 4" |
€2.33
Tax excluded
