45º F-F elbow, manufactured in stainless steel 316 microfusion. BSP threads according to standard ISO 7-1 (EN 10226-1). Dimensions according to standard ISO 4144. Maximum working pressure: 20 bar (S-150). Working temperature: -20ºC to 220ºC.
| REFERENCE | SIZE |
|---|---|
| 0120 02 | 1/4" |
| 0120 03 | 3/8" |
| 0120 04 | 1/2" |
| 0120 05 | 3/4" |
| 0120 06 | 1" |
| 0120 07 | 1 1/4" |
| 0120 08 | 1 1/2" |
| 0120 09 | 2" |
| 0120 10 | 2 1/2" |

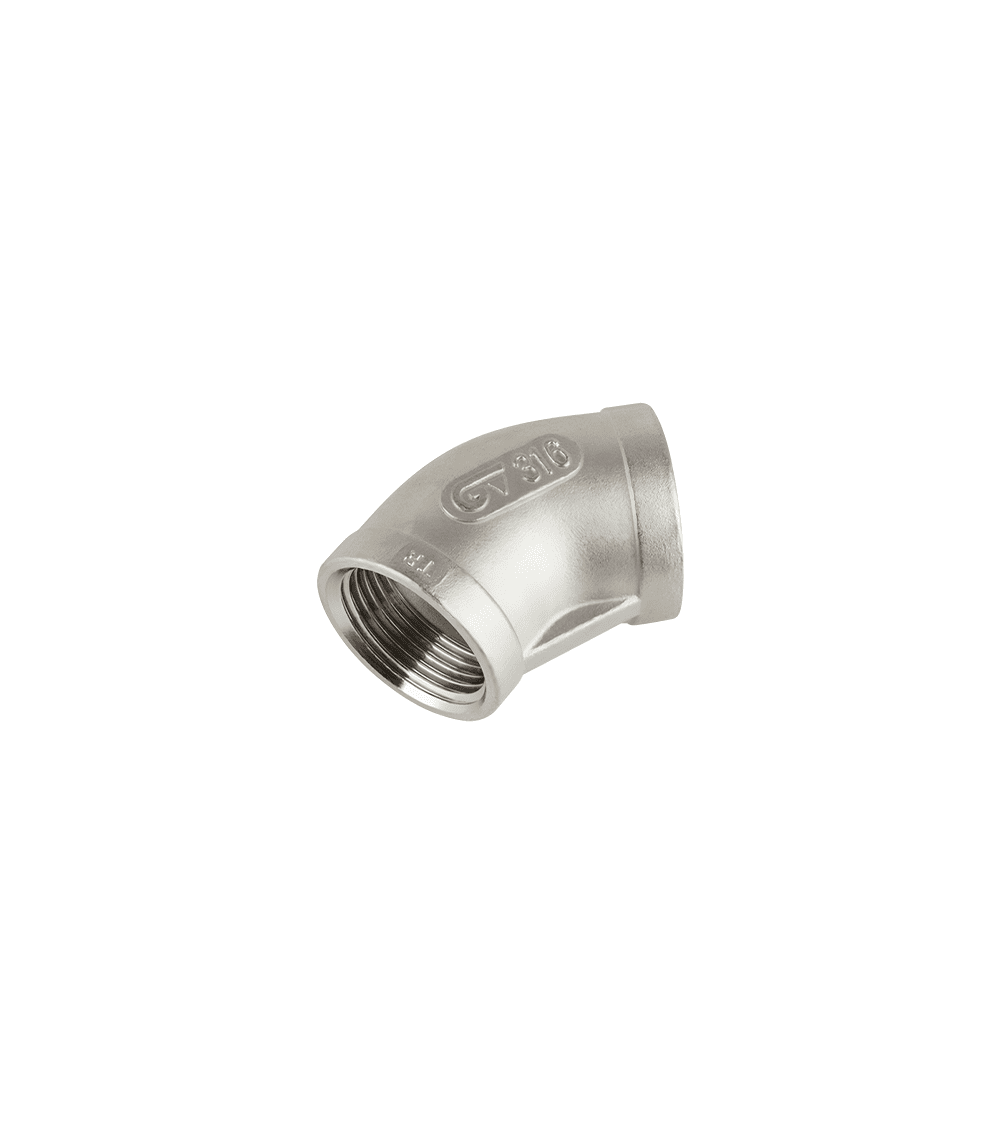

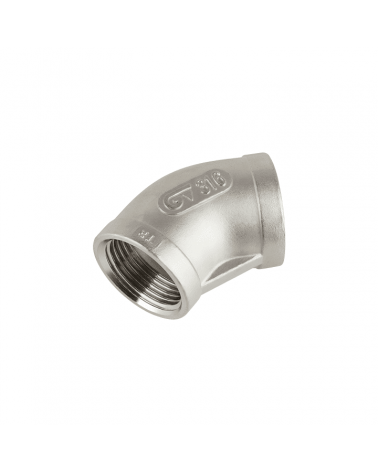

45° elbow F-F with BSP thread
45º F-F elbow, manufactured in stainless steel 316 microfusion. BSP threads according to standard ISO 7-1 (EN 10226-1). Dimensions according to standard ISO 4144. Maximum working pressure: 20 bar (S-150). Working temperature: -20ºC to 220ºC.
| REFERENCE | SIZE |
|---|---|
| 0120 02 | 1/4" |
| 0120 03 | 3/8" |
| 0120 04 | 1/2" |
| 0120 05 | 3/4" |
| 0120 06 | 1" |
| 0120 07 | 1 1/4" |
| 0120 08 | 1 1/2" |
| 0120 09 | 2" |
| 0120 10 | 2 1/2" |
€3.25
Tax excluded
