Two pieces ball valves, full bore, BSP threaded ends (DIN 259/2999). 1000 WOG (PN63), from 1/4" (DN8) to 4" (DN100). Stainless steel (1.4408) body. AISI-316 Ball and PTFE seats. Locking device. The valves are certified CE and ATEX.
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 2001S 08 | DN 8 (1/4") | 0.11 kg |
| 2001S 10 | DN 10 (3/8") | 0.14 kg |
| 2001S 15 | DN 15 (1/2") | 0.21 kg |
| 2001S 20 | DN 20 (3/4") | 0.32 kg |
| 2001S 25 | DN 25 (1") | 0.51 kg |
| 2001S 32 | DN 32 (1 1/4") | 0.79 kg |
| 2001S 40 | DN 40 (1 1/2") | 1.22 kg |
| 2001S 50 | DN 50 (2") | 1.94 kg |
| 2001S 65 | DN 65 (2 1/2") | 4.65 kg |
| 2001S 80 | DN 80 (3") | 6.91 kg |
| 2001S 100 | DN 100 (4") | 13.37 kg |

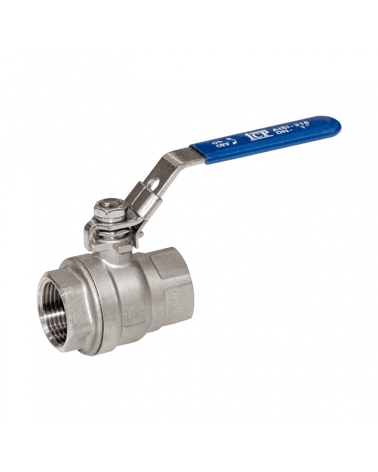

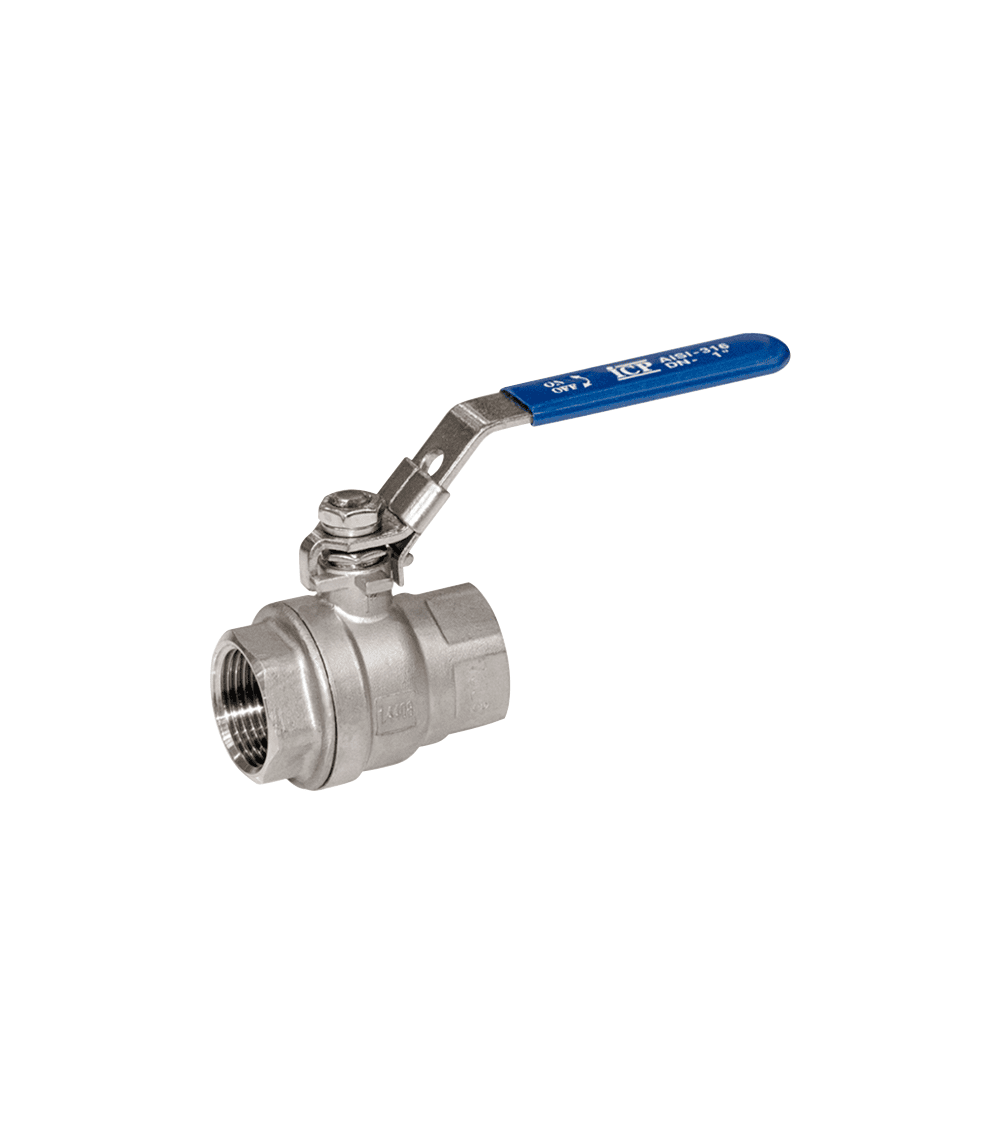

Full bore ball valve 2 pieces
Two pieces ball valves, full bore, BSP threaded ends (DIN 259/2999). 1000 WOG (PN63), from 1/4" (DN8) to 4" (DN100). Stainless steel (1.4408) body. AISI-316 Ball and PTFE seats. Locking device. The valves are certified CE and ATEX.
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 2001S 08 | DN 8 (1/4") | 0.11 kg |
| 2001S 10 | DN 10 (3/8") | 0.14 kg |
| 2001S 15 | DN 15 (1/2") | 0.21 kg |
| 2001S 20 | DN 20 (3/4") | 0.32 kg |
| 2001S 25 | DN 25 (1") | 0.51 kg |
| 2001S 32 | DN 32 (1 1/4") | 0.79 kg |
| 2001S 40 | DN 40 (1 1/2") | 1.22 kg |
| 2001S 50 | DN 50 (2") | 1.94 kg |
| 2001S 65 | DN 65 (2 1/2") | 4.65 kg |
| 2001S 80 | DN 80 (3") | 6.91 kg |
| 2001S 100 | DN 100 (4") | 13.37 kg |
€8.20
Tax excluded
