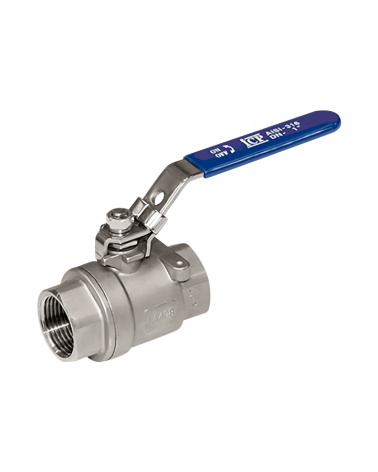

Two pieces ball valves, full bore, BSP threaded ends. 1000 WOG (PN63), from 1/4" (DN8) to 4" (DN100). Stainless steel (1.4408) body. AISI-316 ball and PTFE seats. Locking device. The valves are certified CE and ATEX.
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 2001 08 | DN 8 (1/4") | 0.2 kg |
| 2001 10 | DN 10 (3/8") | 0.21 kg |
| 2001 15 | DN 15 (1/2") | 0.29 kg |
| 2001 20 | DN 20 (3/4") | 0.44 kg |
| 2001 25 | DN 25 (1") | 0.62 kg |
| 2001 32 | DN 32 (1 1/4") | 1.08 kg |
| 2001 40 | DN 40 (1 1/2") | 1.49 kg |
| 2001 50 | DN 50 (2") | 2.56 kg |
| 2001 65 | DN 65 (2 1/2") | 5.04 kg |
| 2001 80 | DN 80 (3") | 8.15 kg |
| 2001 100 | DN 100 (4") | 18.4 kg |

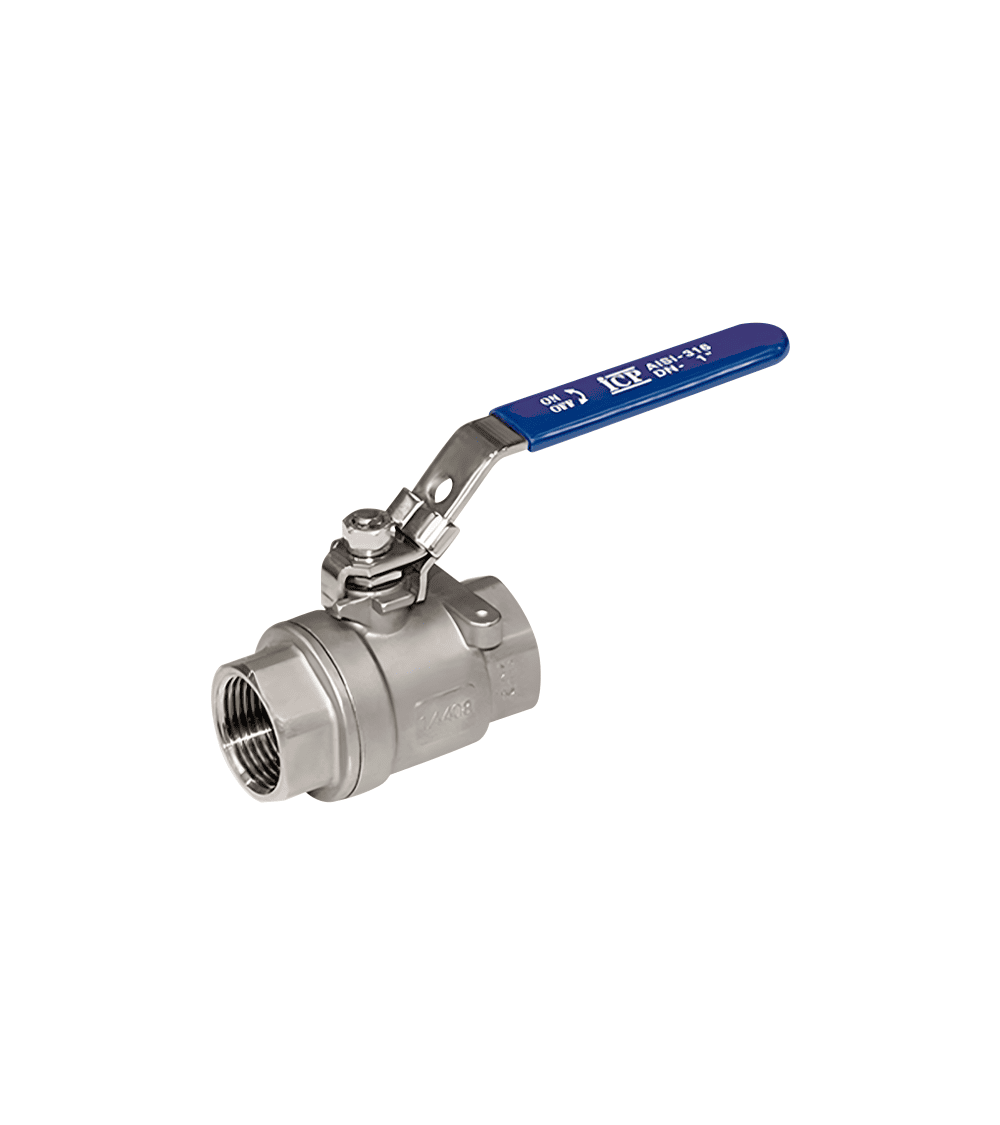

Full bore ball valve 2 pieces
Two pieces ball valves, full bore, BSP threaded ends. 1000 WOG (PN63), from 1/4" (DN8) to 4" (DN100). Stainless steel (1.4408) body. AISI-316 ball and PTFE seats. Locking device. The valves are certified CE and ATEX.
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 2001 08 | DN 8 (1/4") | 0.2 kg |
| 2001 10 | DN 10 (3/8") | 0.21 kg |
| 2001 15 | DN 15 (1/2") | 0.29 kg |
| 2001 20 | DN 20 (3/4") | 0.44 kg |
| 2001 25 | DN 25 (1") | 0.62 kg |
| 2001 32 | DN 32 (1 1/4") | 1.08 kg |
| 2001 40 | DN 40 (1 1/2") | 1.49 kg |
| 2001 50 | DN 50 (2") | 2.56 kg |
| 2001 65 | DN 65 (2 1/2") | 5.04 kg |
| 2001 80 | DN 80 (3") | 8.15 kg |
| 2001 100 | DN 100 (4") | 18.4 kg |
€10.30
Tax excluded
