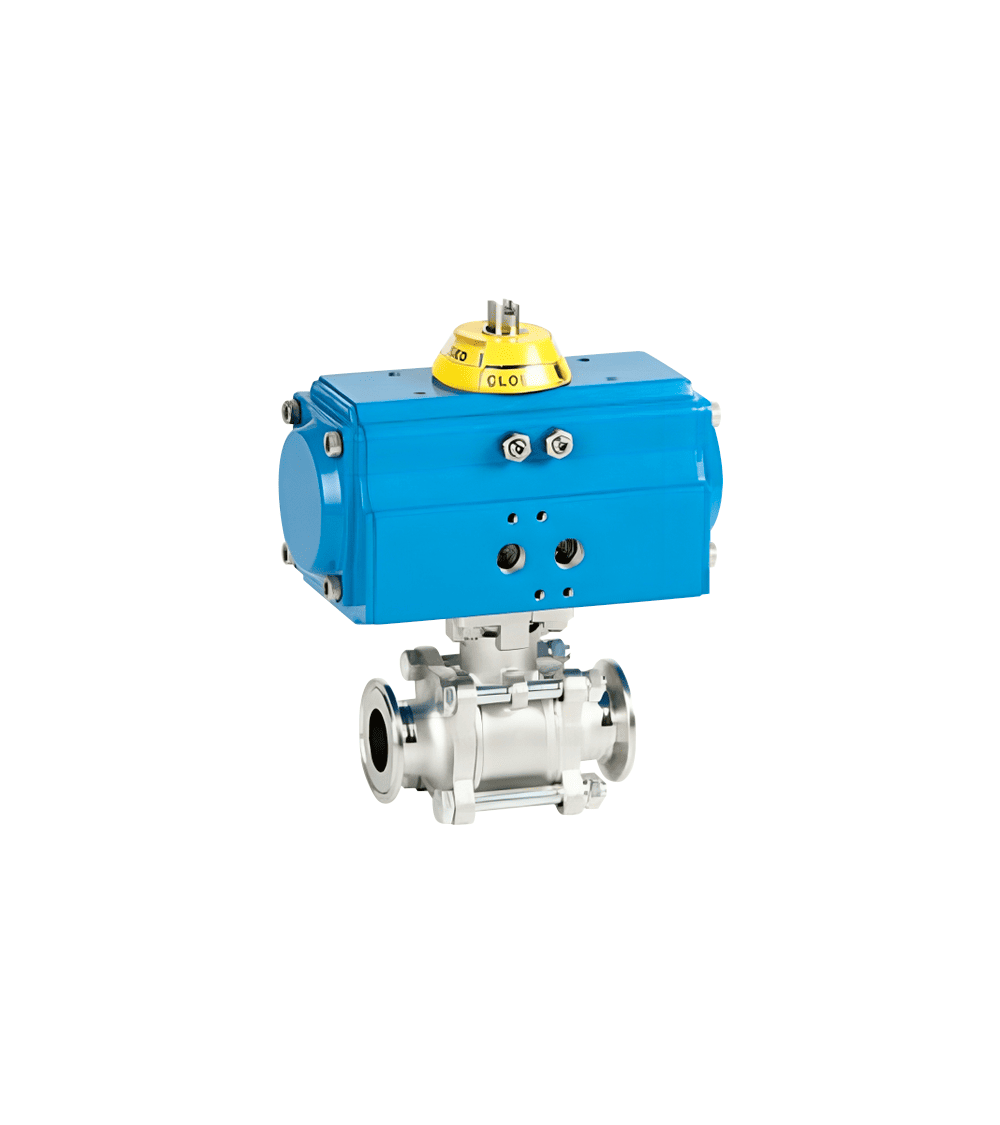

3-piece Clamp ball valve (REF. 2933) with GNP single-acting pneumatic actuator. Full bore. Stainless steel construction 1.4408 (CF8M). Integral seats and shaft seals: PTFE. FPM (viton) O-ring on shaft. Anti-static device. Internal polishing of body and ball (Ra 0.8 μm). External polishing (electro-polishing). Manual lever handle with safety lock. Direct actuator mounting according to ISO 5211. Working temperature: -25ºC +180ºC. Maximum working pressure: 25 bar.
| REFERENCE | SIZE | ACTUATOR | WEIGHT |
|---|---|---|---|
| 5013 04 126 | 1/2" | GNP-24/S5 | 2.24 kg |
| 5013 05 134 | 3/4" | GNP-44/S4 | 3.83 kg |
| 5013 06 136 | 1" | GNP-44/S5 | 3.84 kg |
| 5013 08 144 | 1 1/2" | GNP-94/S5 | 7.08 kg |
| 5013 09 148 | 2" | GNP-135/S5 | 10.40 kg |
| 5013 10 152 | 2 1/2" | GNP-198/S4 | 15.10 kg |
| 5013 11 160 | 3" | GNP-300/S5 | 31.88 kg |
| 5013 12 164 | 4" | GNP-513/S5 | 43.08 kg |

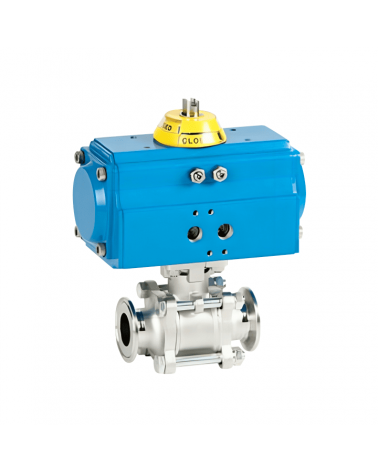

3-piece Clamp ball valve with single-acting pneumatic actuator
3-piece Clamp ball valve (REF. 2933) with GNP single-acting pneumatic actuator. Full bore. Stainless steel construction 1.4408 (CF8M). Integral seats and shaft seals: PTFE. FPM (viton) O-ring on shaft. Anti-static device. Internal polishing of body and ball (Ra 0.8 μm). External polishing (electro-polishing). Manual lever handle with safety lock. Direct actuator mounting according to ISO 5211. Working temperature: -25ºC +180ºC. Maximum working pressure: 25 bar.
| REFERENCE | SIZE | ACTUATOR | WEIGHT |
|---|---|---|---|
| 5013 04 126 | 1/2" | GNP-24/S5 | 2.24 kg |
| 5013 05 134 | 3/4" | GNP-44/S4 | 3.83 kg |
| 5013 06 136 | 1" | GNP-44/S5 | 3.84 kg |
| 5013 08 144 | 1 1/2" | GNP-94/S5 | 7.08 kg |
| 5013 09 148 | 2" | GNP-135/S5 | 10.40 kg |
| 5013 10 152 | 2 1/2" | GNP-198/S4 | 15.10 kg |
| 5013 11 160 | 3" | GNP-300/S5 | 31.88 kg |
| 5013 12 164 | 4" | GNP-513/S5 | 43.08 kg |
€229.56
Tax excluded
