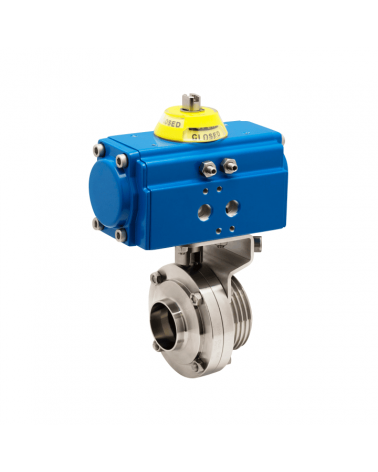

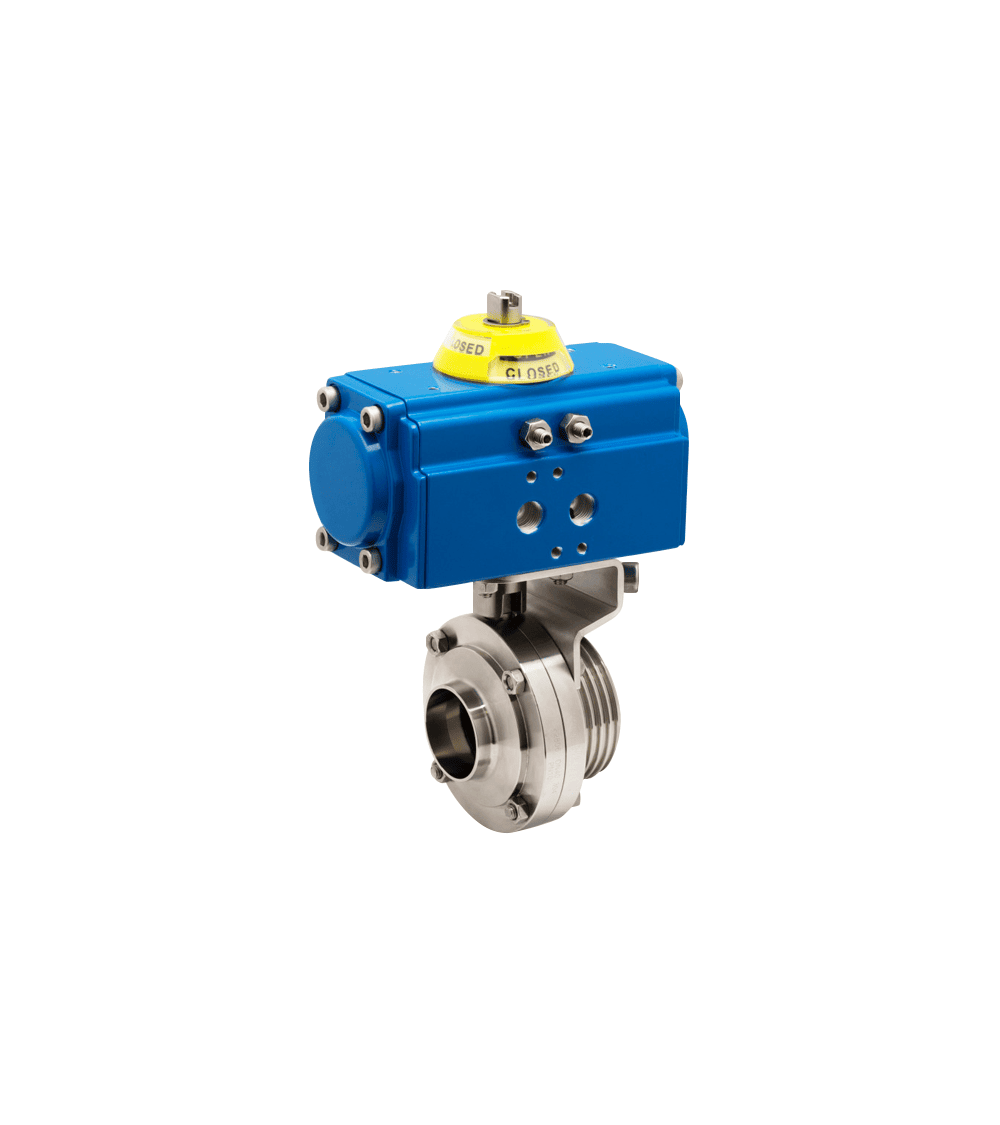

Butterfly valve threaded/welding ends with single-acting pneumatic actuator — Butterfly valve threaded/welding ends (REF. 2942E) with GNP single-acting pneumatic actuator. Threaded/welding ends according to DIN 11851. Body in stainless steel AISI 304. Elastomer: EPDM. Manual operation, 3 positions. Reduced weight and dimensions. Easy cleaning and assembly. Easy automation. Sanitary polishing (Ra ≤ 0.8 μm). Low torque. Maximum working pressure: 10 bar. Maximum working temperature: 120ºC.

REFERENCE DN ACTUATOR WEIGHT
5942E 06 126 25 GNP-24/S4 2.73 kg
5942E 07 126 32 GNP-24/S4 2.70 kg
5942E 08 126 40 GNP-24/S4 2.93 kg
5942E 09 134 50 GNP-44/S4 4.13 kg
5942E 10 140 65 GNP-60/S5 5.60 kg
5942E 11 140 80 GNP-60/S5 6.05 kg
5942E 12 144 100 GNP-94/S5 7.85 kg

TECHNICAL DATA — Butterfly valve threaded/welding ends (REF. 2942E) with GNP single-acting pneumatic actuator. Threaded/welding ends according to DIN 11851. Body in stainless steel AISI 304. Elastomer: EPDM. Manual operation, 3 positions. Reduced weight and dimensions. Easy cleaning and assembly. Easy automation. Sanitary polishing (Ra ≤ 0.8 μm). Low torque. Maximum working pressure: 10 bar. Maximum working temperature: 120ºC.

REFERENCE DN ACTUATOR WEIGHT
5942E 06 126 25 GNP-24/S4 2.73 kg
5942E 07 126 32 GNP-24/S4 2.70 kg
5942E 08 126 40 GNP-24/S4 2.93 kg
5942E 09 134 50 GNP-44/S4 4.13 kg
5942E 10 140 65 GNP-60/S5 5.60 kg
5942E 11 140 80 GNP-60/S5 6.05 kg
5942E 12 144 100 GNP-94/S5 7.85 kg

Butterfly valve threaded/welding ends with single-acting pneumatic actuator

Butterfly valve threaded/welding ends (REF. 2942E) with GNP single-acting pneumatic actuator. Threaded/welding ends according to DIN 11851. Body in stainless steel AISI 304. Elastomer: EPDM. Manual operation, 3 positions. Reduced weight and dimensions. Easy cleaning and assembly. Easy automation. Sanitary polishing (Ra ≤ 0.8 μm). Low torque. Maximum working pressure: 10 bar. Maximum working temperature: 120ºC.

REFERENCE	DN	ACTUATOR	WEIGHT
5942E 06 126	25	GNP-24/S4	2.73 kg
5942E 07 126	32	GNP-24/S4	2.70 kg
5942E 08 126	40	GNP-24/S4	2.93 kg
5942E 09 134	50	GNP-44/S4	4.13 kg
5942E 10 140	65	GNP-60/S5	5.60 kg
5942E 11 140	80	GNP-60/S5	6.05 kg
5942E 12 144	100	GNP-94/S5	7.85 kg

€278.92

Tax excluded

Size: DN25

Quantity

CONSULT DELIVERY TIME

You might also like

Butterfly valve Clamp ends with single-acting pneumatic actuator

€321.84

Butterfly valve Clamp ends (REF. 2940) with GNP single-acting pneumatic actuator. Clamp ends in inches (BS 4825-3). AISI 316L stainless steel...

Butterfly valve threaded ends with single-acting pneumatic actuator

€281.79

Butterfly valve threaded ends (REF. 2941E) with GNP single-acting pneumatic actuator. Threaded ends according to DIN 11851. Body in stainless...

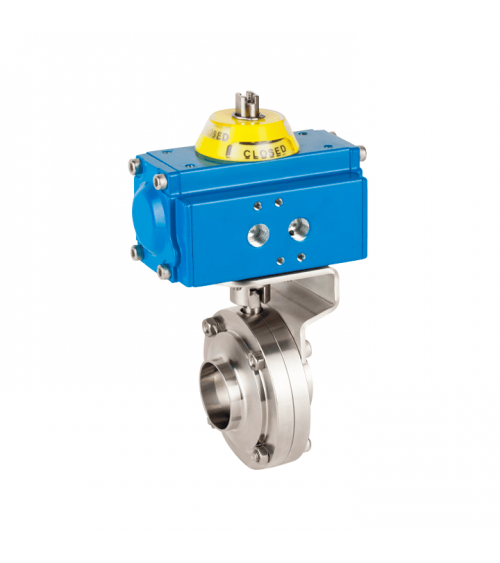

Butterfly valve welded/welded ends with single-acting pneumatic actuator
