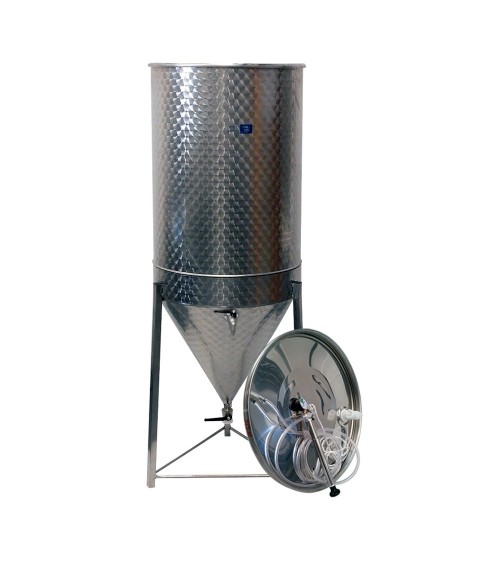

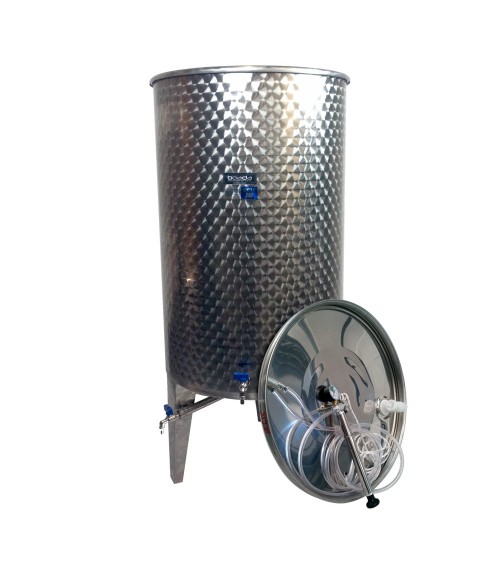

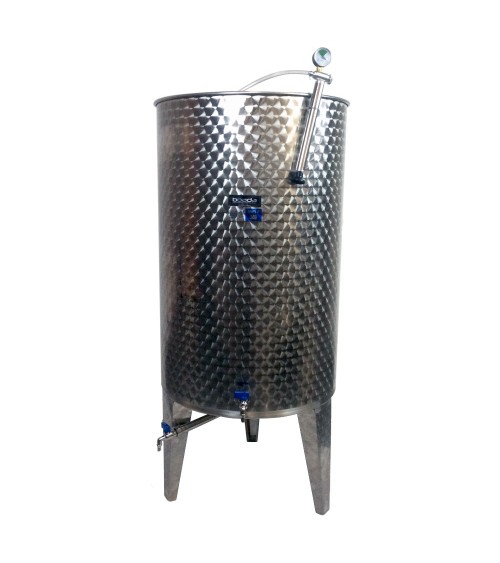

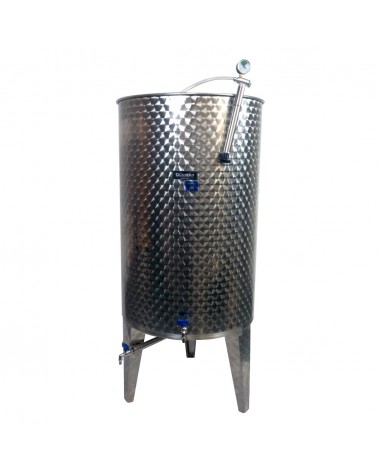

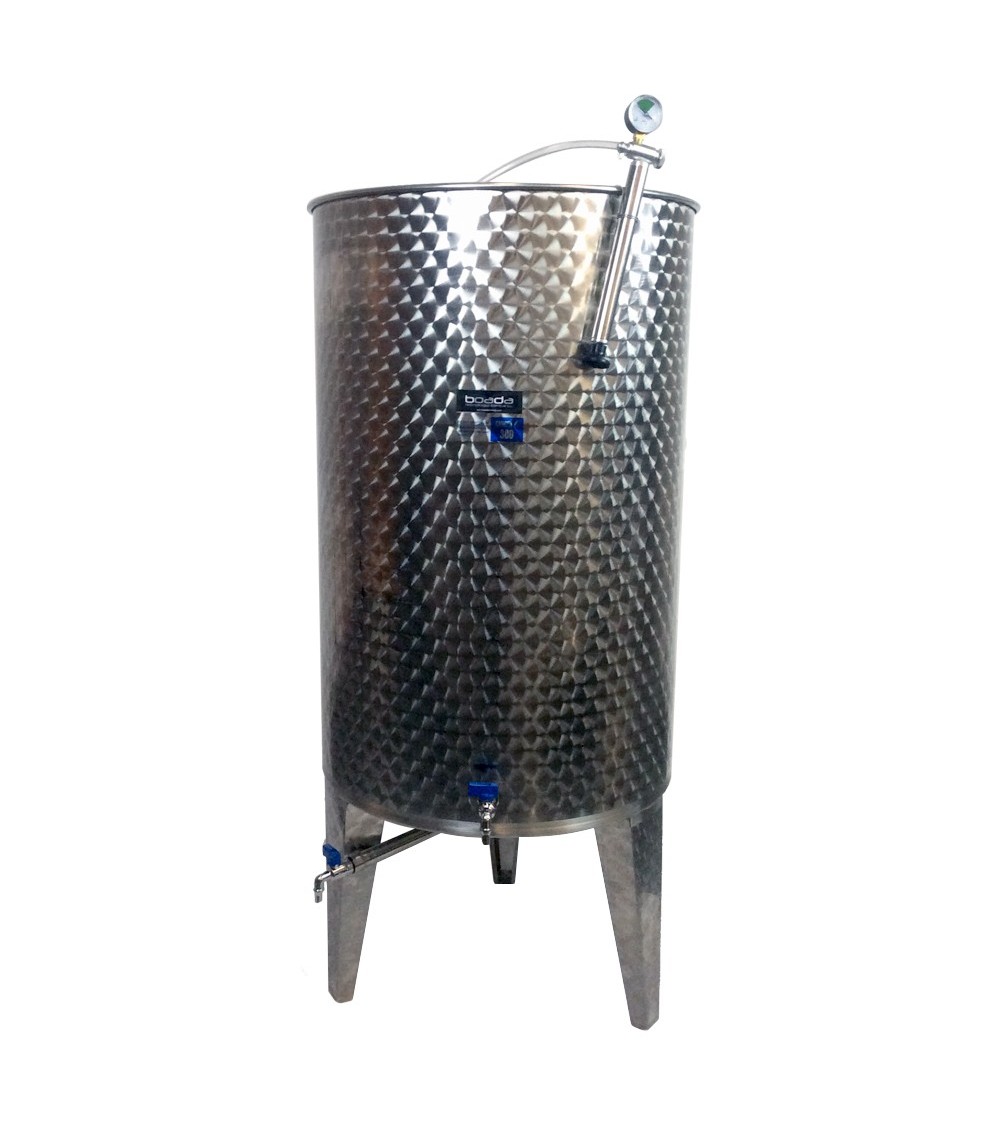

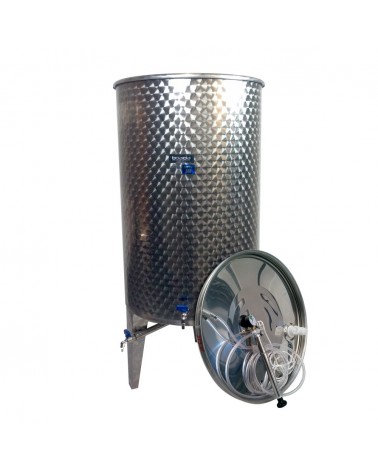

Stainless steel tank with conical bottom and floating lid - up to 2,000 litres

Stainless steel tank with conical bottom, lid always full and legs.

Standard accessories:

- Floating top cover.

- Air chamber.

- Double acting valve.

- Pressure gauge.

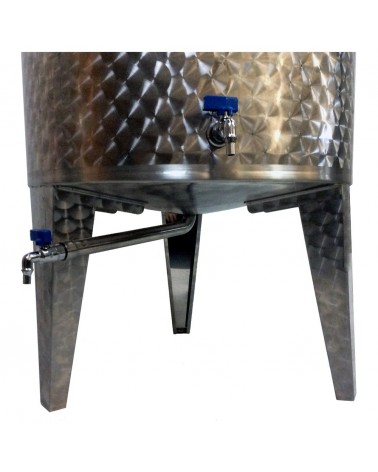

- 2 ball valves.

- 3 legs of 400 mm welded on the tank.

- Interior mirror polished.

- The 1,500 and 2,000 litre tanks come with arm, sampler, ladder support and level marker included.

Optional:

- 300 mm diameter frontal door.

CAPACITY	DIAMETER	TOTAL HEIGHT	CYLINDER THICKNESS	BOTTOM THICKNESS
60 litres	400 mm	900 mm	0.7 mm	1.2 mm
100 litres	420 mm	1,200 mm	0.7 mm	1.2 mm
150 litres	525 mm	1,150 mm	0.7 mm	1.2 mm
200 litres	525 mm	1,400 mm	0.7 mm	1.2 mm
300 litres	640 mm	1,400 mm	0.7 mm	1.2 mm
400 litres	720 mm	1,400 mm	0.7 mm	1.2 mm
500 litres	720 mm	1,650 mm	0.8 mm	1.2 mm
600 litres	800 mm	1,650 mm	0.8 mm	1.2 mm
800 litres	930 mm	1,650 mm	0.8 mm	1.2 mm
1,000 (A) litres	930 mm	1,900 mm	1 mm	1.2 mm
1,000 (B) litres	1,025 mm	1,650 mm	1 mm	1.2 mm
1,500 litres	1,150 mm	2,200 mm	1.2 mm	1.5 mm
2,000 (A) litres	1,150 mm	2,700 mm	1.2 mm	1.5 mm
2,000 (B) litres	1,320 mm	2,200 mm	1.2 mm	1.5 mm

For capacities above 2,000 litres and for the price of 400, 600, 800, 1,000, 1,500 and 2,000 litres tanks, please contact us.

€450.00

Tax excluded Delivery 3 to 4 days except sale

Capacity: 100 litres
