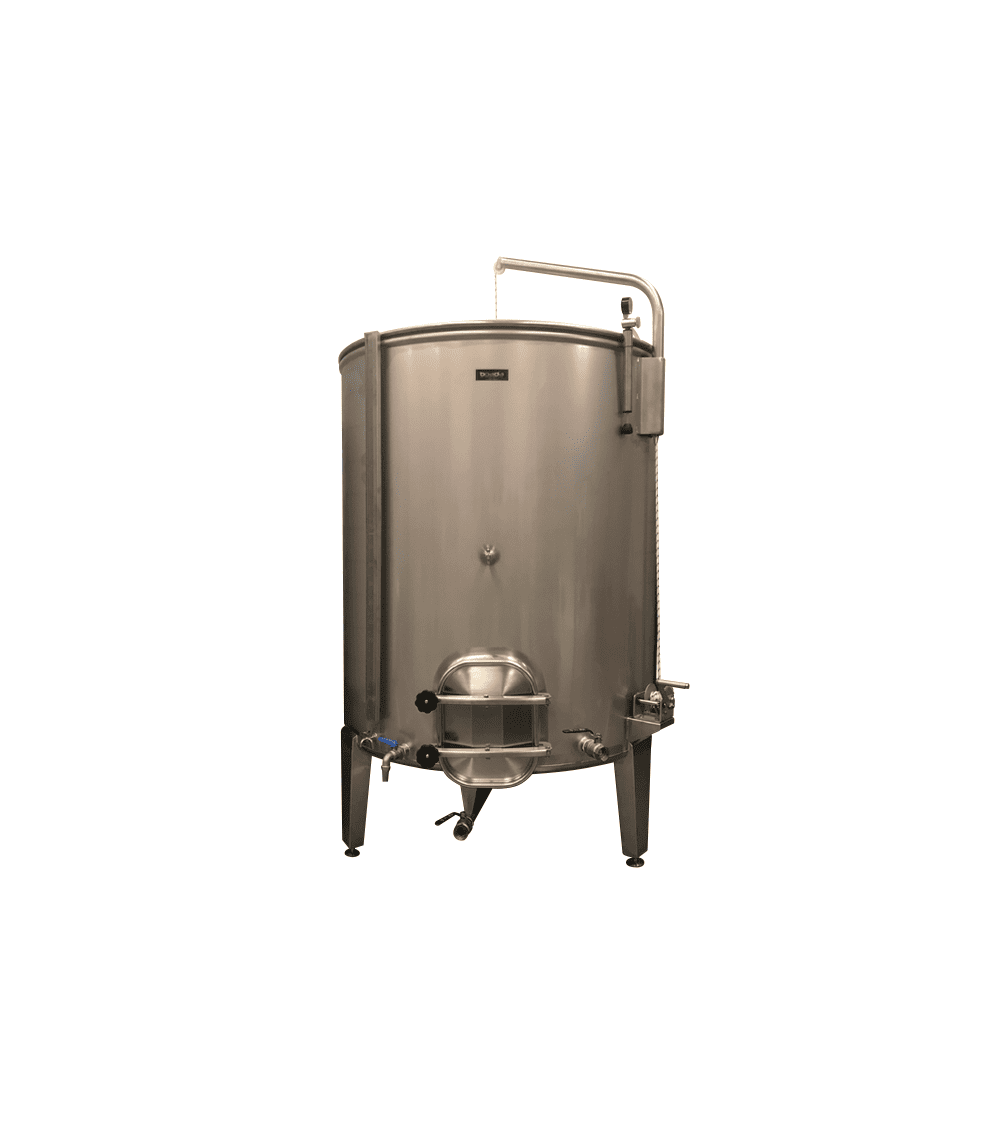

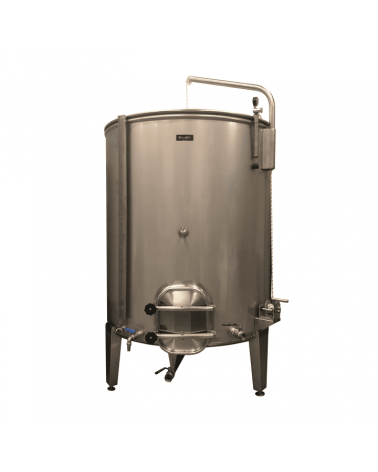

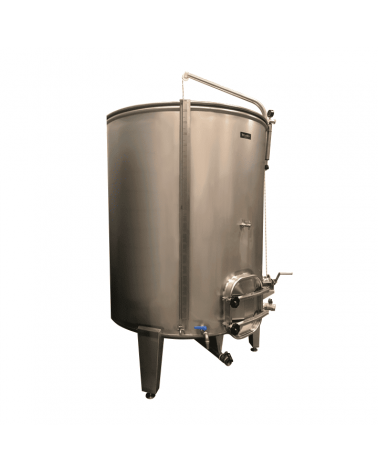

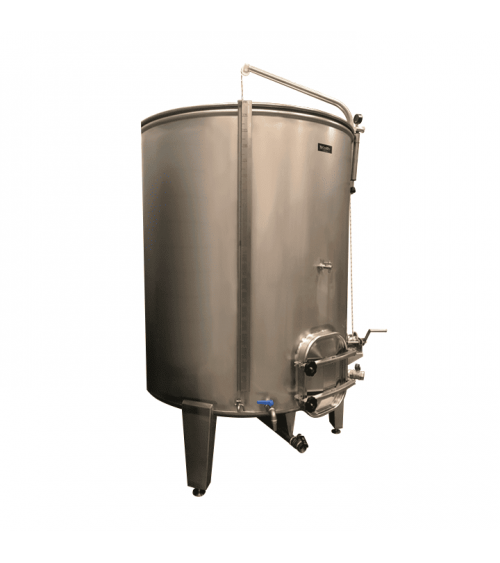

Conical bottom stainless steel tank, floating lid and legs.
Standard accessories:
- Floating top cover.
- Air chamber.
- Double acting valve.
- Inflate chamber pump.
- 2 ball valves.
- 3 stainless steel legs welded to the tank.
- Height adjustable legs.
- Level with protection.
- Front door with external opening.
- Arm.
- Interior and exterior AISI 304 2B.
| CAPACITY | INNER DIAMETER | TOTAL HEIGHT | LOWER DOOR DIMENSIONS | LEG HEIGHT | CYLINDER THICKNESS | BOTTOM THICKNESS |
|---|---|---|---|---|---|---|
| 1,500 litres | 1,194 mm | 1,755 mm | 300/385 mm | 385 mm | 1.2 mm | 1.2 mm |
| 2,000 litres | 1,270 mm | 1,945 mm | 300/385 mm | 475 mm | 1.2 mm | 1.5 mm |
| 2,500 litres | 1,430 mm | 1,945 mm | 300/385 mm | 475 mm | 1.2 mm | 1.5 mm |
| 3,000 litres | 1,580 mm | 1,945 mm | 300/385 mm | 475 mm | 1.2 mm | 1.5 mm |
Floating lid tank
Conical bottom stainless steel tank, floating lid and legs.
Standard accessories:
- Floating top cover.
- Air chamber.
- Double acting valve.
- Inflate chamber pump.
- 2 ball valves.
- 3 stainless steel legs welded to the tank.
- Height adjustable legs.
- Level with protection.
- Front door with external opening.
- Arm.
- Interior and exterior AISI 304 2B.
| CAPACITY | INNER DIAMETER | TOTAL HEIGHT | LOWER DOOR DIMENSIONS | LEG HEIGHT | CYLINDER THICKNESS | BOTTOM THICKNESS |
|---|---|---|---|---|---|---|
| 1,500 litres | 1,194 mm | 1,755 mm | 300/385 mm | 385 mm | 1.2 mm | 1.2 mm |
| 2,000 litres | 1,270 mm | 1,945 mm | 300/385 mm | 475 mm | 1.2 mm | 1.5 mm |
| 2,500 litres | 1,430 mm | 1,945 mm | 300/385 mm | 475 mm | 1.2 mm | 1.5 mm |
| 3,000 litres | 1,580 mm | 1,945 mm | 300/385 mm | 475 mm | 1.2 mm | 1.5 mm |
€2,430.00
Tax excluded
