Sanitary line butterfly valve with Clamp ends in inches (BS 4825-3). AISI 316L stainless steel construction. EPDM elastomer. Manual operation, three positions. Reduced weight and dimensions. Easy cleaning and assembly. Easy automation. Sanitary polish (Ra ≤ 0,8 μm). Low torque. Maximum working pressure: 10 bar. Maximum working temperature: 120ºC.
| REFERENCE | SIZE | DN | WEIGHT |
|---|---|---|---|
| 2940 06 | 1" | 25 | 1.29 kg |
| 2940 08 | 1 1/2" | 40 | 1.27 kg |
| 2940 09 | 2" | 50 | 1.81 kg |
| 2940 10 | 2 1/2" | 65 | 2.22 kg |
| 2940 11 | 3" | 80 | 2.61 kg |
| 2940 12 | 4" | 100 | 3.48 kg |

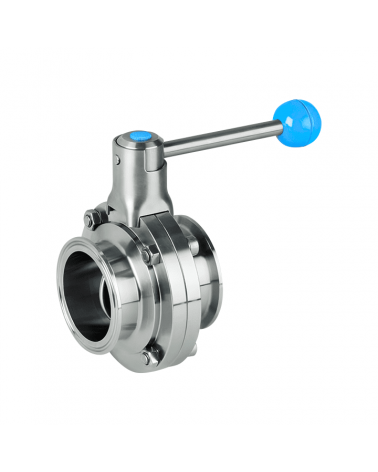

Butterfly valve with Clamp ends
Sanitary line butterfly valve with Clamp ends in inches (BS 4825-3). AISI 316L stainless steel construction. EPDM elastomer. Manual operation, three positions. Reduced weight and dimensions. Easy cleaning and assembly. Easy automation. Sanitary polish (Ra ≤ 0,8 μm). Low torque. Maximum working pressure: 10 bar. Maximum working temperature: 120ºC.
| REFERENCE | SIZE | DN | WEIGHT |
|---|---|---|---|
| 2940 06 | 1" | 25 | 1.29 kg |
| 2940 08 | 1 1/2" | 40 | 1.27 kg |
| 2940 09 | 2" | 50 | 1.81 kg |
| 2940 10 | 2 1/2" | 65 | 2.22 kg |
| 2940 11 | 3" | 80 | 2.61 kg |
| 2940 12 | 4" | 100 | 3.48 kg |
€124.63
Tax excluded
