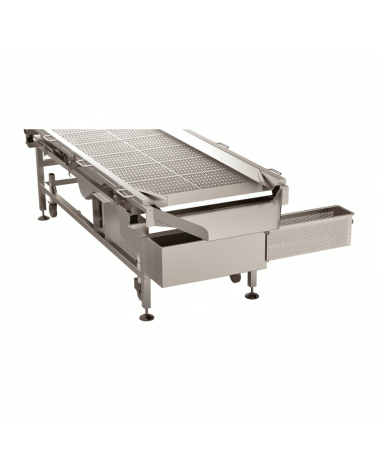

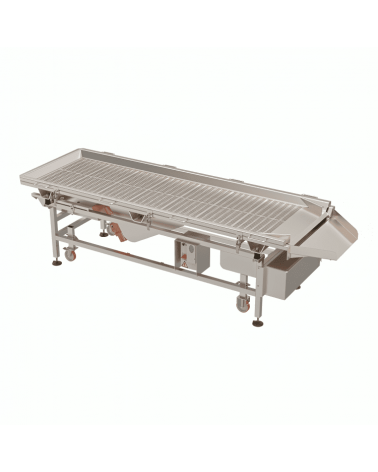

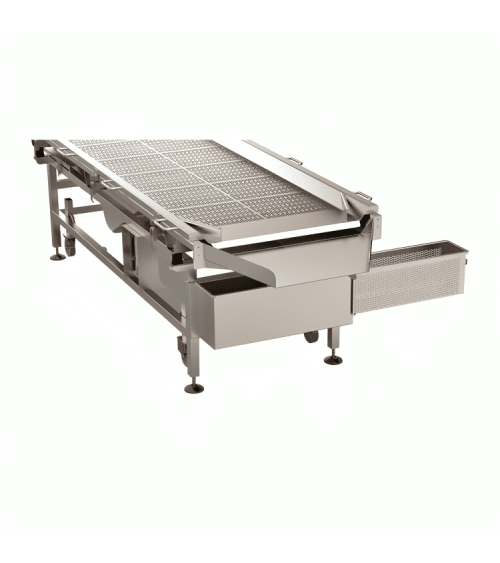

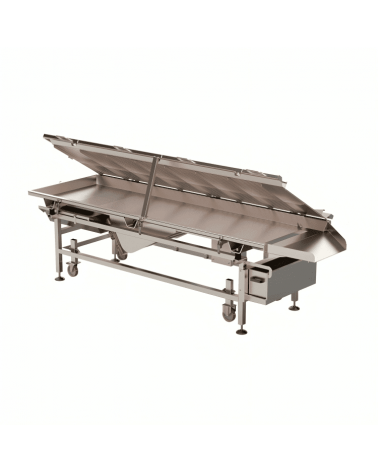

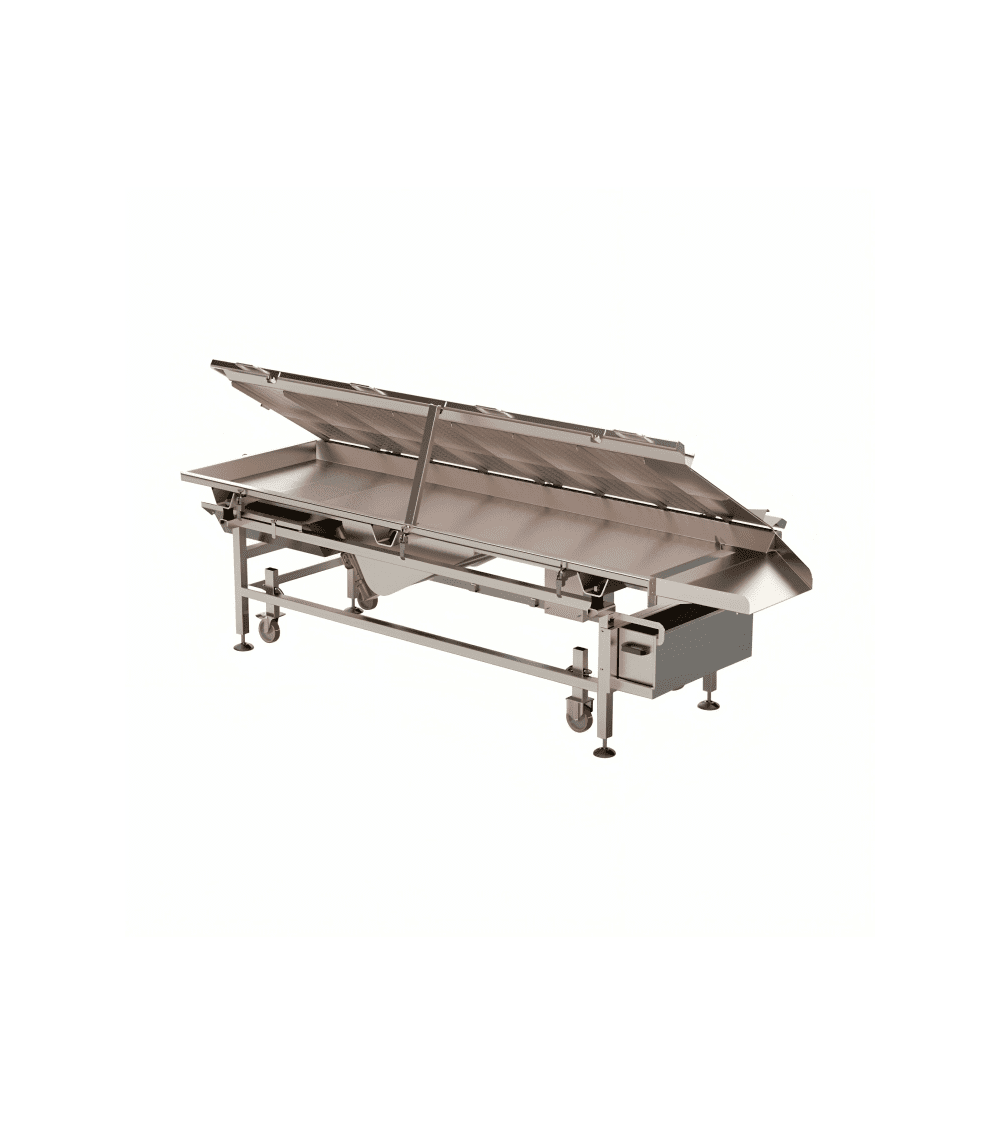

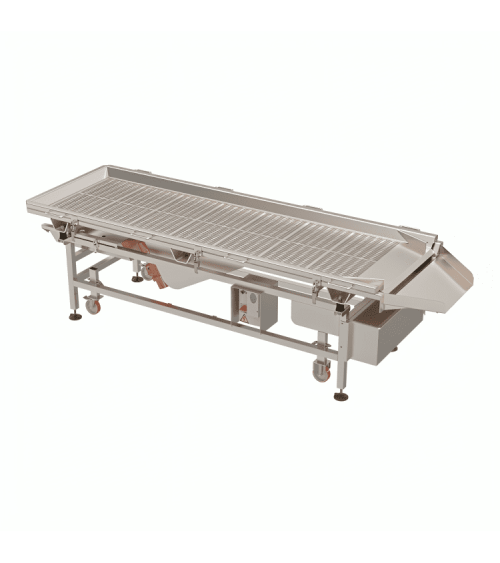

Vibrating sorting table 04 designed for sorting grapes harvested by hand, by machine or destemmed grapes. This table has several perforations along its entire length in order to ensure a total separation of the unwanted parts. Bunches and other unwanted parts can be separated manually. At the bottom of the table there is a grid with small holes in order to collect the must in a tray. When leaving the table, the solid discarded parts are collected in a manual discharge drawer. The cleaning of this machine is much easier thanks to its support, which allows to keep the upper part of the perforated table elevated, once the specific lever locks are unhooked.
It is also equipped with an electric panel with electronic variator that allows to quickly modify the grape feed speed. This vibrating sorting table 04 is equipped with wheels for easy movement and can be positioned on 4 height-adjustable anti-vibration feet while working.
| REFERENCE | PRODUCTION | DIMENSIONS | POWER | WEIGHT |
|---|---|---|---|---|
| TSA800 | 2,000 to 10,000 kg/hour | 3,417 x 1,177 x h. 950 mm | 1.25 kW | 450 kg |
Vibrating sorting table 04
Vibrating sorting table 04 designed for sorting grapes harvested by hand, by machine or destemmed grapes. This table has several perforations along its entire length in order to ensure a total separation of the unwanted parts. Bunches and other unwanted parts can be separated manually. At the bottom of the table there is a grid with small holes in order to collect the must in a tray. When leaving the table, the solid discarded parts are collected in a manual discharge drawer. The cleaning of this machine is much easier thanks to its support, which allows to keep the upper part of the perforated table elevated, once the specific lever locks are unhooked.
It is also equipped with an electric panel with electronic variator that allows to quickly modify the grape feed speed. This vibrating sorting table 04 is equipped with wheels for easy movement and can be positioned on 4 height-adjustable anti-vibration feet while working.
| REFERENCE | PRODUCTION | DIMENSIONS | POWER | WEIGHT |
|---|---|---|---|---|
| TSA800 | 2,000 to 10,000 kg/hour | 3,417 x 1,177 x h. 950 mm | 1.25 kW | 450 kg |
