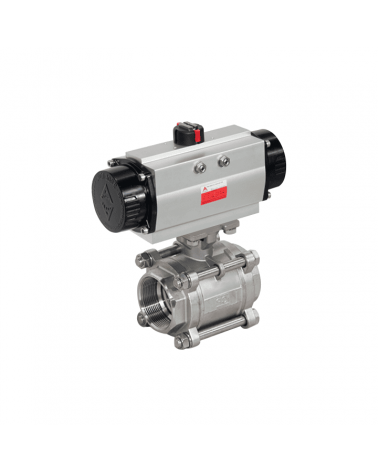

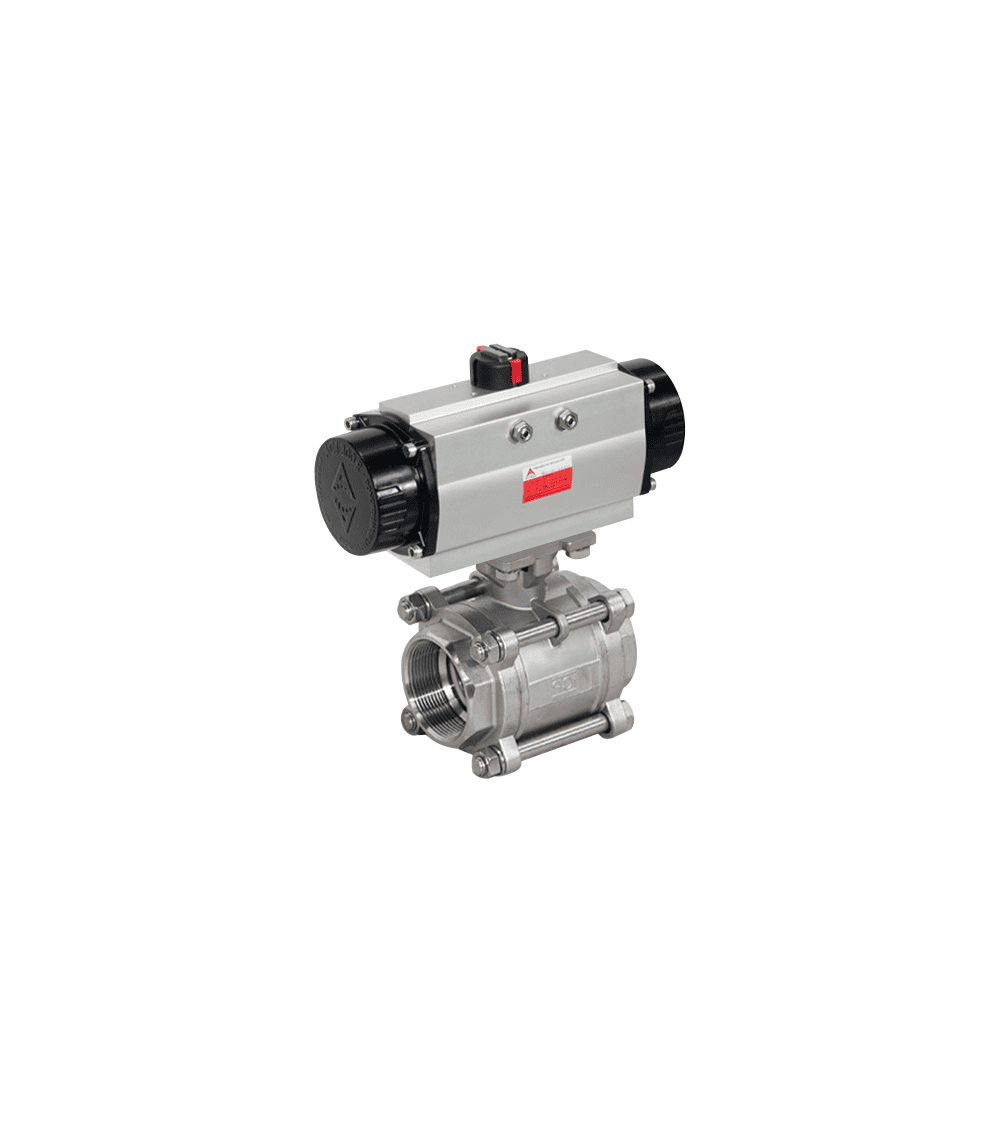

3 piece full bore ball valve with single-acting pneumatic actuator

3-piece full bore ball valve, BSP threaded (DIN 259/2999). ISO 5211 connection for mounting on pneumatic or electric actuators. 1000 WOG (PN63), ISO 5211, from 1/4" (DN8) to 4" (DN100). Body in stainless steel (1.4408). Ball in AISI-316, seats in PTFE. Locking device. The valves are CE and ATEX certified. Ball valve with pneumatic actuator ASR with 6 bar air pressure, at maximum differential pressure and with clean water at ambient temperature.

REFERENCESIZEACTUATOR
140IMF08ASR DN 8 ASR-20
140IMF10ASR DN 10 ASR-20
140IMF15ASR DN 15 ASR-20
140IMF20ASR DN 20 ASR-20
140IMF25ASR DN 25 ASR-40
140IMF32ASR DN 32 ASR-80
140IMF40ASR DN 40 ASR-80
140IMF50ASR DN 50 ASR-130
140IMF65ASR DN 65 ASR-200
140IMF80ASR DN 80 ASR-300
140IMF100ASR DN 100 ASR-850
€143.00
Tax excluded
Size: DN8
Quantity
CONSULT DELIVERY TIME
