Flanged two pieces ball valves, full bore, flanges PN40 and PN16, from DN15 to DN200. Stainless steel (1.4408) and carbon steel (1.0619) body, AISI-316 ball and modified PTFE seats. Antistatic device. Locking device. Stem is according EN 15081. Face-to-face according with EN 558-1 SERIE 27 (DIN 3202 F18). The valves are certified CE, ATEX, FIRE SAFE (according ISO 10497:2004) and FUGITIVE EMISSION (according ISO 15848-1:2006). Ball valve with pneumatic actuator with selection at 6 bar air pressure, at maximum differential pressure and with clean water at ambient temperature.
Fig. 415. PN40:
| REFERENCE | SIZE | ACTUATOR |
|---|---|---|
| 415IIT15ASR | 1/2" | ASR-20 |
| 415IIT20ASR | 3/4" | ASR-40 |
| 415IIT25ASR | 1" | ASR-40 |
| 415IIT40ASR | 1 1/2" | ASR-80 |
| 415IIT50ASR | 2" | ASR-130 |
| 415IIT65ASR | 2 1/2" | ASR-200 |
| 415IIT80ASR | 3" | ASR-300 |
| 415IIT100ASR | 4" | ASR-500 |
| 415IIT150ASR | 6" | ASR-850 |
| 415IIT200ASR | 8" | ASR-2100 |
Fig. 430. PN16:
| REFERENCE | SIZE | ACTUATOR |
|---|---|---|
| 430IIT15ASR | 1/2" | ASR-40 |
| 430IIT20ASR | 3/4" | ASR-40 |
| 430IIT25ASR | 1" | ASR-80 |
| 430IIT40ASR | 1 1/2" | ASR-130 |
| 430IIT50ASR | 2" | ASR-200 |
| 430IIT80ASR | 3" | ASR-500 |
| 430IIT100ASR | 4" | ASR-850 |
| 430IIT150ASR | 6" | ASR-1200 |

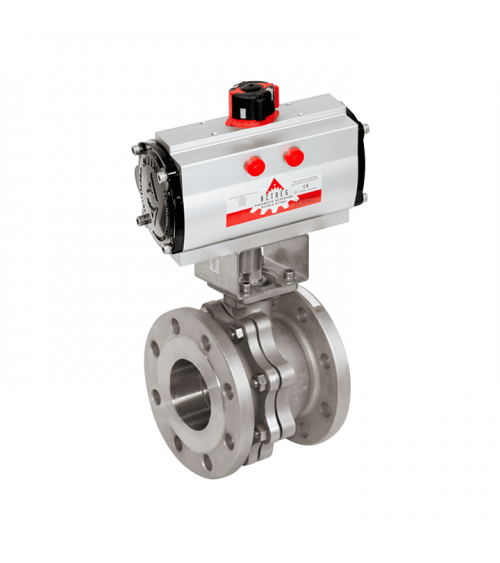

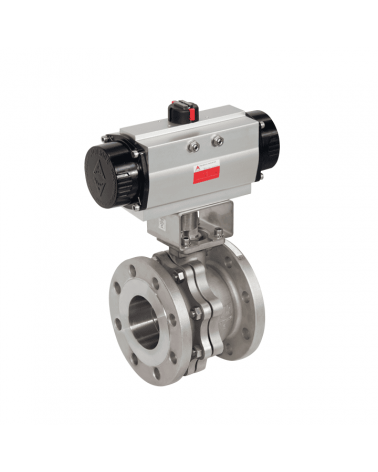

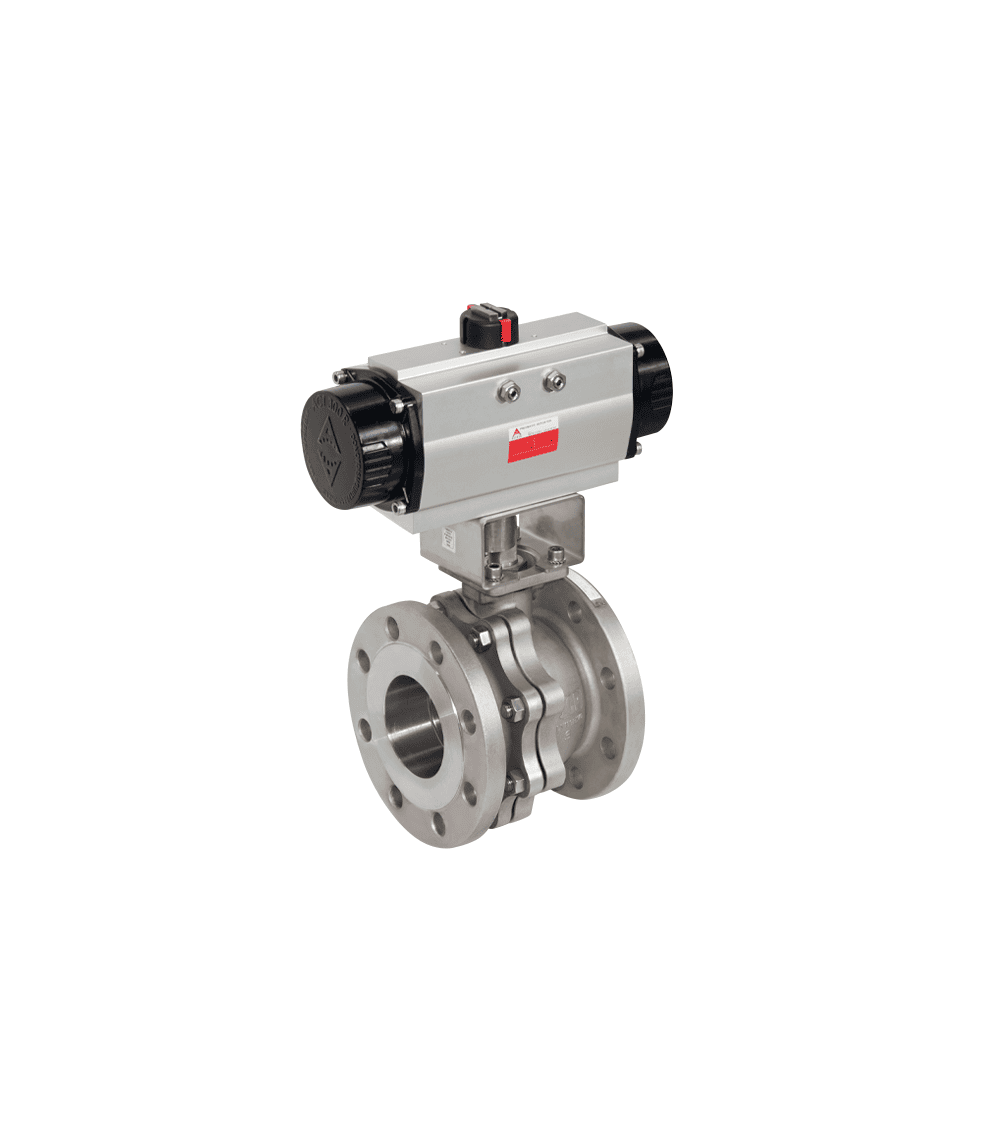

Full bore ball valve 2 pieces with single acting pneumatic actuator
Flanged two pieces ball valves, full bore, flanges PN40 and PN16, from DN15 to DN200. Stainless steel (1.4408) and carbon steel (1.0619) body, AISI-316 ball and modified PTFE seats. Antistatic device. Locking device. Stem is according EN 15081. Face-to-face according with EN 558-1 SERIE 27 (DIN 3202 F18). The valves are certified CE, ATEX, FIRE SAFE (according ISO 10497:2004) and FUGITIVE EMISSION (according ISO 15848-1:2006). Ball valve with pneumatic actuator with selection at 6 bar air pressure, at maximum differential pressure and with clean water at ambient temperature.
Fig. 415. PN40:
| REFERENCE | SIZE | ACTUATOR |
|---|---|---|
| 415IIT15ASR | 1/2" | ASR-20 |
| 415IIT20ASR | 3/4" | ASR-40 |
| 415IIT25ASR | 1" | ASR-40 |
| 415IIT40ASR | 1 1/2" | ASR-80 |
| 415IIT50ASR | 2" | ASR-130 |
| 415IIT65ASR | 2 1/2" | ASR-200 |
| 415IIT80ASR | 3" | ASR-300 |
| 415IIT100ASR | 4" | ASR-500 |
| 415IIT150ASR | 6" | ASR-850 |
| 415IIT200ASR | 8" | ASR-2100 |
Fig. 430. PN16:
| REFERENCE | SIZE | ACTUATOR |
|---|---|---|
| 430IIT15ASR | 1/2" | ASR-40 |
| 430IIT20ASR | 3/4" | ASR-40 |
| 430IIT25ASR | 1" | ASR-80 |
| 430IIT40ASR | 1 1/2" | ASR-130 |
| 430IIT50ASR | 2" | ASR-200 |
| 430IIT80ASR | 3" | ASR-500 |
| 430IIT100ASR | 4" | ASR-850 |
| 430IIT150ASR | 6" | ASR-1200 |
€339.00
Tax excluded
