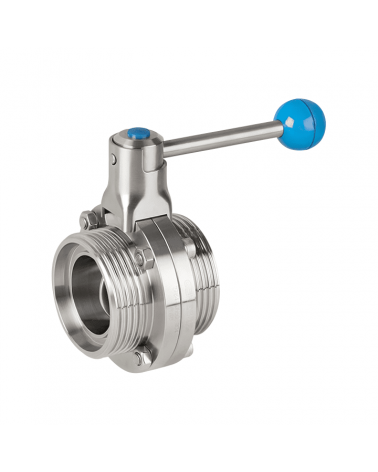

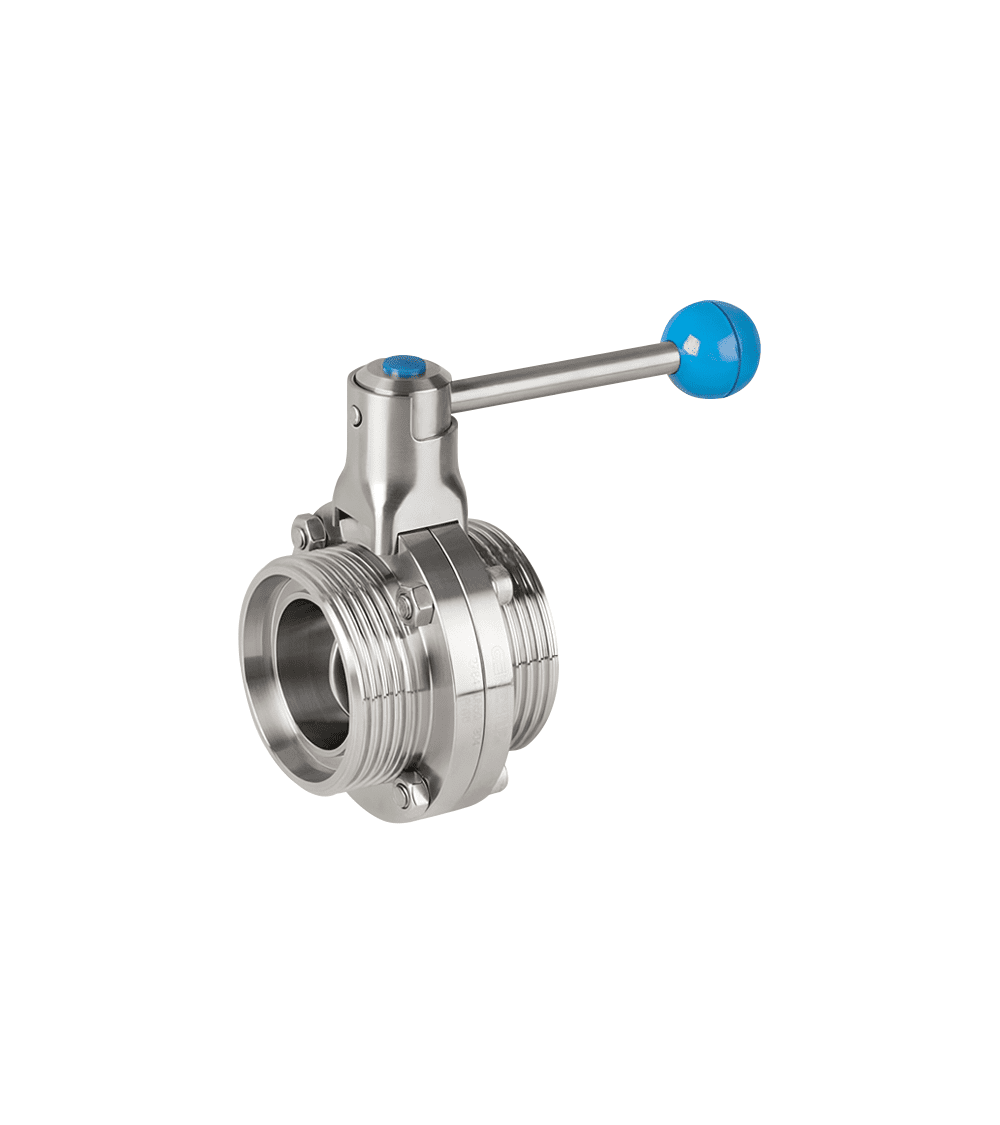

Sanitary line butterfly valve with threaded ends according to DIN 11851. AISI 304 stainless steel construction. NBR elastomer. Manual operation, three positions. Reduced weight and dimensions. Easy cleaning and mounting. Easy automation. Sanitary polish (Ra ≤ 0,8 μm). Low torque. Maximum working pressure: 10 bar. Maximum working temperature: 120ºC.
| REFERENCE | DN | WEIGHT |
|---|---|---|
| 2941EB 06 | 25 | 1.33 kg |
| 2941EB 07 | 32 | 1.61 kg |
| 2941EB 08 | 40 | 1.74 kg |
| 2941EB 09 | 50 | 2.42 kg |
| 2941EB 10 | 65 | 3.06 kg |
| 2941EB 11 | 80 | 3.62 kg |
| 2941EB 12 | 100 | 5.04 kg |
Butterfly valve with threaded ends (NBR)
Sanitary line butterfly valve with threaded ends according to DIN 11851. AISI 304 stainless steel construction. NBR elastomer. Manual operation, three positions. Reduced weight and dimensions. Easy cleaning and mounting. Easy automation. Sanitary polish (Ra ≤ 0,8 μm). Low torque. Maximum working pressure: 10 bar. Maximum working temperature: 120ºC.
| REFERENCE | DN | WEIGHT |
|---|---|---|
| 2941EB 06 | 25 | 1.33 kg |
| 2941EB 07 | 32 | 1.61 kg |
| 2941EB 08 | 40 | 1.74 kg |
| 2941EB 09 | 50 | 2.42 kg |
| 2941EB 10 | 65 | 3.06 kg |
| 2941EB 11 | 80 | 3.62 kg |
| 2941EB 12 | 100 | 5.04 kg |
€91.33
Tax excluded
