3 piece full bore ball valve with Clamp ends in inches (BS 4825-3). Stainless steel construction 1.4408 (CF8M). Integral PTFE seats. Direct actuator mounting according to ISO 5211. O-ring on the shaft made of FPM (Viton). Anti-static device. Locking system. Internal polishing of body and sphere (Ra 0,8 μm). Electro polished exterior. Maximum working pressure: 25 bar (400 WOG). Working temperature: -25ºC +180ºC.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2933 04 | 1/2" | 25 | 0.56 kg |
| 2933 05 | 3/4" | 25 | 0.75 kg |
| 2933 06 | 1" | 25 | 1.21 kg |
| 2933 08 | 1 1/2" | 25 | 2.54 kg |
| 2933 09 | 2" | 25 | 3.56 kg |
| 2933 10 | 2 1/2" | 25 | 7.89 kg |
| 2933 11 | 3" | 25 | 11.40 kg |
| 2933 12 | 4" | 25 | 21.25 kg |

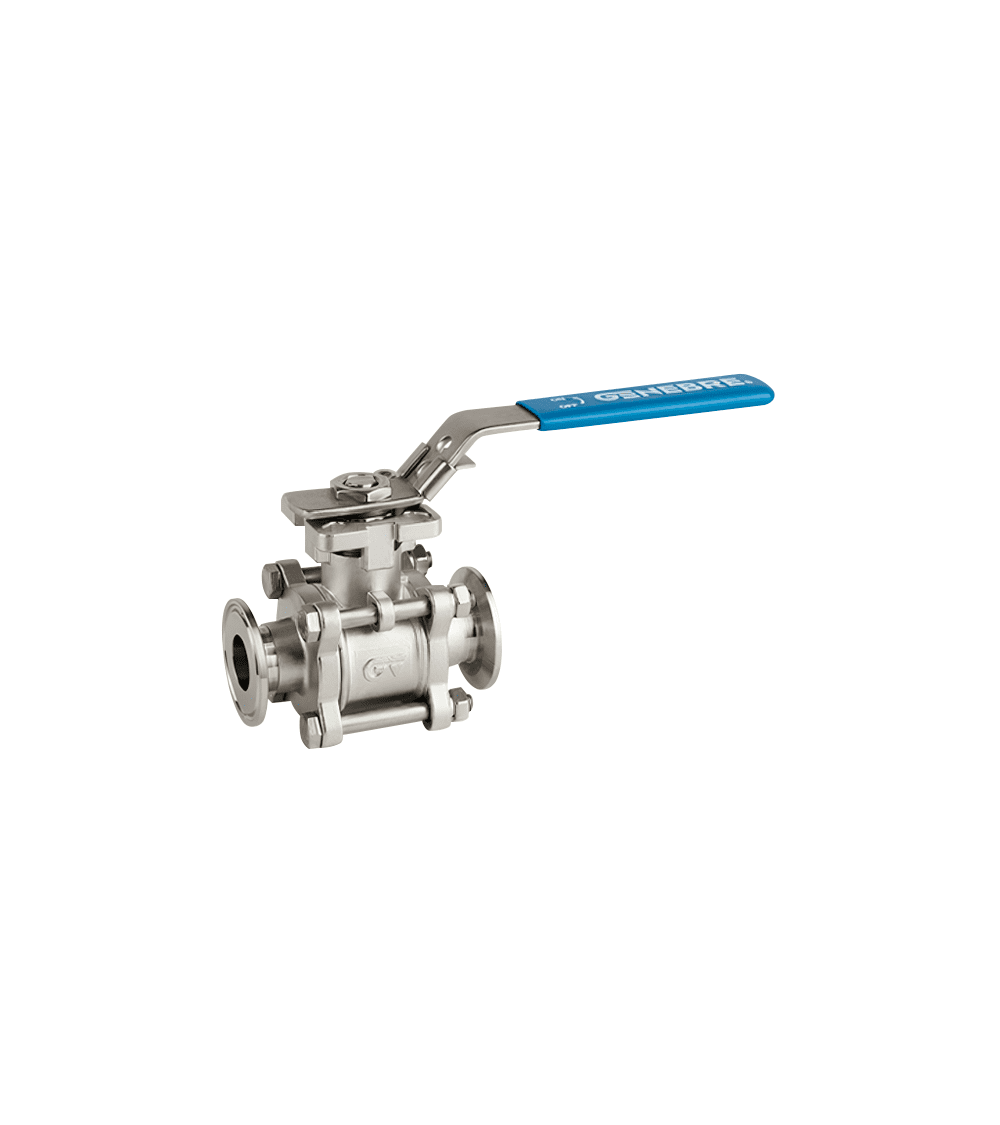

3 piece ball valve with Clamp ends
3 piece full bore ball valve with Clamp ends in inches (BS 4825-3). Stainless steel construction 1.4408 (CF8M). Integral PTFE seats. Direct actuator mounting according to ISO 5211. O-ring on the shaft made of FPM (Viton). Anti-static device. Locking system. Internal polishing of body and sphere (Ra 0,8 μm). Electro polished exterior. Maximum working pressure: 25 bar (400 WOG). Working temperature: -25ºC +180ºC.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2933 04 | 1/2" | 25 | 0.56 kg |
| 2933 05 | 3/4" | 25 | 0.75 kg |
| 2933 06 | 1" | 25 | 1.21 kg |
| 2933 08 | 1 1/2" | 25 | 2.54 kg |
| 2933 09 | 2" | 25 | 3.56 kg |
| 2933 10 | 2 1/2" | 25 | 7.89 kg |
| 2933 11 | 3" | 25 | 11.40 kg |
| 2933 12 | 4" | 25 | 21.25 kg |
€79.32
Tax excluded
