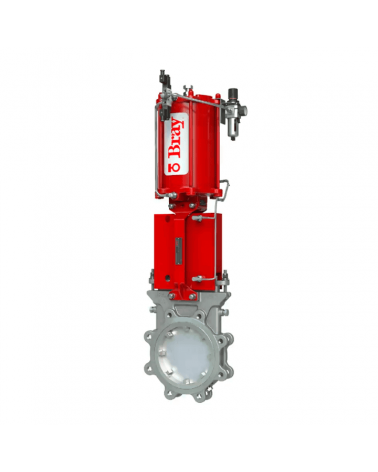

Bray's Series 942 vortex breaker knife gate valve is designed to meet the demands of on/off isolation service within pulp and paper recycling and rejection applications. It excels in high-cycle services, where robust shearing capabilities are paramount, particularly in environments with cyclone separators and recycle high-density cleaners.
Presents an engineered solution featuring a standard replaceable Vortex Breaker. This feature serves to disrupt cyclonic flow formation, preventing premature gate and body damage and ensuring prolonged operational efficiency and reliability. The Hi-Chrome vortex breaker (500 HB) designed to disrupt cyclonic flow formation of reject materials (staples, wire, nails, sand, etc.) provides extended service life.
The adaptability of the Bray series 942 vortex breaker knife gate valve spans multiple industry applications. From knotter to rejects, pulpers, HD cleaners, cyclone separators, and junk traps.
Features:
- Designed for exceptional performance in knotters, rejects, pulpers, scavengers and cyclone cleaners.
- Specifically designed for high-cycle applications.
- Replaceable Vortex Breaker with Hi-Chrome and tungsten carbide overlay for extended duty.
- Standard integral metal seat.
- Deflection resistant gate design ensures consistent alignment for industry leading durability.
- Unique body design with no dead pockets enables self-draining of valve.
- Lugged body suitable for all mounting orientations.

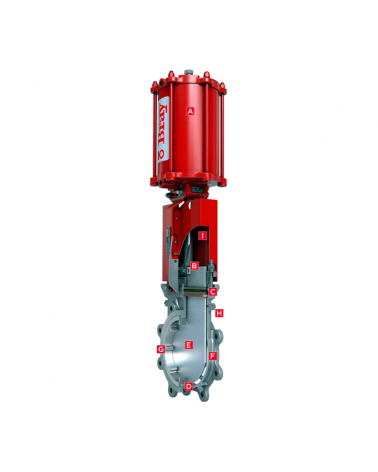

A. Topworks: pneumatic actuator sized and designed for high cycle and ability to cut through heavy media.
B. Clevis: Clevis design and horizontal bolting stabilizes gate ensuring proper alignment and reducing failure points commonly found in knife gate valves.
C. Packing: high performance packing system using a copper scraper and high performance packing, design includes machined packing chamber, live-loaded packing gland to assure extended cycle life and minimizes thrust of actuation.
D. Seat: integral stainless metal seat engineered for high cycle life.
E. Gate: abrasion resistant 17-4PH H-1025 gate.
F. Body: Lug-style single piece stainless body.
G. Vortex breaker: vortex breaker is a replaceable wear component engineered to shear heavy media. Cast insert utilizing Tungsten Carbide overlay on the bore and flange face for increased performance and cycle life. Designed to support shear in cycle through media such as staples, bands, plastics and other type debris assuring the gate will cut through and cycle to the fully closed position.
H. Purge ports: purge ports in seat and chest area allow full flushing capability while cycling.
I. Yoke: cast yoke superstructure robust design engineered for heavy duty actuators.
Unidirectional knife gate valve − series 942

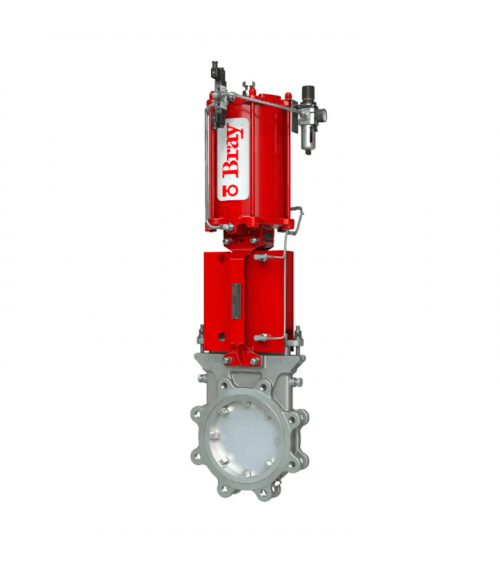

Bray's Series 942 vortex breaker knife gate valve is designed to meet the demands of on/off isolation service within pulp and paper recycling and rejection applications. It excels in high-cycle services, where robust shearing capabilities are paramount, particularly in environments with cyclone separators and recycle high-density cleaners.
Presents an engineered solution featuring a standard replaceable Vortex Breaker. This feature serves to disrupt cyclonic flow formation, preventing premature gate and body damage and ensuring prolonged operational efficiency and reliability. The Hi-Chrome vortex breaker (500 HB) designed to disrupt cyclonic flow formation of reject materials (staples, wire, nails, sand, etc.) provides extended service life.
The adaptability of the Bray series 942 vortex breaker knife gate valve spans multiple industry applications. From knotter to rejects, pulpers, HD cleaners, cyclone separators, and junk traps.
Features:
- Designed for exceptional performance in knotters, rejects, pulpers, scavengers and cyclone cleaners.
- Specifically designed for high-cycle applications.
- Replaceable Vortex Breaker with Hi-Chrome and tungsten carbide overlay for extended duty.
- Standard integral metal seat.
- Deflection resistant gate design ensures consistent alignment for industry leading durability.
- Unique body design with no dead pockets enables self-draining of valve.
- Lugged body suitable for all mounting orientations.

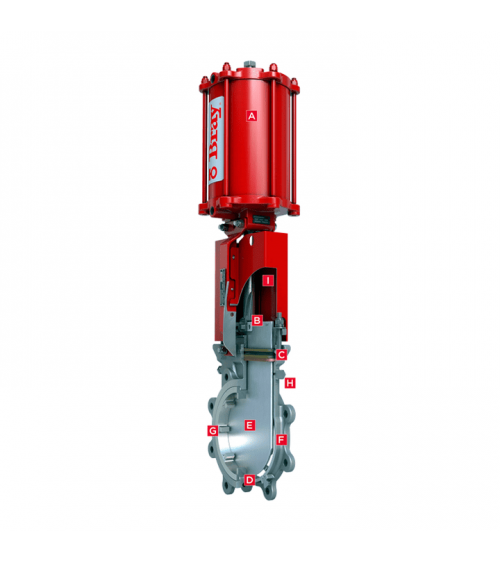

A. Topworks: pneumatic actuator sized and designed for high cycle and ability to cut through heavy media.
