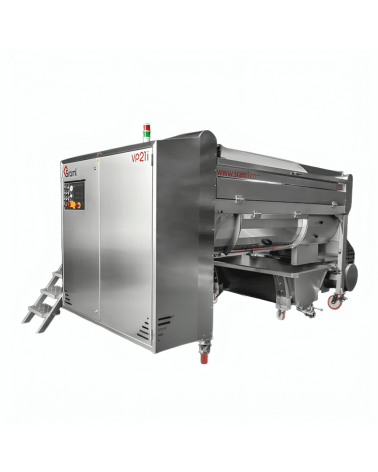

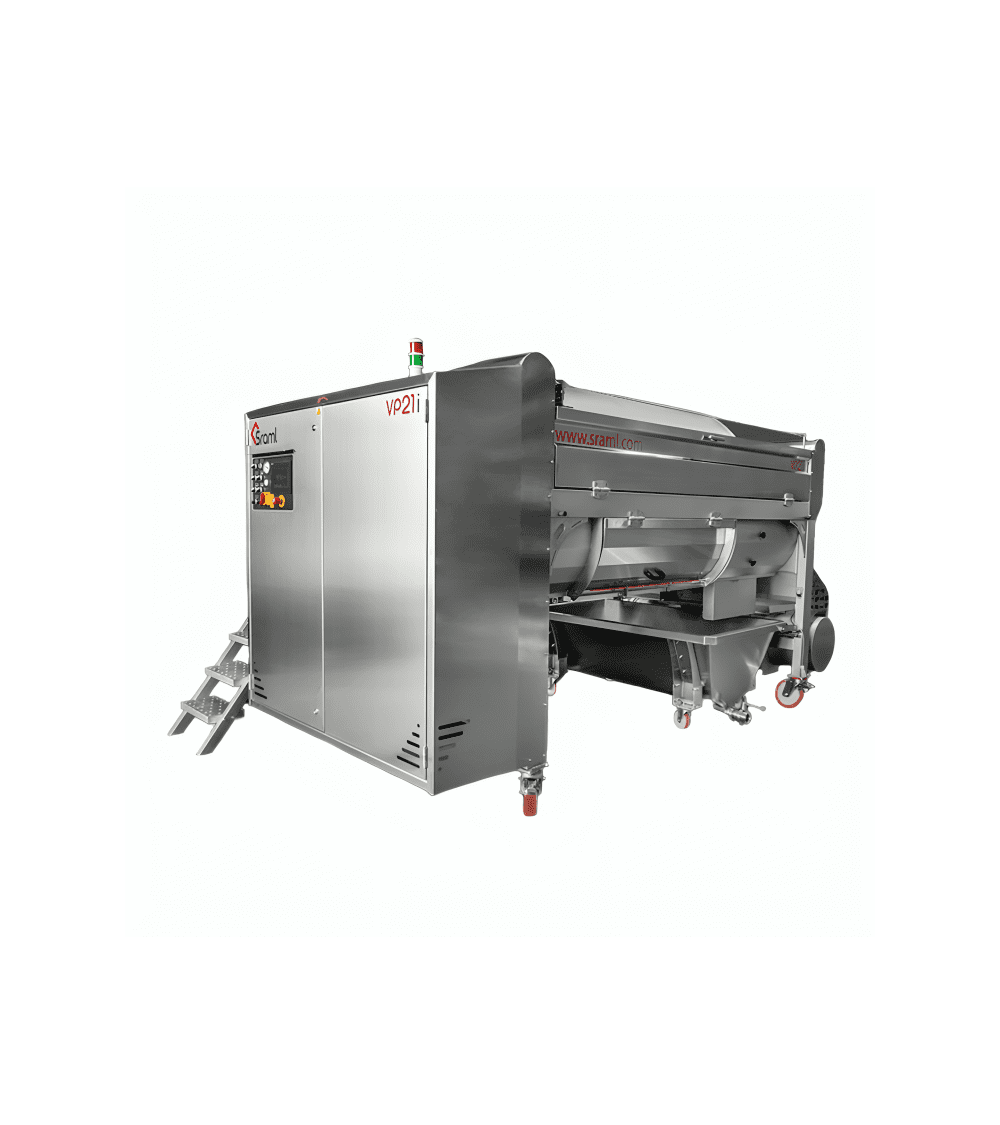

Inertgas pneumatic press with a capacity of 2,600 to 32,000 litres. This press works under inert gas, guaranteeing a continuous drainage considerably higher than any other type of pressure, with excellent results in performance/quality of the product. Closed press system. It is equipped with a touch screen and with different integrated pressing cycles that can be modified, as well as additional channels for customization. It has a large loading door with pneumatic opening and closing. Includes an ultra-quiet Becker compressor for high pressure washing, and a quiet fan. Swivel cylinder on both sides: left-right. Safety cord with locks on both sides, and at the back of the press. Automatic/manual control. Made entirely of stainless steel. Mounted on swivel castors with double brake. With axial loading. Other features available as an option.
| REFERENCE | CAPACITY | WHOLE GRAPE CAPACITY | DESTEMMED GRAPE CAPACITY | FERMENTED DOUGH CAPACITY |
|---|---|---|---|---|
| VP21i | 2,100 litres | 1,150 to 1,600 kg | 3,880 to 5,300 kg | 5,450 to 7,350 kg |
| VP26i | 2,600 litres | 1,430 to 2,000 kg | 4,800 to 6,550 kg | 6,750 to 9,100 kg |
| VP32i | 3,200 litres | 1,760 to 2,500 kg | 5,920 to 8,000 kg | 8,320 to 11,200 kg |
| VP44i | 4,400 litres | 2,400 to 3,430 kg | 8,140 to 11,000 kg | 11,440 to 18,200 kg |
| VP52i | 5,200 litres | 2,860 to 4,056 kg | 9,620 to 13,100 kg | 13,520 to 18,200 kg |
| VP60i | 6,000 litres | 3,300 to 4,680 kg | 11,100 to 15,120 kg | 15,600 to 21,000 kg |
| VP80i | 8,000 litres | 4,440 to 6,240 kg | 14,800 to 20,160 kg | 20,800 to 28,000 kg |
| VP100i | 10,000 litres | 5,500 to 7,800 kg | 18,500 to 25,200 kg | 26,000 to 35,000 kg |
| VP120i | 12,000 litres | 6,600 to 9,360 kg | 22,200 to 30,250 kg | 31,200 to 42,000 kg |
| VP150i | 15,000 litres | 8,250 to 11,700 kg | 27,700 to 37,800 kg | 39,000 to 52,500 kg |
Pneumatic Inertgas press 04
Inertgas pneumatic press with a capacity of 2,600 to 32,000 litres. This press works under inert gas, guaranteeing a continuous drainage considerably higher than any other type of pressure, with excellent results in performance/quality of the product. Closed press system. It is equipped with a touch screen and with different integrated pressing cycles that can be modified, as well as additional channels for customization. It has a large loading door with pneumatic opening and closing. Includes an ultra-quiet Becker compressor for high pressure washing, and a quiet fan. Swivel cylinder on both sides: left-right. Safety cord with locks on both sides, and at the back of the press. Automatic/manual control. Made entirely of stainless steel. Mounted on swivel castors with double brake. With axial loading. Other features available as an option.
| REFERENCE | CAPACITY | WHOLE GRAPE CAPACITY | DESTEMMED GRAPE CAPACITY | FERMENTED DOUGH CAPACITY |
|---|---|---|---|---|
| VP21i | 2,100 litres | 1,150 to 1,600 kg | 3,880 to 5,300 kg | 5,450 to 7,350 kg |
| VP26i | 2,600 litres | 1,430 to 2,000 kg | 4,800 to 6,550 kg | 6,750 to 9,100 kg |
| VP32i | 3,200 litres | 1,760 to 2,500 kg | 5,920 to 8,000 kg | 8,320 to 11,200 kg |
| VP44i | 4,400 litres | 2,400 to 3,430 kg | 8,140 to 11,000 kg | 11,440 to 18,200 kg |
| VP52i | 5,200 litres | 2,860 to 4,056 kg | 9,620 to 13,100 kg | 13,520 to 18,200 kg |
| VP60i | 6,000 litres | 3,300 to 4,680 kg | 11,100 to 15,120 kg | 15,600 to 21,000 kg |
| VP80i | 8,000 litres | 4,440 to 6,240 kg | 14,800 to 20,160 kg | 20,800 to 28,000 kg |
| VP100i | 10,000 litres | 5,500 to 7,800 kg | 18,500 to 25,200 kg | 26,000 to 35,000 kg |
| VP120i | 12,000 litres | 6,600 to 9,360 kg | 22,200 to 30,250 kg | 31,200 to 42,000 kg |
| VP150i | 15,000 litres | 8,250 to 11,700 kg | 27,700 to 37,800 kg | 39,000 to 52,500 kg |
