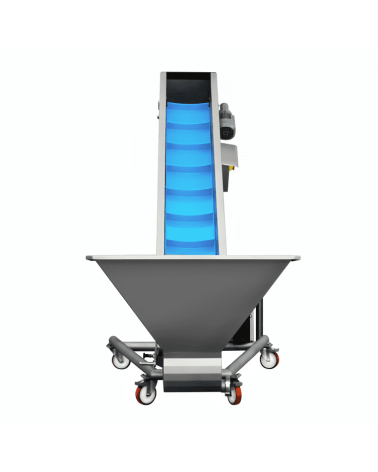

Elevator with hydraulic piston and a chassis with 4 wheels: 2 fixed and 2 swivelling with brakes.
Conveyor belt made of food-grade PVC. Quick and easy disassembly for cleaning the belt. Hopper for product accumulation. CE electric panel with electronic variator, START/STOP selector and emergency button.
300 mm conveyor belt: output of up to 20,000 kg/hour. 500 mm conveyor belt: output of up to 30,000 kg/hour.
Optional:
– GBE300: Receiving hopper of 1,200 x 1,080 mm. / GBE500: Receiving hopper of 1,500 x 1,080 mm.
– Crusher at the elevator discharge.
| REFERENCE | BELT LENGTH |
BELT WIDE |
USEFUL HEIGHT |
kW |
| GBE300×2500 | 2,500 mm | 300 mm | 1,460–2,110 mm | 1.1 kW |
| GBE300×3000 | 3,000 mm | 300 mm | 1,770–2,520 mm | 1.1 kW |
| GBE300×3500 | 3,500 mm | 300 mm | 2,080–2,930 mm | 1.1 kW |
| GBE300×4000 | 4,000 mm | 300 mm | 2,390–3,340 mm | 1.5 kW |
| GBE300×4500 | 4,500 mm | 300 mm | 2,700–3,850 mm | 1.5 kW |
| GBE300x5000 | 5,000 mm | 300 mm | 3,010–4,260 mm | 1.5 kW |
| GBE300×5500 | 5,500 mm | 300 mm | 3,320–4,670 mm | 2.2 kW |
| GBE300×6000 | 6,000 mm | 300 mm | 3,630–5,080 mm | 2.2 kW |
| GBE300×6500 | 6,500 mm | 300 mm | 3,940–5,490 mm | 2.2 kW |
| GBE300×7000 | 7,000 mm | 300 mm | 4,250–5,900 mm | 2.2 kW |
| GBE300×7500 | 7,500 mm | 300 mm | 4,560–6,310 mm | 2.2 kW |
| GBE500×2500 | 2,500 mm | 500 mm | 1,460–2,110 mm | 1.1 kW |
| GBE500×3000 | 3,000 mm | 500 mm | 1,770–2,520 mm | 1.1 kW |
| GBE500×3500 | 3,500 mm | 500 mm | 2,080–2,930 mm | 1.1 kW |
| GBE500×4000 | 4,000 mm | 500 mm | 2,390–3,340 mm | 1.5 kW |
| GBE500×4500 | 4,500 mm | 500 mm | 2,700–3,850 mm | 1.5 kW |
| GBE500×5000 | 5,000 mm | 500 mm | 3,010–4,260 mm | 1.5 kW |
| GBE500×5500 | 5,500 mm | 500 mm | 3,320–4,670 mm | 2.2 kW |
| GBE500×6000 | 6,000 mm | 500 mm | 3,630–5,080 mm | 2.2 kW |
| GBE500×6500 | 6,500 mm | 500 mm | 3,940–5,490 mm | 2.2 kW |
| GBE500×7000 | 7,000 mm | 500 mm | 4,250–5,900 mm | 2.2 kW |
| GBE500×7500 | 7,500 mm | 500 mm | 4,560–6,310 mm | 2.2 kW |

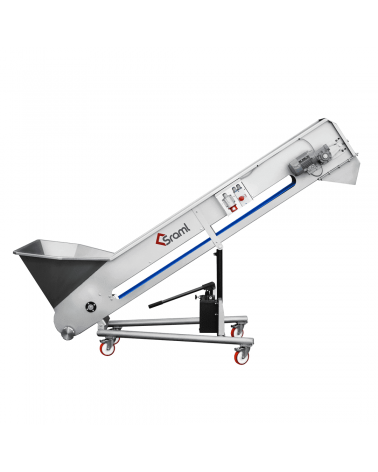

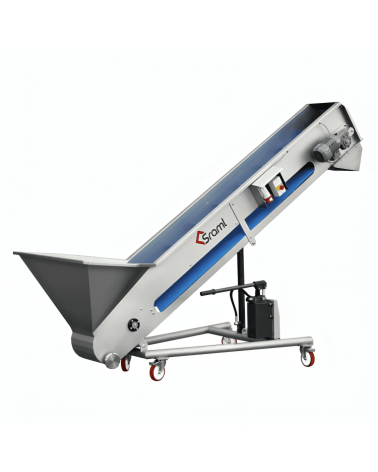

Grape belt elevator 01
Elevator with hydraulic piston and a chassis with 4 wheels: 2 fixed and 2 swivelling with brakes.
Conveyor belt made of food-grade PVC. Quick and easy disassembly for cleaning the belt. Hopper for product accumulation. CE electric panel with electronic variator, START/STOP selector and emergency button.
300 mm conveyor belt: output of up to 20,000 kg/hour. 500 mm conveyor belt: output of up to 30,000 kg/hour.
Optional:
– GBE300: Receiving hopper of 1,200 x 1,080 mm. / GBE500: Receiving hopper of 1,500 x 1,080 mm.
– Crusher at the elevator discharge.
| REFERENCE | BELT LENGTH |
BELT WIDE |
USEFUL HEIGHT |
kW |
| GBE300×2500 | 2,500 mm | 300 mm | 1,460–2,110 mm | 1.1 kW |
| GBE300×3000 | 3,000 mm | 300 mm | 1,770–2,520 mm | 1.1 kW |
| GBE300×3500 | 3,500 mm | 300 mm | 2,080–2,930 mm | 1.1 kW |
| GBE300×4000 | 4,000 mm | 300 mm | 2,390–3,340 mm | 1.5 kW |
| GBE300×4500 | 4,500 mm | 300 mm | 2,700–3,850 mm | 1.5 kW |
| GBE300x5000 | 5,000 mm | 300 mm | 3,010–4,260 mm | 1.5 kW |
| GBE300×5500 | 5,500 mm | 300 mm | 3,320–4,670 mm | 2.2 kW |
| GBE300×6000 | 6,000 mm | 300 mm | 3,630–5,080 mm | 2.2 kW |
| GBE300×6500 | 6,500 mm | 300 mm | 3,940–5,490 mm | 2.2 kW |
| GBE300×7000 | 7,000 mm | 300 mm | 4,250–5,900 mm | 2.2 kW |
| GBE300×7500 | 7,500 mm | 300 mm | 4,560–6,310 mm | 2.2 kW |
| GBE500×2500 | 2,500 mm | 500 mm | 1,460–2,110 mm | 1.1 kW |
| GBE500×3000 | 3,000 mm | 500 mm | 1,770–2,520 mm | 1.1 kW |
| GBE500×3500 | 3,500 mm | 500 mm | 2,080–2,930 mm | 1.1 kW |
| GBE500×4000 | 4,000 mm | 500 mm | 2,390–3,340 mm | 1.5 kW |
| GBE500×4500 | 4,500 mm | 500 mm | 2,700–3,850 mm | 1.5 kW |
| GBE500×5000 | 5,000 mm | 500 mm | 3,010–4,260 mm | 1.5 kW |
| GBE500×5500 | 5,500 mm | 500 mm | 3,320–4,670 mm | 2.2 kW |
| GBE500×6000 | 6,000 mm | 500 mm | 3,630–5,080 mm | 2.2 kW |
| GBE500×6500 | 6,500 mm | 500 mm | 3,940–5,490 mm | 2.2 kW |
| GBE500×7000 | 7,000 mm | 500 mm | 4,250–5,900 mm | 2.2 kW |
| GBE500×7500 | 7,500 mm | 500 mm | 4,560–6,310 mm | 2.2 kW |
