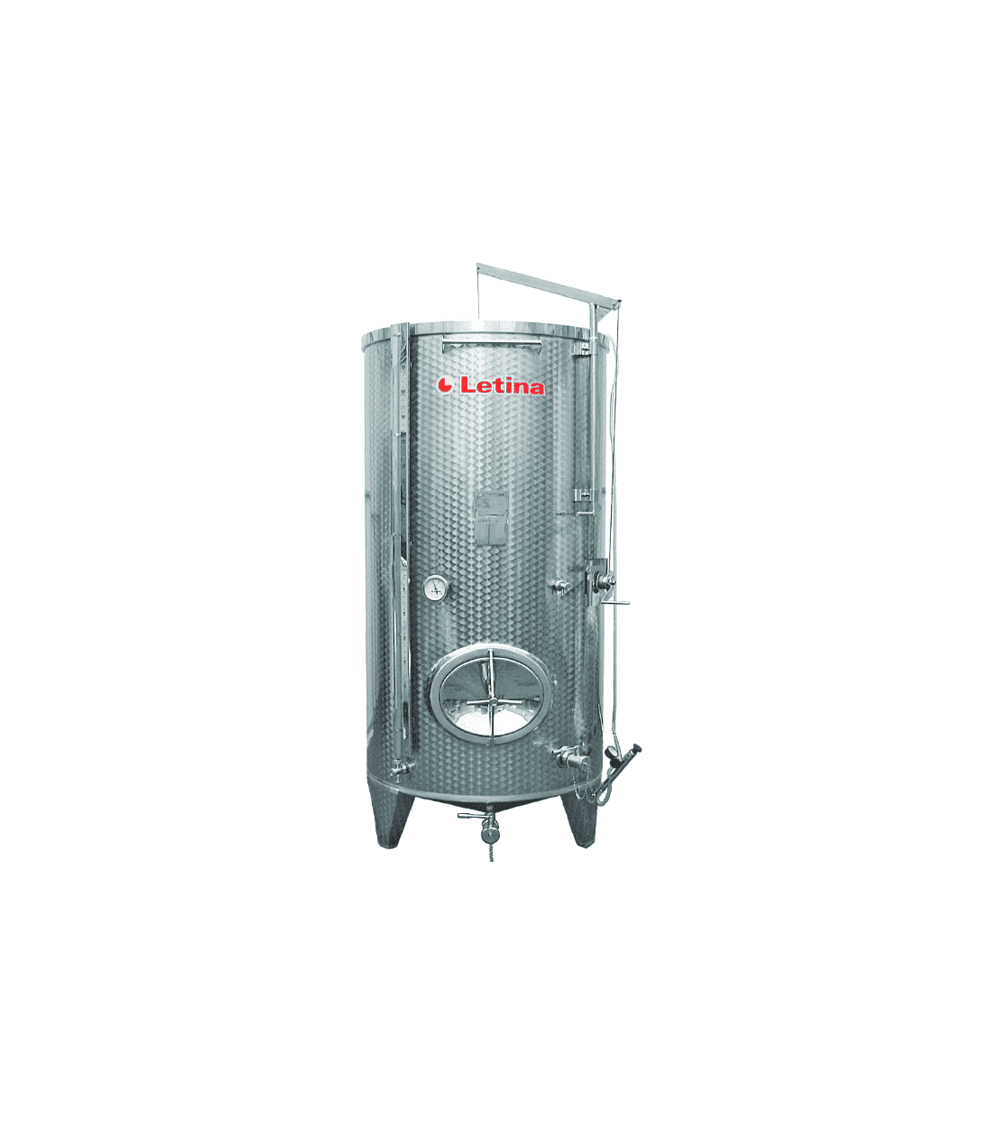

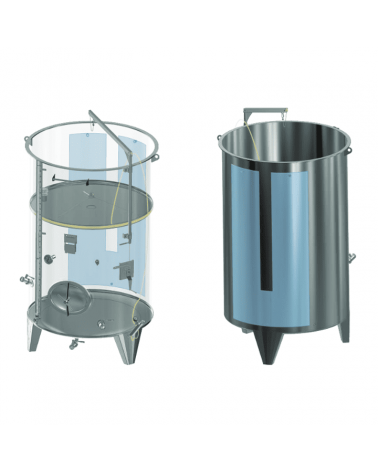

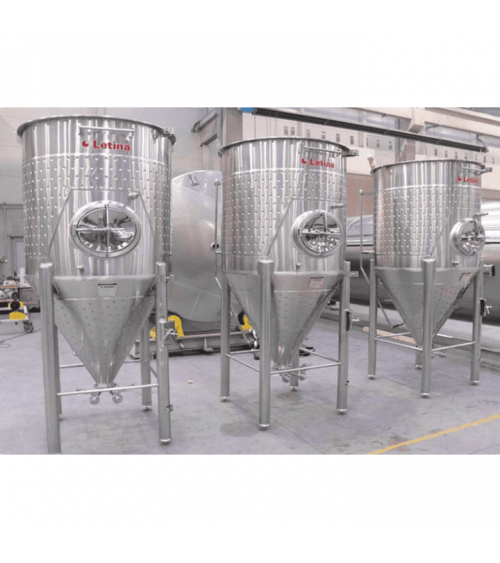

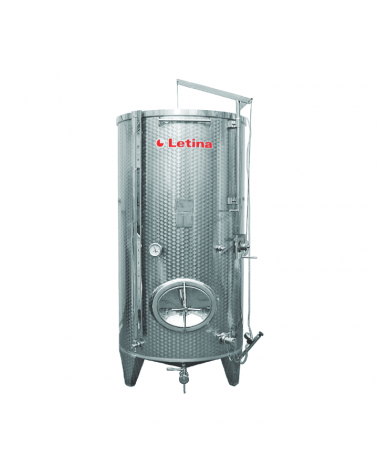

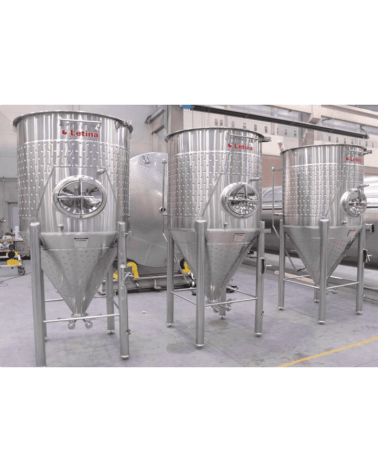

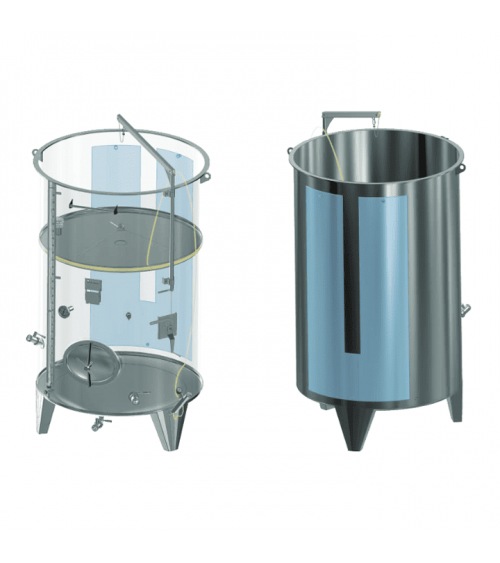

PZP stainless steel tank with floating full lid and conical bottom.
Includes total and partial outlet with taps included, 3 legs of 300, 400 or 500 mm height according to model, complete level with protection, sampler, oval front door, with cooling jacket.
Possibility of manufacturing in any capacity from 320 to 24,800 liters. Interior mirror polished. Flowered or Scotch Brite finish.
| REFERENCE | CAPACITY | DIAMETER | TOTAL HEIGHT |
|---|---|---|---|
| PZP1200A11 | 1,200 litres | 1,116 mm | 1,550 mm |
| PZP1900A13 | 1,900 litres | 1,275 mm | 2,350 mm |
| PZP2300A14 | 2,300 litres | 1,402 mm | 2,350 mm |
| PZP4000A16 | 4,000 litres | 1,593 mm | 2,840 mm |
| PZP4900A18 | 4,900 litres | 1,752 mm | 2,990 mm |
| PZP7300A19 | 7,300 litres | 1,911 mm | 3,610 mm |
| PZP8600A21 | 8,600 litres | 2,071 mm | 3,630 mm |
| PZP11900A22 | 11,900 litres | 2,230 mm | 4,130 mm |
Stainless steel tank PZP
PZP stainless steel tank with floating full lid and conical bottom.
Includes total and partial outlet with taps included, 3 legs of 300, 400 or 500 mm height according to model, complete level with protection, sampler, oval front door, with cooling jacket.
Possibility of manufacturing in any capacity from 320 to 24,800 liters. Interior mirror polished. Flowered or Scotch Brite finish.
| REFERENCE | CAPACITY | DIAMETER | TOTAL HEIGHT |
|---|---|---|---|
| PZP1200A11 | 1,200 litres | 1,116 mm | 1,550 mm |
| PZP1900A13 | 1,900 litres | 1,275 mm | 2,350 mm |
| PZP2300A14 | 2,300 litres | 1,402 mm | 2,350 mm |
| PZP4000A16 | 4,000 litres | 1,593 mm | 2,840 mm |
| PZP4900A18 | 4,900 litres | 1,752 mm | 2,990 mm |
| PZP7300A19 | 7,300 litres | 1,911 mm | 3,610 mm |
| PZP8600A21 | 8,600 litres | 2,071 mm | 3,630 mm |
| PZP11900A22 | 11,900 litres | 2,230 mm | 4,130 mm |
