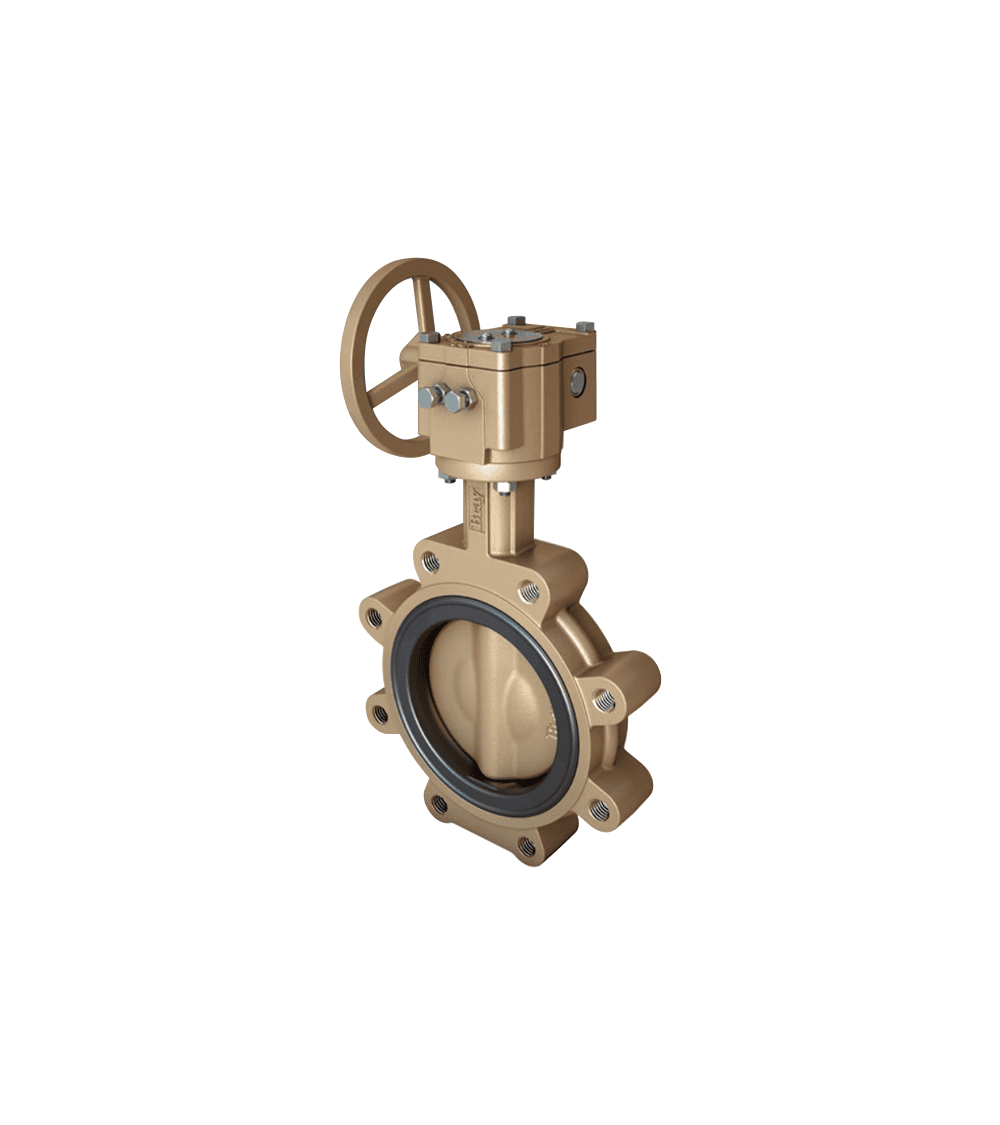

Lug type butterfly valve with resilient seat − series 31U. Bray's Series 31U resilient seated butterfly valve is specifically designed for onshore and offshore fire protection where the applicable certification is D.O.T. 54 (UK Department of Trade). The series 31U is designed to withstand high line velocities and pressure. Size range: DN50 a 300. Maximum working pressure: 20 bar. Working temperature: -18ºC +100ºC.

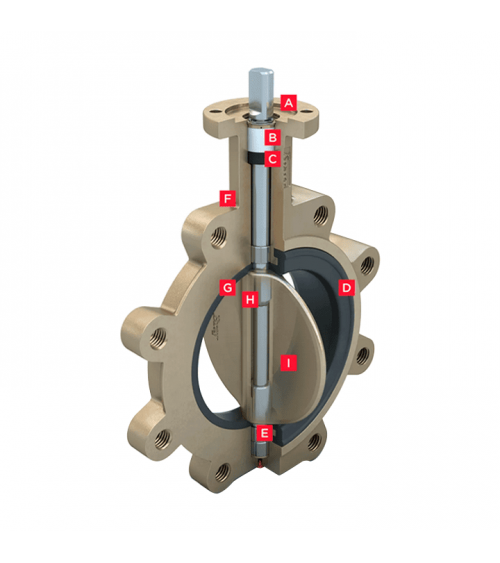

A. Modular design: all Bray manual gear operators, electric and pneumatic actuators mount directly to the S31U, with no brackets required.
B. Stem bushing: non-corrosive heavy duty acetal bushing absorbs actuator side thrust.
C. Stem seal: patented stem retaining ring and C-rings prevent unintentional removal of the stem during field service.
D. Seat design: Bray's bonded tongue and groove resilient seat design offers lower torque than many valves on the market today and provides complete isolation of flowing media from all valve components (excluding the disc) by a totally encasing design. The seat features a molded tangential O-ring eliminating any need for flange gaskets.
E. Primary & secondary seals: these seals prevent line media from coming in contact with the stem or body. Primary Seal is achieved by an interference fit of the molded seat flat with the disc hub. Secondary Seal is created because the stem diameter is greater than the diameter of the seat stem hole.
F. Neck: extended neck length allows for piping insulation and is easily accessible for mounting operators.
G. Body: one piece lugged style flange configuration, with a choice of Polyester Coated Ductile Iron/Carbon Steel or uncoated Nickel Aluminum Bronze. All bodies can be drilled to be compatible with ASME 125/150, PN10/16 or other international flange standards.
H. Stem: High Strength upper and lower stem incorporate a close tolerance double 'D' disc drive connection. This eliminates stem retention components being exposed to the line media and allows for easy disassembly for maintenance purposes, unlike disc screws and taper pins.
I. Disc: Casting is spherically machined and hand polished to provide bubble-tight shutoff with minimum torque and an extended seat life.
Lug type butterfly valve with resilient seat − series 31U

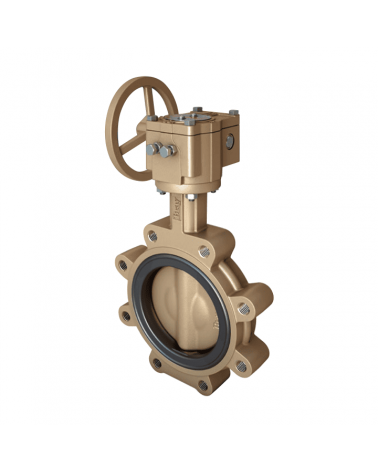

Lug type butterfly valve with resilient seat − series 31U. Bray's Series 31U resilient seated butterfly valve is specifically designed for onshore and offshore fire protection where the applicable certification is D.O.T. 54 (UK Department of Trade). The series 31U is designed to withstand high line velocities and pressure. Size range: DN50 a 300. Maximum working pressure: 20 bar. Working temperature: -18ºC +100ºC.

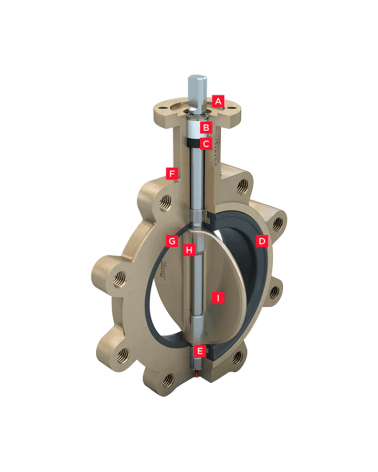

A. Modular design: all Bray manual gear operators, electric and pneumatic actuators mount directly to the S31U, with no brackets required.
