Three pieces ball valves, full bore, Butt Weld ends (ASME B16.25 & DIN 3239 part 1). 1000 WOG (PN63/PN25), from 1/4" (DN8) to 4" (DN100). Stainless steel (1.4408) body. AISI-316 ball and PTFE seats. Locking device. The valves are certified CE and ATEX.
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 143 08 | DN 8 (1/4") | 0.31 kg |
| 143 10 | DN 10 (3/8") | 0.35 kg |
| 143 15 | DN 15 (1/2") | 0.41 kg |
| 143 20 | DN 20 (3/4") | 0.7 kg |
| 143 25 | DN 25 (1") | 1.2 kg |
| 143 32 | DN 32 (1 1/4") | 2 kg |
| 143 40 | DN 40 (1 1/2") | 2.5 kg |
| 143 50 | DN 50 (2") | 3.7 kg |
| 143 65 | DN 65 (2 1/2") | 7.4 kg |
| 143 80 | DN 80 (3") | 12.8 kg |
| 143 100 | DN 100 (4") | 23 kg |

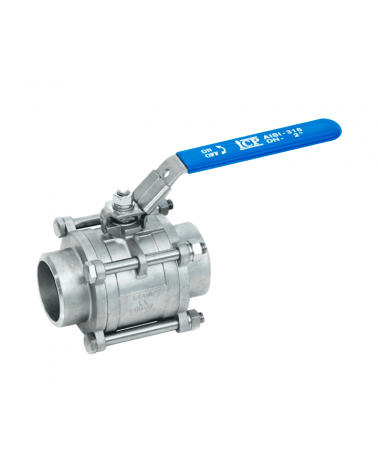

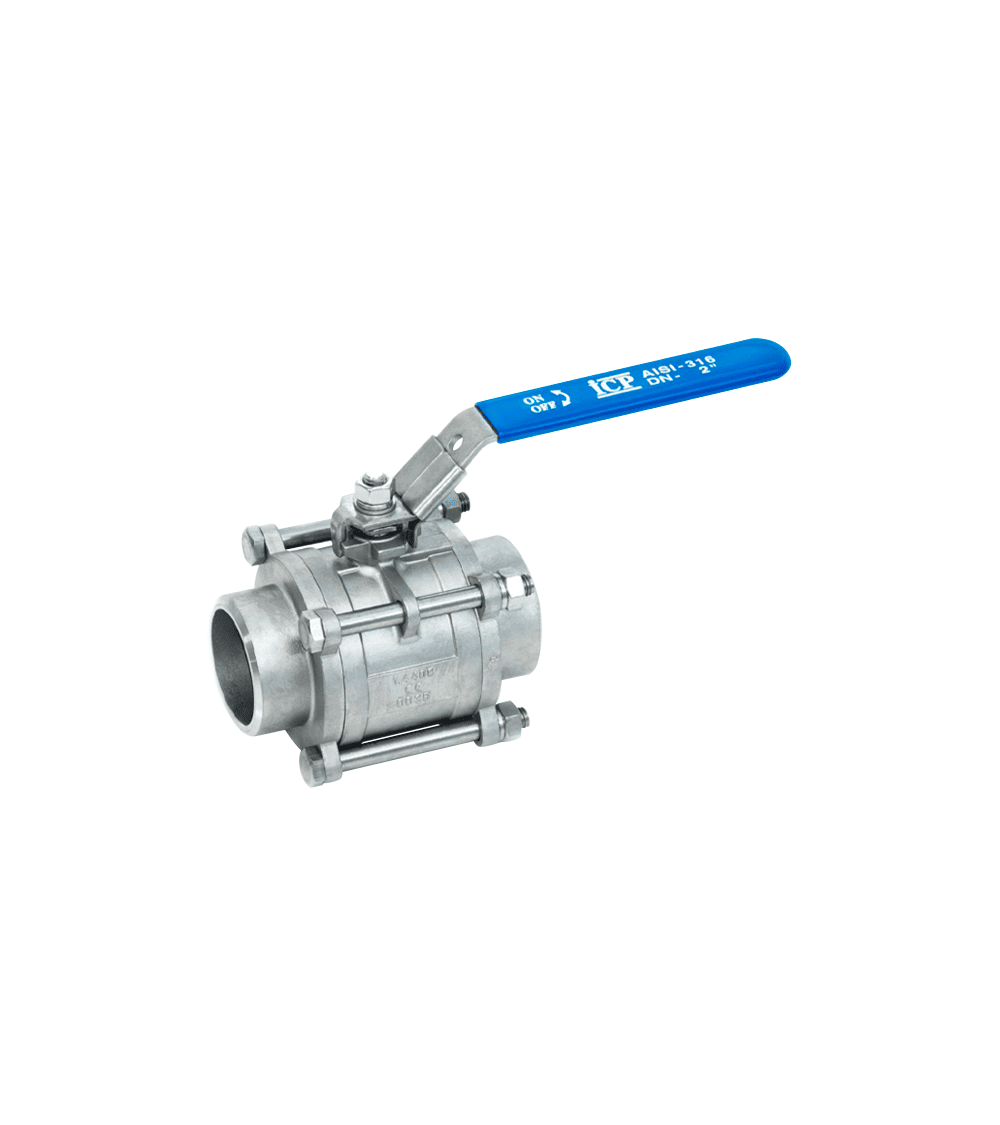

Full bore ball valve 3 pieces
Three pieces ball valves, full bore, Butt Weld ends (ASME B16.25 & DIN 3239 part 1). 1000 WOG (PN63/PN25), from 1/4" (DN8) to 4" (DN100). Stainless steel (1.4408) body. AISI-316 ball and PTFE seats. Locking device. The valves are certified CE and ATEX.
| REFERENCE | SIZE | WEIGHT |
|---|---|---|
| 143 08 | DN 8 (1/4") | 0.31 kg |
| 143 10 | DN 10 (3/8") | 0.35 kg |
| 143 15 | DN 15 (1/2") | 0.41 kg |
| 143 20 | DN 20 (3/4") | 0.7 kg |
| 143 25 | DN 25 (1") | 1.2 kg |
| 143 32 | DN 32 (1 1/4") | 2 kg |
| 143 40 | DN 40 (1 1/2") | 2.5 kg |
| 143 50 | DN 50 (2") | 3.7 kg |
| 143 65 | DN 65 (2 1/2") | 7.4 kg |
| 143 80 | DN 80 (3") | 12.8 kg |
| 143 100 | DN 100 (4") | 23 kg |
€13.40
Tax excluded
