Price
€663.04
Wafer type butterfly valve (REF. 2104) with manual gearbox. Split body in stainless steel 1.4408 (CF8M) for mounting between ANSI 150 and EN 1092...
Wafer type butterfly valve (REF. 2101) with manual gearbox (REF. 5984 04). Split body made of nodular cast iron EN-GJS-400 (GGG-40) for mounting between ANSI 150 and EN 1092 PN 10/16 flanges. PTFE seat with silicone base. Stainless steel disc 1.4408 (CF8M) polished. AISI 316 stainless steel shaft. Actuator mounting flange according to ISO 5211. Length between faces according to EN 558-1 series 20 (DIN 3202 K1). Maximum working pressure: 10 bar. Working temperature: -25ºC +180ºC.
| REFERENCE | SIZE | DN | PN | WEIGHT |
|---|---|---|---|---|
| 5101 09 | 2" | 50 | 10 | 4.42 kg |
| 5101 10 | 2 1/2" | 65 | 10 | 4.68 kg |
| 5101 11 | 3" | 80 | 10 | 5.04 kg |
| 5101 12 | 4" | 100 | 10 | 7.03 kg |
| 5101 13 | 5" | 125 | 10 | 8.37 kg |

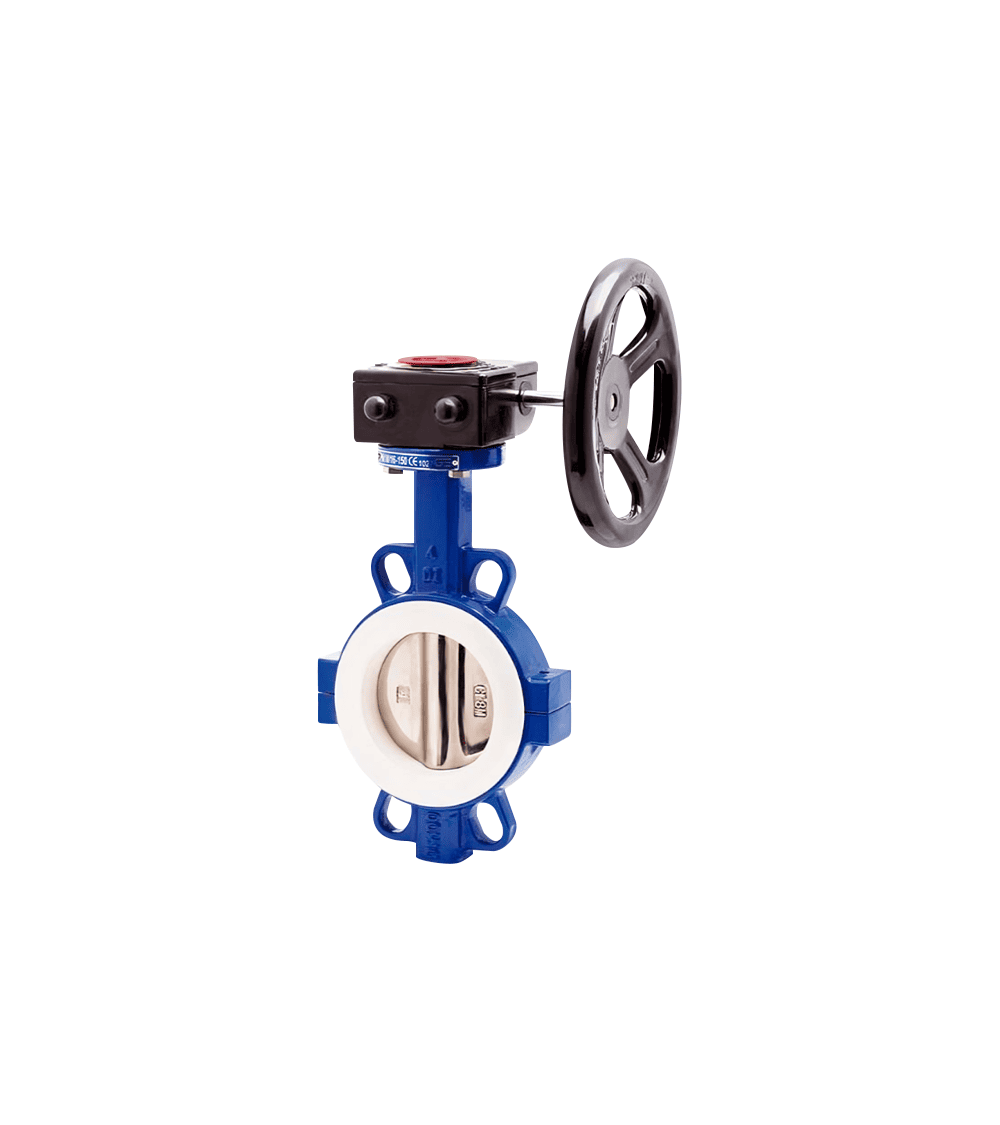

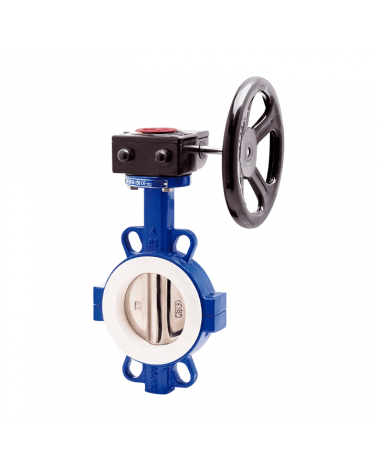

Wafer type butterfly valve with manual gearbox and flanged mounting − two-part nodular cast iron body
Wafer type butterfly valve (REF. 2101) with manual gearbox (REF. 5984 04). Split body made of nodular cast iron EN-GJS-400 (GGG-40) for mounting between ANSI 150 and EN 1092 PN 10/16 flanges. PTFE seat with silicone base. Stainless steel disc 1.4408 (CF8M) polished. AISI 316 stainless steel shaft. Actuator mounting flange according to ISO 5211. Length between faces according to EN 558-1 series 20 (DIN 3202 K1). Maximum working pressure: 10 bar. Working temperature: -25ºC +180ºC.
| REFERENCE | SIZE | DN | PN | WEIGHT |
|---|---|---|---|---|
| 5101 09 | 2" | 50 | 10 | 4.42 kg |
| 5101 10 | 2 1/2" | 65 | 10 | 4.68 kg |
| 5101 11 | 3" | 80 | 10 | 5.04 kg |
| 5101 12 | 4" | 100 | 10 | 7.03 kg |
| 5101 13 | 5" | 125 | 10 | 8.37 kg |
€476.96
Tax excluded
