Full bore ball valve wafer type with flanged mounting EN 1092 PN16. Stainless steel construction ASTM A182 F316. PTFE seats and seals. Maximum working pressure: 16 bar. Working temperature: -20ºC +180ºC.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2110 04 | 1/2" | 16 | 1.50 kg |
| 2110 05 | 3/4" | 16 | 2.18 kg |
| 2110 06 | 1" | 16 | 3 kg |
| 2110 07 | 1 1/4" | 16 | 5 kg |
| 2110 08 | 1 1/2" | 16 | 6.46 kg |
| 2110 09 | 2" | 16 | 5.82 kg |
| 2110 10 | 2 1/2" | 16 | 16 kg |
| 2110 11 | 3" | 16 | 21.12 kg |
| 2110 12 | 4" | 16 | 30 kg |

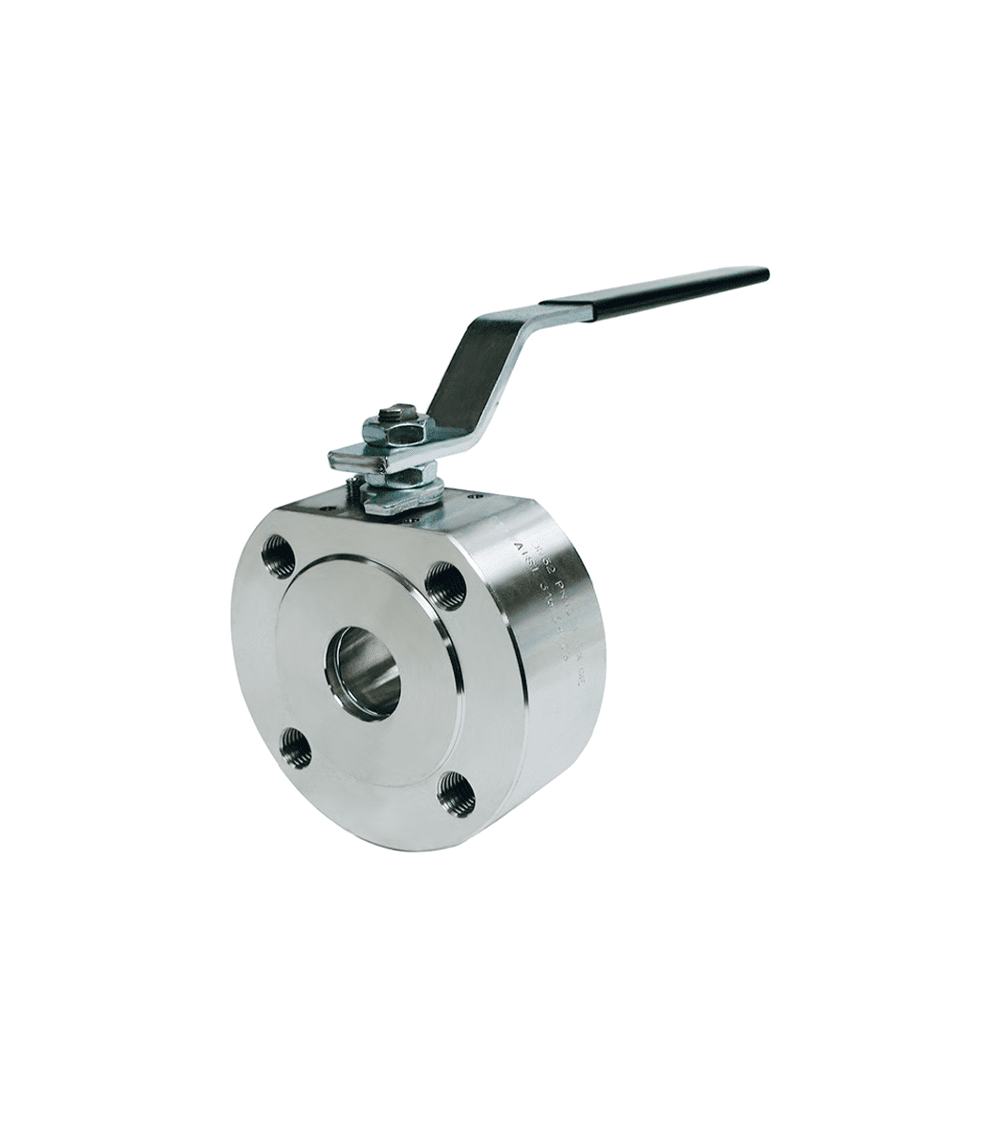

Full bore ball valve Wafer type made of stainless steel
Full bore ball valve wafer type with flanged mounting EN 1092 PN16. Stainless steel construction ASTM A182 F316. PTFE seats and seals. Maximum working pressure: 16 bar. Working temperature: -20ºC +180ºC.
| REFERENCE | SIZE | PN | WEIGHT |
|---|---|---|---|
| 2110 04 | 1/2" | 16 | 1.50 kg |
| 2110 05 | 3/4" | 16 | 2.18 kg |
| 2110 06 | 1" | 16 | 3 kg |
| 2110 07 | 1 1/4" | 16 | 5 kg |
| 2110 08 | 1 1/2" | 16 | 6.46 kg |
| 2110 09 | 2" | 16 | 5.82 kg |
| 2110 10 | 2 1/2" | 16 | 16 kg |
| 2110 11 | 3" | 16 | 21.12 kg |
| 2110 12 | 4" | 16 | 30 kg |
€177.05
Tax excluded
