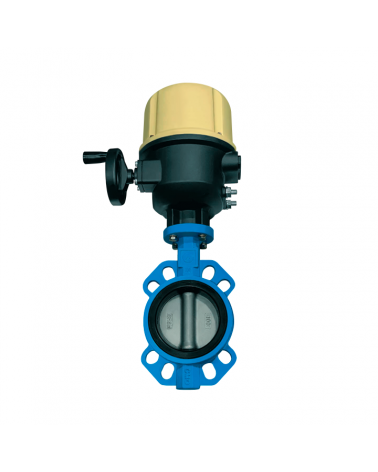

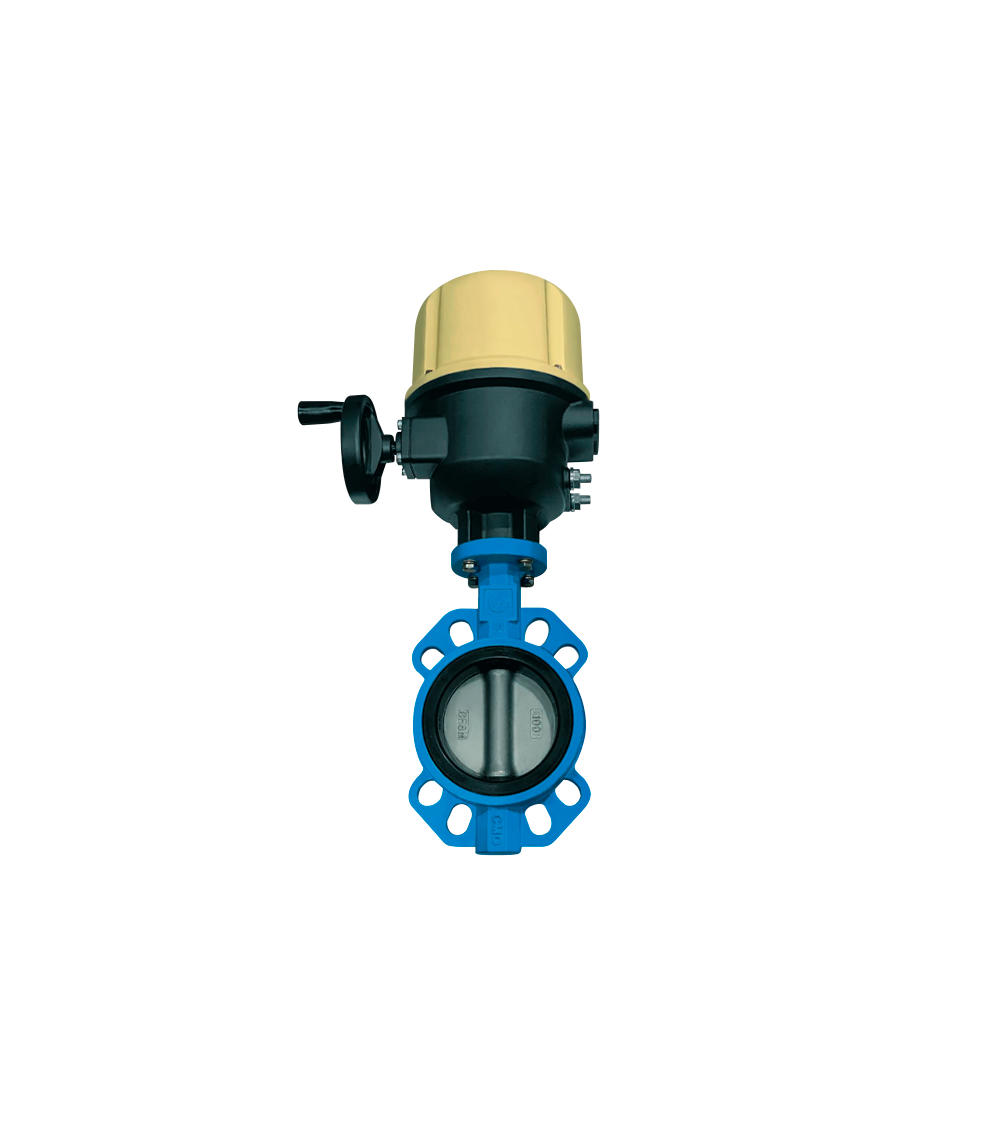

Wafer type butterfly valve with three phase electric actuator

Wafer butterfly valve, for water supply, pumping, drinking water supply, waste water treatment and pumping... Low pressure drop. 100% watertight. Bidirectional flow. No gaskets required for installation. Stainless steel screws. Disc in GJS400/CF8M. Seat in EPDM. Shaft in stainless steel AISI 420. Body in ductile iron GJS-400-15. EPDM O-rings. Working pressure: PN10/16 - ANSI150. Working temperature between -10°C and 120°C. Face to face distance EN 558-1 series 20.

NBR seat to consult.

REFERENCESIZE
21A.040.1ET DN 40
21A.050.1ET DN 50
21A.065.1ET DN 65
21A.080.1ET DN 80
21A.100.1ET DN 100
21A.125.1ET DN 125
21A.150.1ET DN 150
21A.200.1ET DN 200
21A.250.1ET DN 250
21A.300.1ET DN 300
21A.350.1ET DN 350
21A.400.1ET DN 400
21A.450.1ET DN 450
21A.500.1ET DN 500
21A.600.1ET DN 600
21A.700.1ET DN 700
21A.800.1ET DN 800
21A.900.1ET DN 900
21A.1000.1ET DN 1000
21A.1200.1ET DN 1200
Size: DN40
Disc: GJS-400
Quantity
