TECHNICAL DATA — Wafer type butterfly valve (REF. 2103) with electric actuator. Body in cast iron EN-GJL-200 (GG-20) for mounting between ANSI 150 and EN 1092 PN10/16 flanges. EPDM elastomer. Ductile cast iron disc EN-GJS-400 (GGG-40). Actuator mounting flange according to ISO 5211. Length between faces according to UNE EN 558-1 series 20 (DIN 3202 K1). Epoxy paint coating. Lever up to 10", manual reducer from 12". Maximum working pressure: 16 bar up to 12", 10 bar from 14". Working temperature: -20ºC +120ºC. Three-phase servomotor (3-400 V), different voltage on request.

**REFERENCE** **SIZE** **ACTUATOR TYPE** **WEIGHT**
5633 13 58 5" GE-010 15.75 kg
5633 14 59 6" GE-015 26.50 kg
5633 16 55 8" GE-025 31.90 kg
5633 18 56 10" GE-035 39.50 kg
5633 20 62 12" GE-050 43.70 kg
5633 22 57 14" GE-080 86 kg
5633 24 60 16" GE-110 107 kg
5633 26 64 18" GE-150 183.50 kg
5633 28 61 20" GE-210 226.50 kg

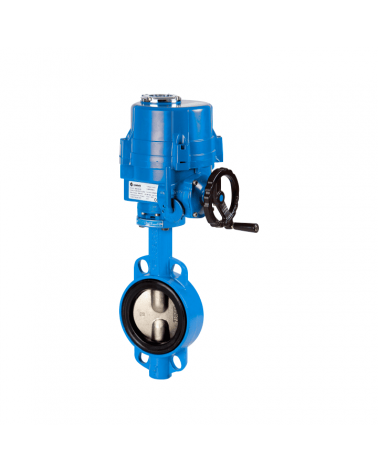

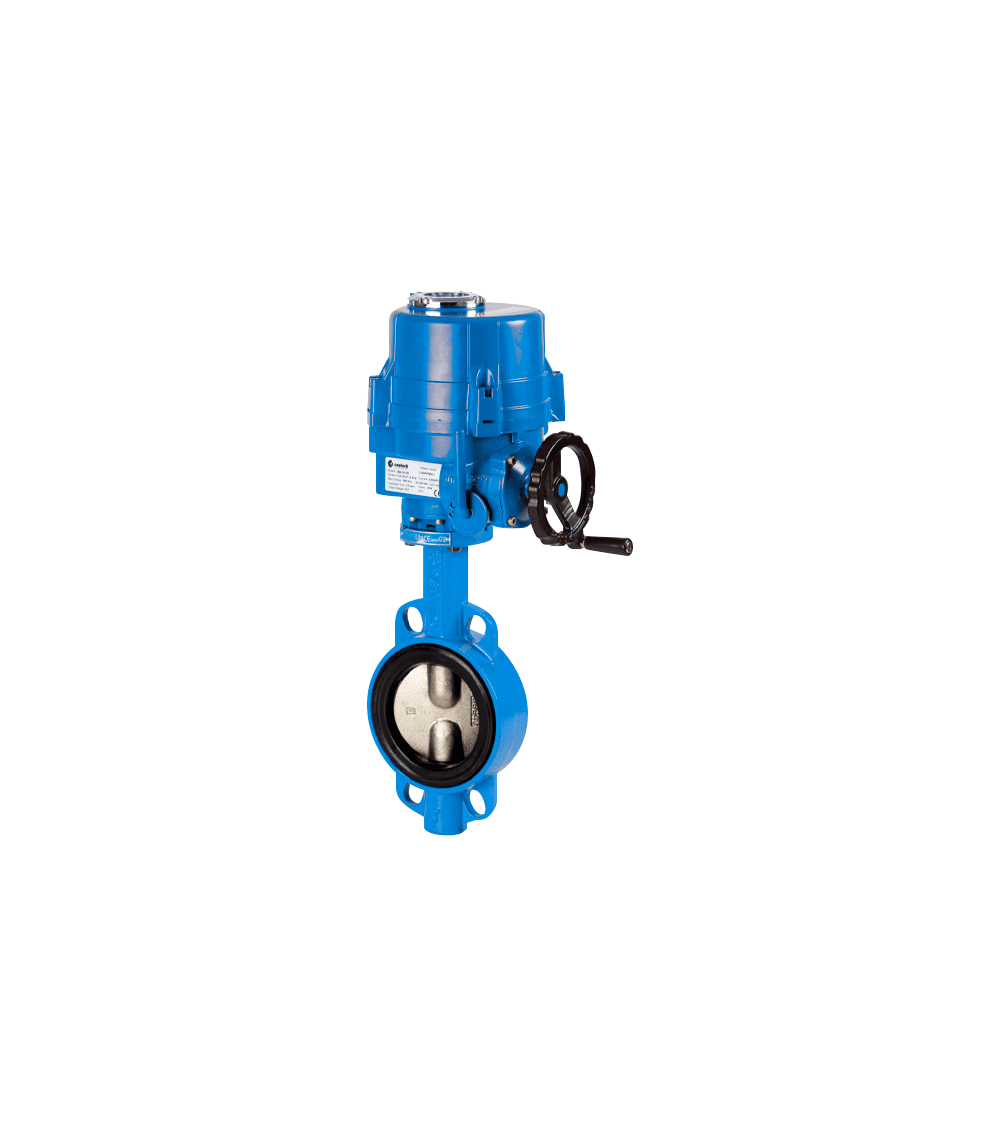

Wafer butterfly valve with three-phase electric actuator

Wafer type butterfly valve (REF. 2103) with electric actuator. Body in cast iron EN-GJL-200 (GG-20) for mounting between ANSI 150 and EN 1092 PN10/16 flanges. EPDM elastomer. Ductile cast iron disc EN-GJS-400 (GGG-40). Actuator mounting flange according to ISO 5211. Length between faces according to UNE EN 558-1 series 20 (DIN 3202 K1). Epoxy paint coating. Lever up to 10", manual reducer from 12". Maximum working pressure: 16 bar up to 12", 10 bar from 14". Working temperature: -20ºC +120ºC. Three-phase servomotor (3-400 V), different voltage on request.

REFERENCE	SIZE	ACTUATOR TYPE	WEIGHT
5633 13 58	5"	GE-010	15.75 kg
5633 14 59	6"	GE-015	26.50 kg
5633 16 55	8"	GE-025	31.90 kg
5633 18 56	10"	GE-035	39.50 kg
5633 20 62	12"	GE-050	43.70 kg
5633 22 57	14"	GE-080	86 kg
5633 24 60	16"	GE-110	107 kg
5633 26 64	18"	GE-150	183.50 kg
5633 28 61	20"	GE-210	226.50 kg
