2-piece full bore flanged ball valve (REF. 2529) with electric actuator. Flanged ends according to EN 1092. Stainless steel construction 1.4408 (CF8M). Length between faces according to EN 558 series 27. PTFE seats + 15% fiberglass (other material on request). FPM (Viton) O-ring on shaft. Non-detachable stem. Direct actuator mounting according to ISO 5211. Built-in locking system. Anti-static device. Anti-fire design. Maximum working pressure of 40 bar. Working temperature: -30ºC +180ºC. Three-phase servomotor (3-400 V), different voltage on request.
| REFERENCE | SIZE | ACTUATOR TYPE | WEIGHT |
|---|---|---|---|
| 5629 12 55 | 4" | GE-025 | 47.25 kg |
| 5629 13 56 | 5" | GE-035 | 81.45 kg |
| 5629 14 57 | 6" | GE-080 | 107.06 kg |

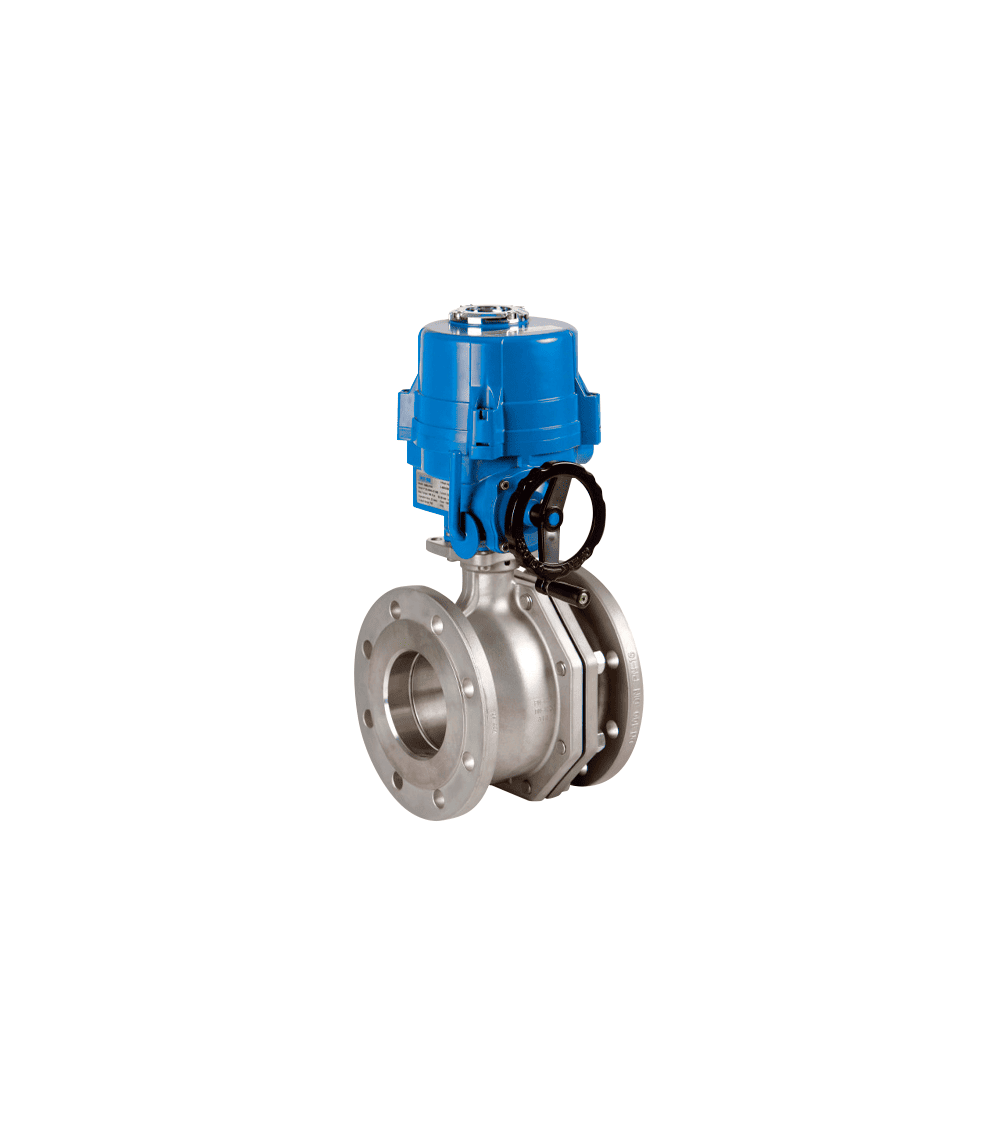

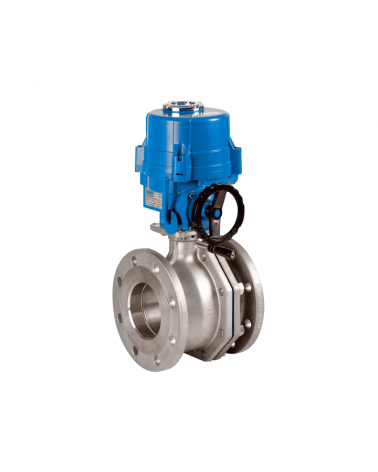

Flanged 2-piece ball valve with three-phase electric actuator
2-piece full bore flanged ball valve (REF. 2529) with electric actuator. Flanged ends according to EN 1092. Stainless steel construction 1.4408 (CF8M). Length between faces according to EN 558 series 27. PTFE seats + 15% fiberglass (other material on request). FPM (Viton) O-ring on shaft. Non-detachable stem. Direct actuator mounting according to ISO 5211. Built-in locking system. Anti-static device. Anti-fire design. Maximum working pressure of 40 bar. Working temperature: -30ºC +180ºC. Three-phase servomotor (3-400 V), different voltage on request.
| REFERENCE | SIZE | ACTUATOR TYPE | WEIGHT |
|---|---|---|---|
| 5629 12 55 | 4" | GE-025 | 47.25 kg |
| 5629 13 56 | 5" | GE-035 | 81.45 kg |
| 5629 14 57 | 6" | GE-080 | 107.06 kg |
€3,378.00
Tax excluded
