Solenoid valve

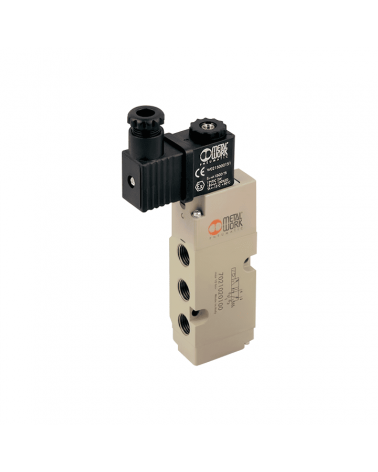

Pneumatic solenoid valve NAMUR monostable 4/2 NC (normally closed). To be installed directly on pneumatic rotary actuators. Coil 110 Vac 3.50 VA. Connector 22 mm. Operating pressure: 2,5 ÷ 10 bar. Minimum operating pressure (bar): 2,5. Operating temperature: -10 to +60ºC. Nominal diameter: 7,5 mm. Connection: G1/4’. Flow rate at 6 bar ΔP 0.5 bar (Nl/min): 750. Flow rate at 6 bar ΔP 1 bar (0.1 Mpa - 14.5 psi) (Nl/min): 1100. Power: 110 Vac. Voltage: 3.50 VA

Quantity
